Bruker CryoProbe System - Figure 3.5. Sliding the Cryoprobe into the Magnet

Mounting
CryoProbe Installation BRUKER 31 (93)
m.11 Check the orientation of the CryoProbe in the magnet: Its front must
be able to meet the He Transferline.
IMPORTANT: If cranked pillar braces are present in the magnet stand,
the CryoProbe must be centered in their gap at all times (see Figure
3.6.).

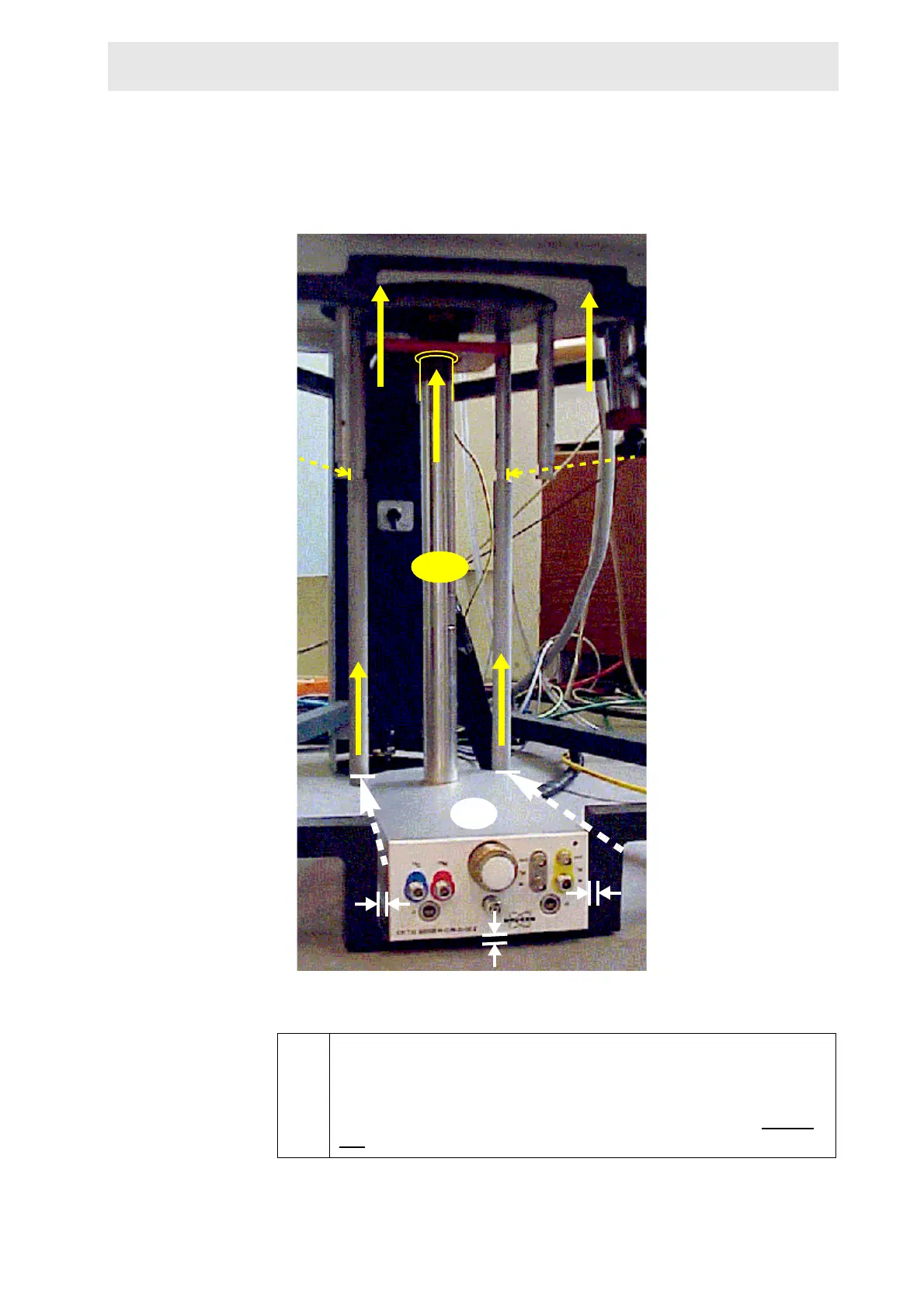

Figure 3.5. Sliding the CryoProbe into the magnet
m.10
m.9
