3.3 The External Fast Diffraction
Controller (FDC)
The FDC is a microprocessor unit for control
and data readout of the VÅNTEC-1 detector. It
is wired to the computer’s diffractometer control
data connection chain.
Features:
• LCD display (132 x 39 mm)
• Two serial interfaces
• Integrated multi-channel analyzer
• 19" unit
• Online display of the measured 2-theta dia-
gram on the LCD display
NOTE: FDCs for the D5000 and D500 may
need to have minor hardware modifications.
Contact Bruker Service—have the serial num-
ber of the FDC available.
r

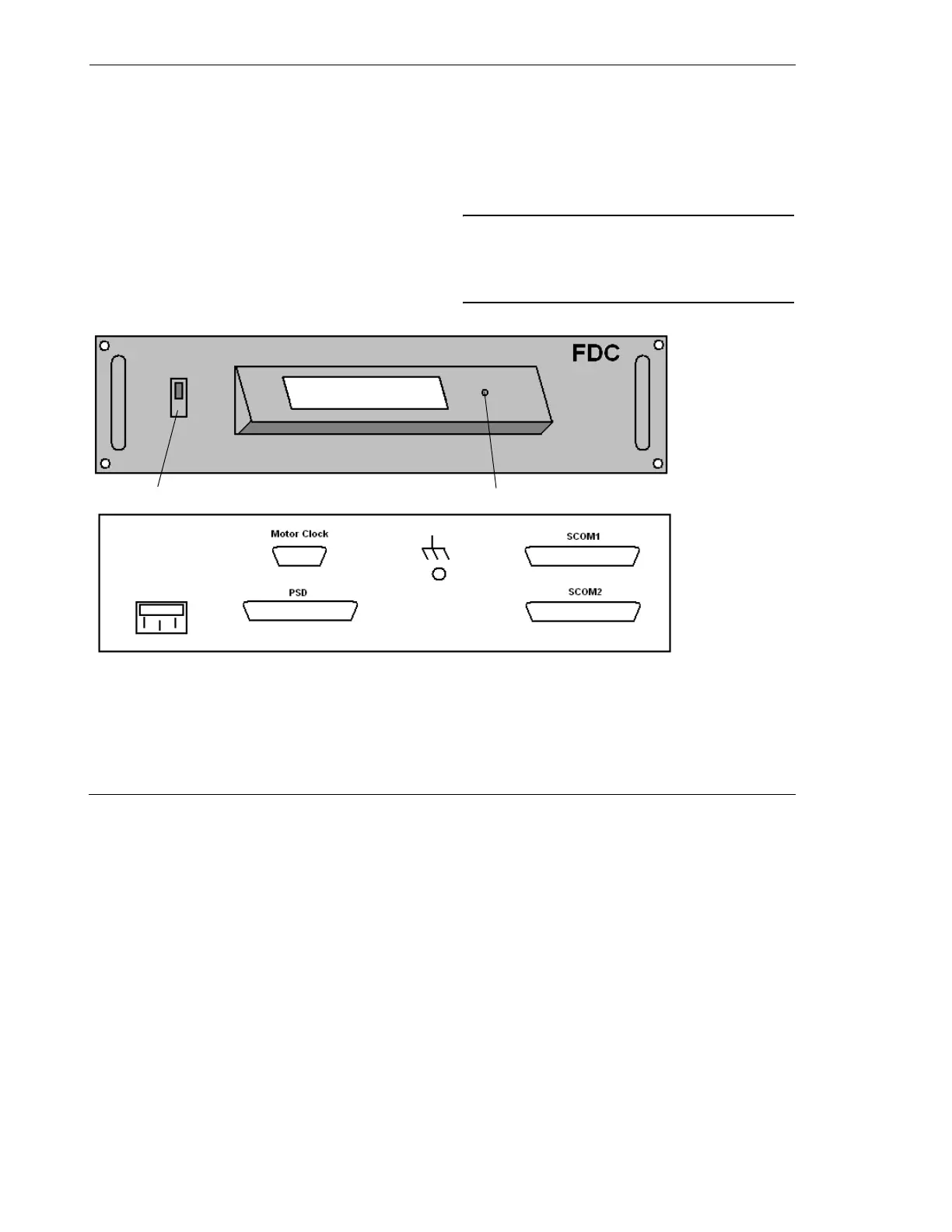

Figure 3.7 - FDC
back
front
Power switch Contrast control
