4.4.1 Mount the Rails
1. Additional rails (part number C79298-
A3242-C115), item C in Figure 4.1, must be
added to accommodate the FDC controller.
2. Relocate the existing rails, A in Figure 4.1,
for adequate airflow.
3. Mount the rails so there is a minimum space
of 1" between the detector and FDC control-
lers.
4. Mounting the rails requires removing the
front and rear columns of the system.
Remove the screws located at position B in
Figure 4.1 to detach the columns.

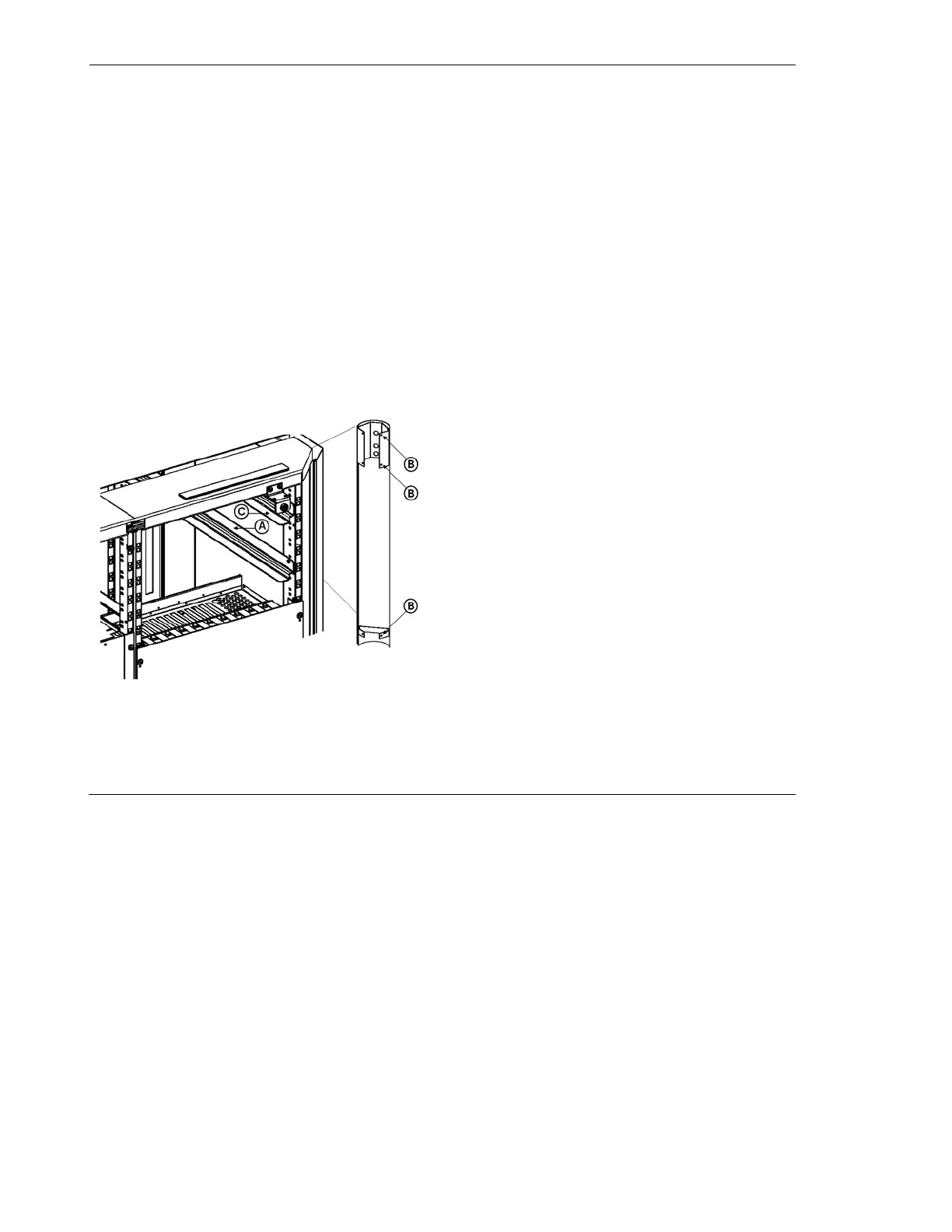

Figure 4.1 - Column and rail locations
