Hardware Installation for the D8 ADVANCE VÅNTEC-1 Detector User Manual
4 - 8 M88-E01072
4.4.4 Connect the Power Supply
Check that the detector controller power cord is
connected to X601 on the left side of the D8
enclosure. The FDC controller must also be
connected to the mains power.
Servicing Precautions—When the equipment is
connected to the mains supply, some terminals
of the mains distribution unit may be live.
Therefore, it is absolutely necessary to switch
off the external mains supply before opening the
housings. It is not sufficient to just press the on/
off power switch on the VÅNTEC-1 controller.
The mains supply must be switched off
externally on the customer’s side (wall socket or
external switch).
4.5 Hardware Installation (for detec-
tor controllers with an inte-
grated FDC)
4.5.1 Mount the Rails.
1. Relocate the existing rails, A in Figure 4.4,
for adequate airflow.
2. Mounting the rails requires removing the
front and rear columns of the system.
Remove the screws located at position B in
Figure 4.4 to detach the columns.

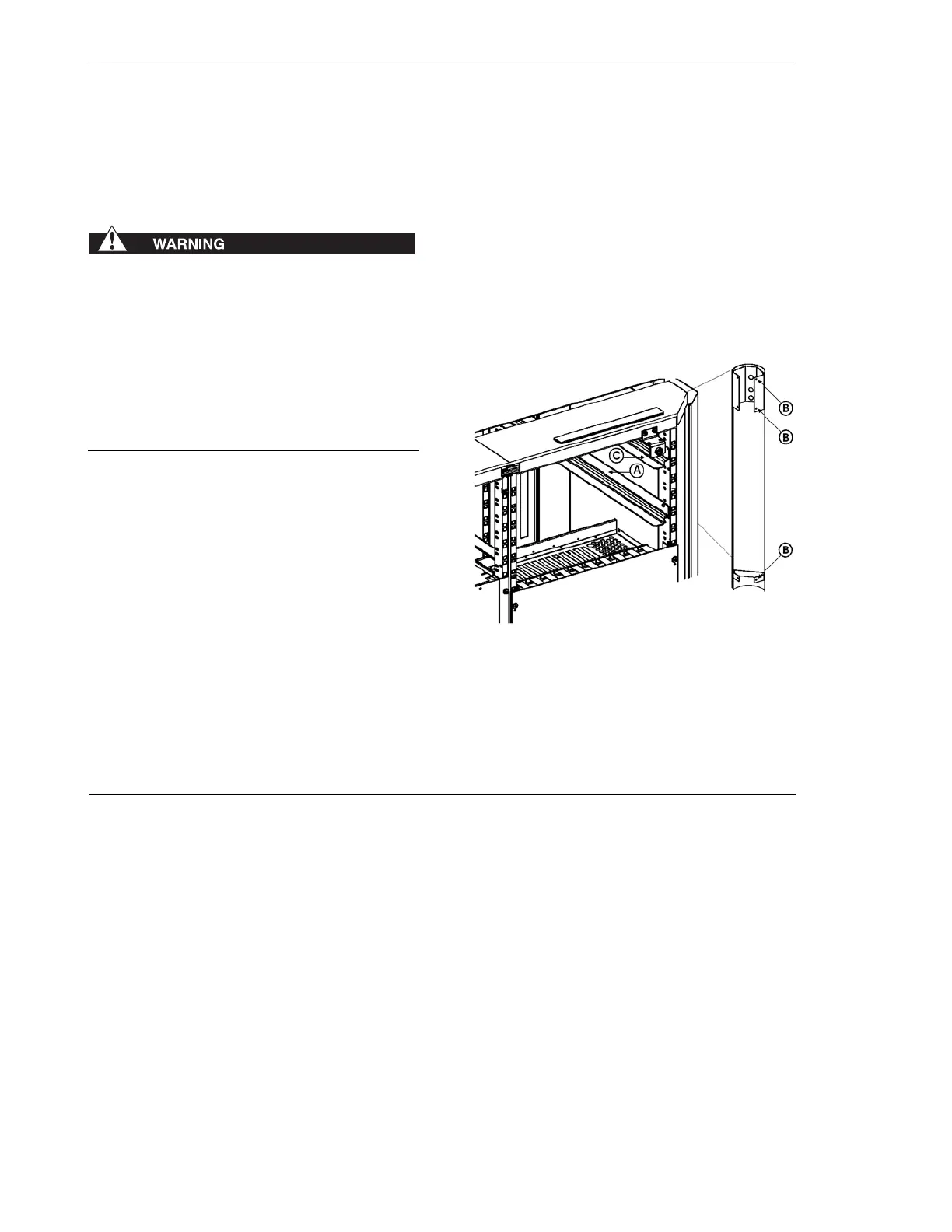

Figure 4.4 - Column and rail locations
