VÅNTEC-1 Detector User Manual Hardware Installation for the D8 ADVANCE
M88-E01072 4 - 31
4.8.4 Mount and Align the Radial Soller Slit
Use the following tools for this procedure:
• NIST SRM 1976 Corundum plate (for reflec-
tion) or NIST SRM 640c Silicon powder (for
transmission)
• Torx key set
• Allen key set
Mount the radial Soller slit:
1. Take off the kβ filter.
2. Attach the radial Soller slit onto the VÅN-
TEC-1 optics block using the two anti-scat-
ter slit screw holes shown in Figure 3.9.
3. Remove the anti-scatter slit assembly of the
detector optics and mount the radial Soller
slits with the two M3 screws. The alignment
pin of the detector optics block has to be
visible.

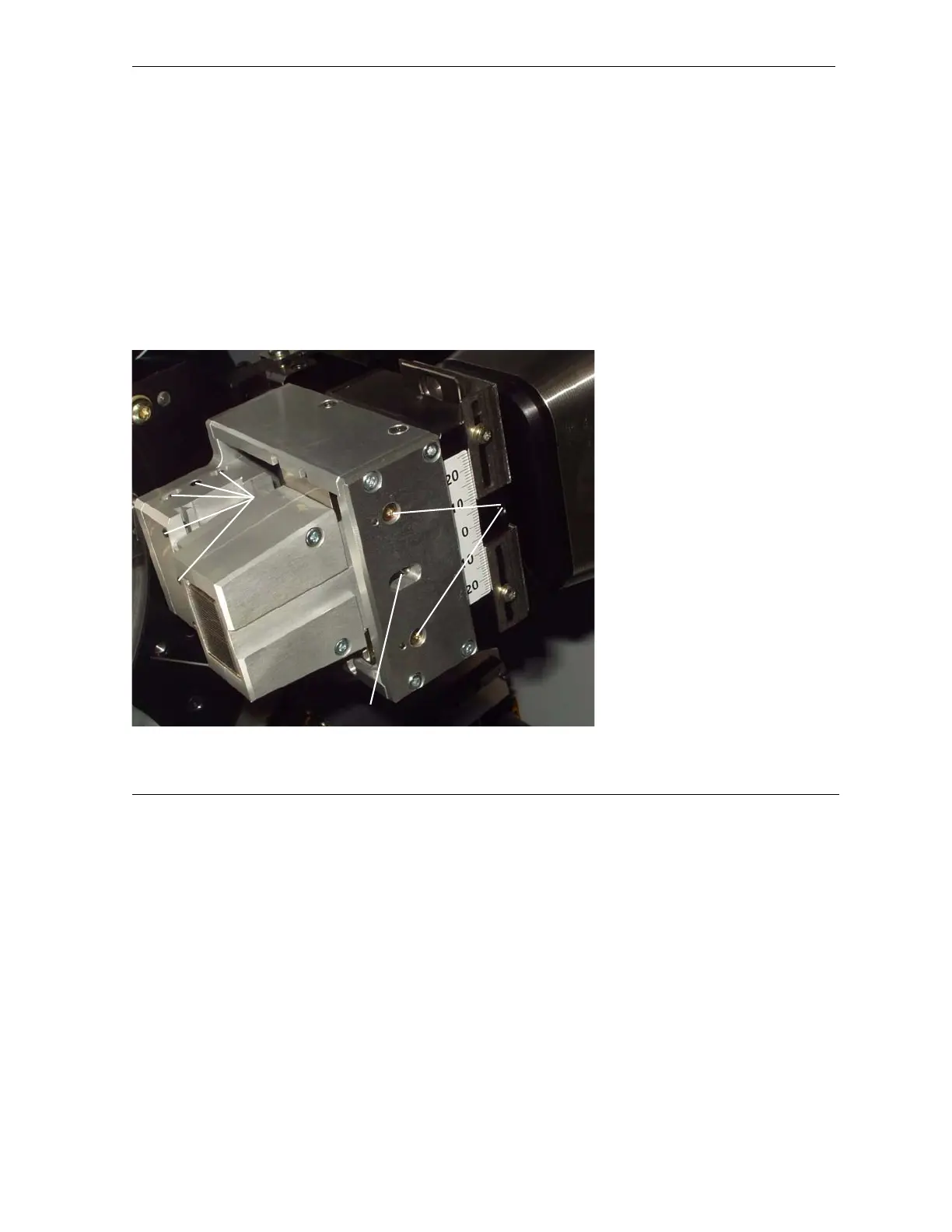

Figure 4.31 - Installation of the radial Soller slit
Fixing
screws
Alignment pin
Clamping
screws
