Machine Configuration (Creels, Rows, Columns, Bar)
SMART MATRIX - 3-20 -
As an alternative to the Rows/Columns configuration, it is possible to group the sensors on Bars and to
associate an ACT lamp with each Bar and/or to each Creel. In this case, it will be necessary to configure:
Bars Priority.

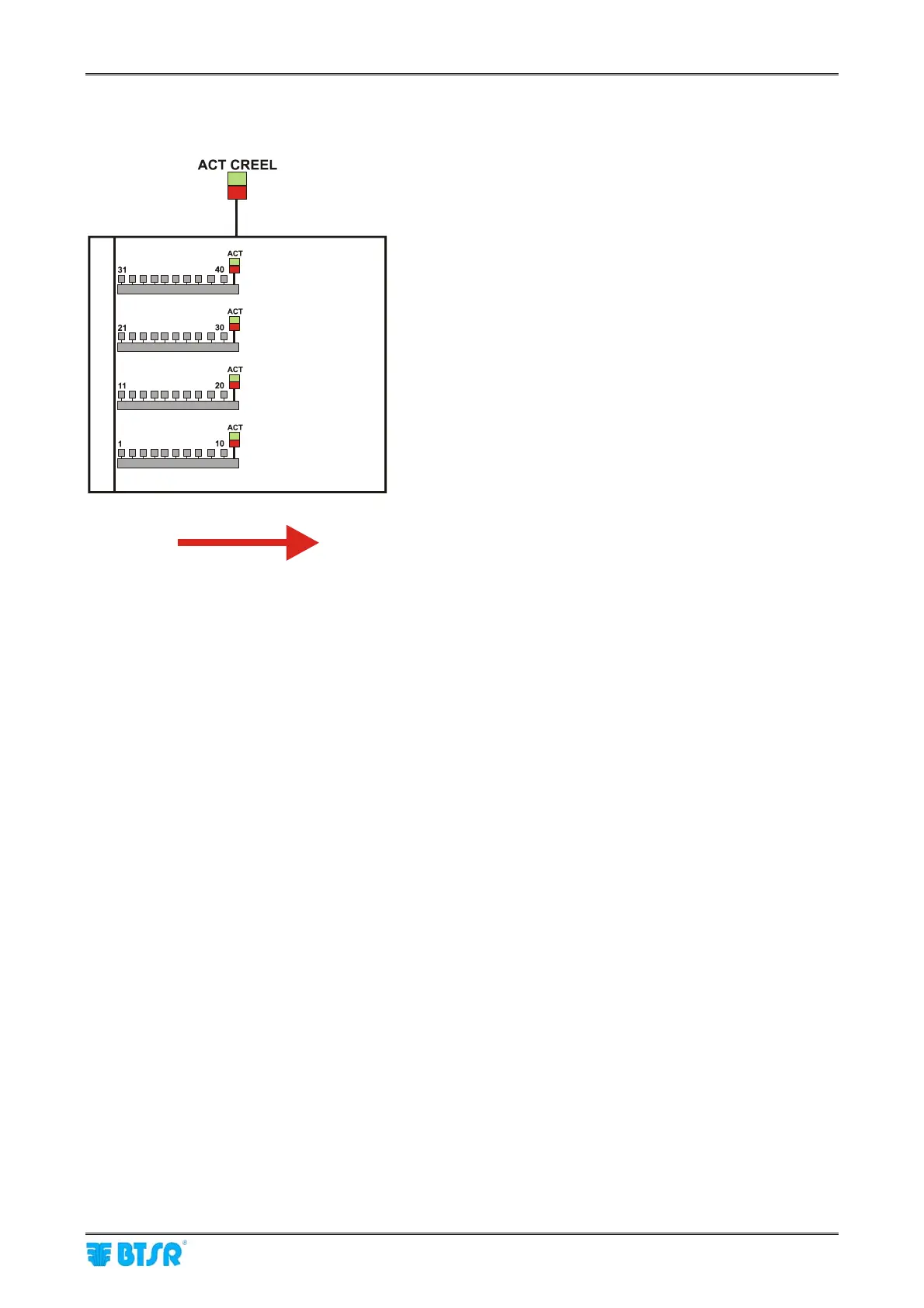

Example of creel with 40 sensors distributed along 4 bars of 10 sensors (Bars Priority).
ACT = Lamps associated with Bar
ACT CREEL = Lamp associated with Creel
The Creels can be configured in 2 different modes:
• STANDARD
• ADVANCED
STANDARD Mode: each creel can be configured only as a “Regular” matrix of rows/columns.
ADVANCED Mode: each creel can be configured with a variable number of sensors for each row (or
column).
For more details, please refer to Creel Mapping Section: Setup
→
Map
Bars Priority
