Machine Configuration (Creels, Rows, Columns, Bar)
SMART MATRIX - 3-19 -
Priority Example
Each individual creel can be configured independently from each other, by defining a “Virtual Array” of Rows
and Columns. A lamp (driven by an ACT/D module) can be associated with each Row or Column and/or with
each Creel.

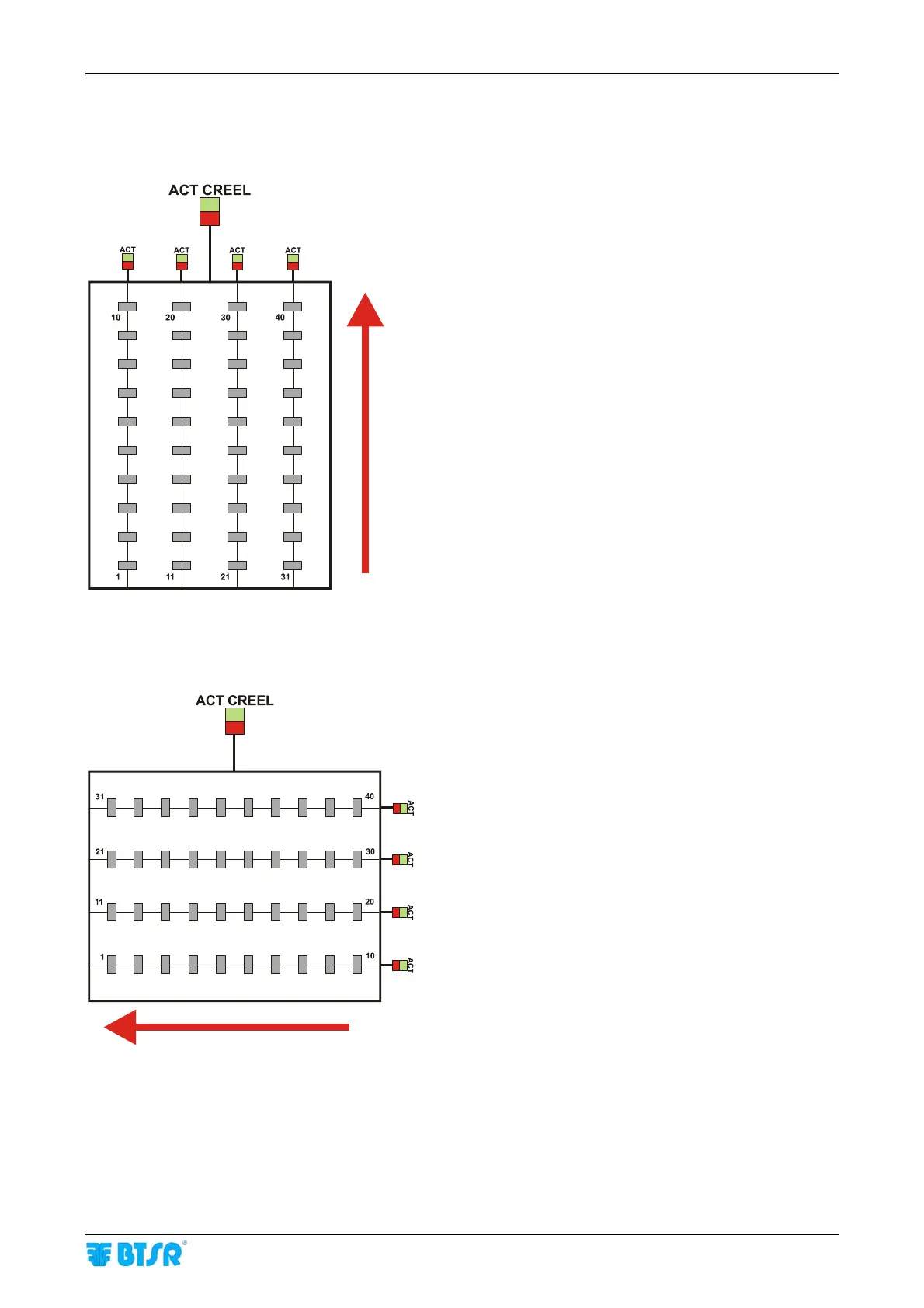

Example of creel with 40 sensors distributed along 4 columns of 10 sensors (Columns Priority).
ACT = Lamps associated with Columns
ACT CREEL = Lamp associated with Creel
Example of creel with 40 sensors distributed along 4 rows of 10 sensors (Rows Priority).
ACT = Lamps associated with Rows
ACT CREEL = Lamp associated with Creel
Columns Priority
Rows Priority
