Machine Configuration (Creels, Rows, Columns, Bar)
SMART MATRIX - 3-18 -

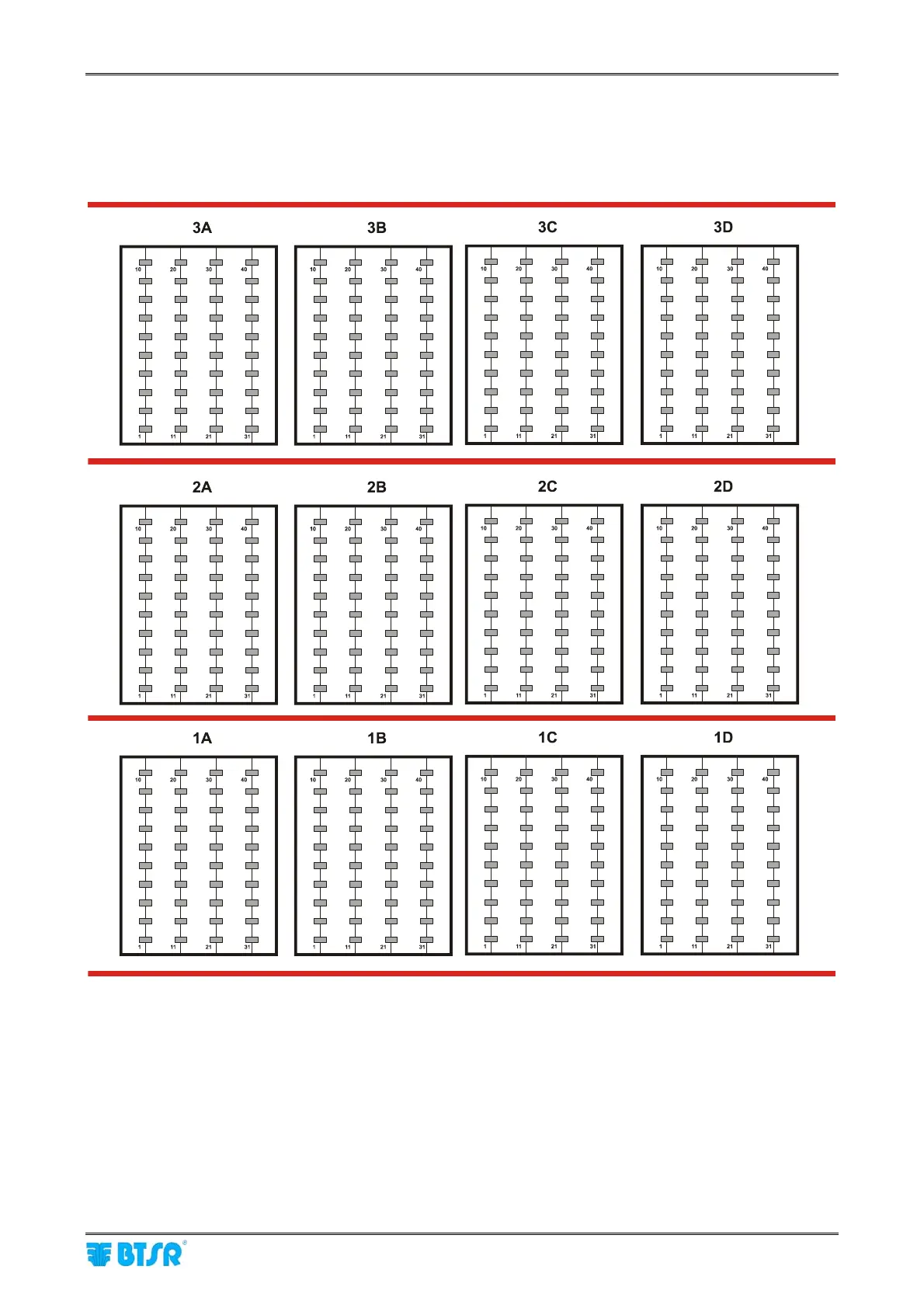

Example 4: Machine with 3 levels and 4 creels per level, each one with 40 sensors. In this case the
creels are identified as: 1A, 1B, 1C, 1D for the first level
2A, 2B, 2C, 2D for the second level
3A, 3B, 3C, 3D for the third level
THIRD LEVEL SECOND LEVEL FIRST LEVEL
