SMART MATRIX WARP Operation
SMART MATRIX - 2-7 -
Immediate Function Activation through the SMART MATRIX
Buttons

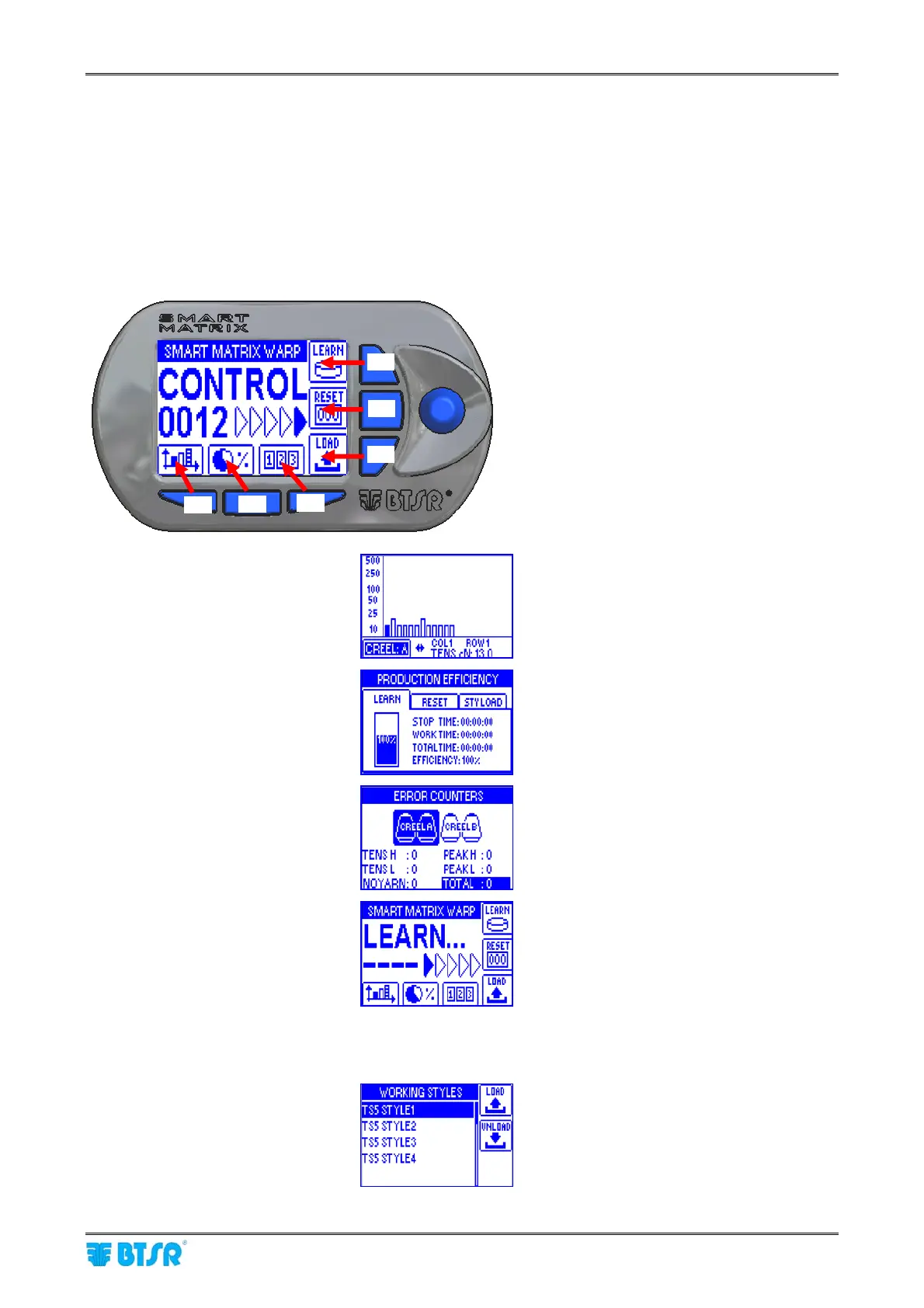

The 6 blue buttons (B1 ~ B6) allow you to directly activate some system functions without passing through
the menu items. Such functions are indicated by the icons associated with the buttons, as shown on the
following figure.
The detailed explanation of the various function will be provided on next paragraphs.
The following examples are only provided to summarize the Button → Function association.
Within some configuration/parameter setting functions, the B1 ~ B6 buttons may also perform a “shortcut”
function, which will be explained each time.
Immediate function activation buttons.
B1 = Sensors Histogram
B2 = Efficiency Data
B3 = Error Counters
B4 = LEARN Activation
B5 = Counter Reset
(no visualization provided)
B6 = Style Loading
B4
B5
B6
B3
B2
B1
To Next Page
