SMART MATRIX WARP Operation
SMART MATRIX - 2-8 -

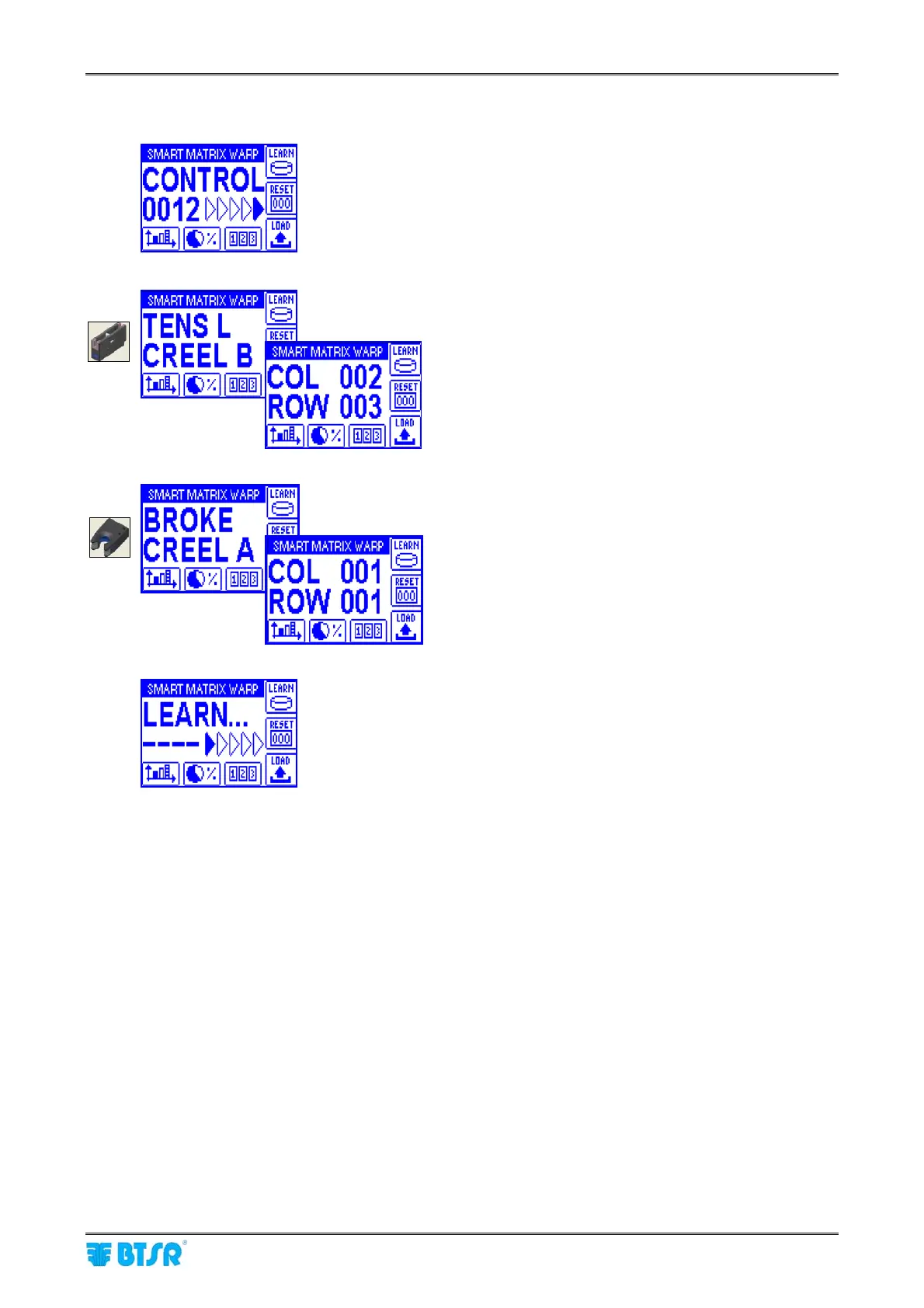

Interpretation of Operating Screens
• System working in Control status
• No errors detected!
• 0012 = 12 active sensors
• Tension Low error (TENS L) on CREEL B
• Coordinates of sensor that detected the error:
Column 2 (COL 002)
Row 3 (ROW 003)
• Yarn Broken Error (BROKE) on CREEL A
• Coordinates of sensor that detected the error:
Column 1 (COL 001)
Row 1 (ROW 001)
• Learning in progress!
At the end of the learning process, the number of detected sensors will
appear instead of ----.
 For more details about Error images, please refer to paragraph “SMART MATRIX Error Messages”
on Section 2.
