Lamps (ACT/D) Configuration and Numbering
SMART MATRIX - 2-19 -

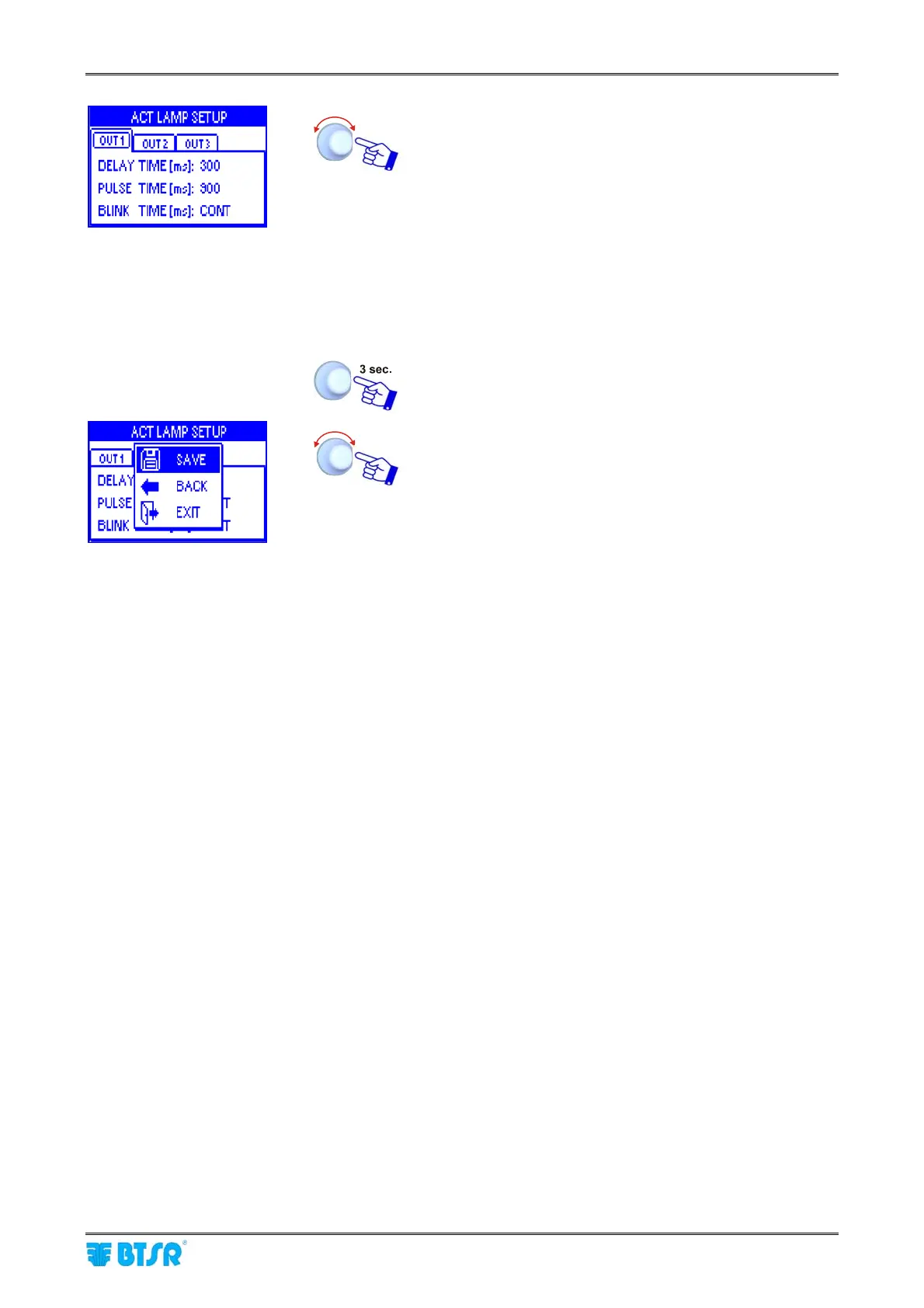

Configure the outputs of ACT/D modules
(OUT1, OUT2, OUT3).
Activation delay DELAY TIME – (ms)
Duration of activation pulse PULSE TIME – (ms)
Frequency of output activation BLINK TIME – (ms)
The outputs of ACT/D modules can be programmed
either as continuous signals (setting PULSE TIME
and BLINK TIME = CONT) or as pulse signals where
PULSE TIME indicates the pulse duration and BLINK
TIME indicates the on/off frequency.
To activate the save function.
SAVE to save the set values.
