8630 - 101
OPERATING THE PROCESS CONTROLLER

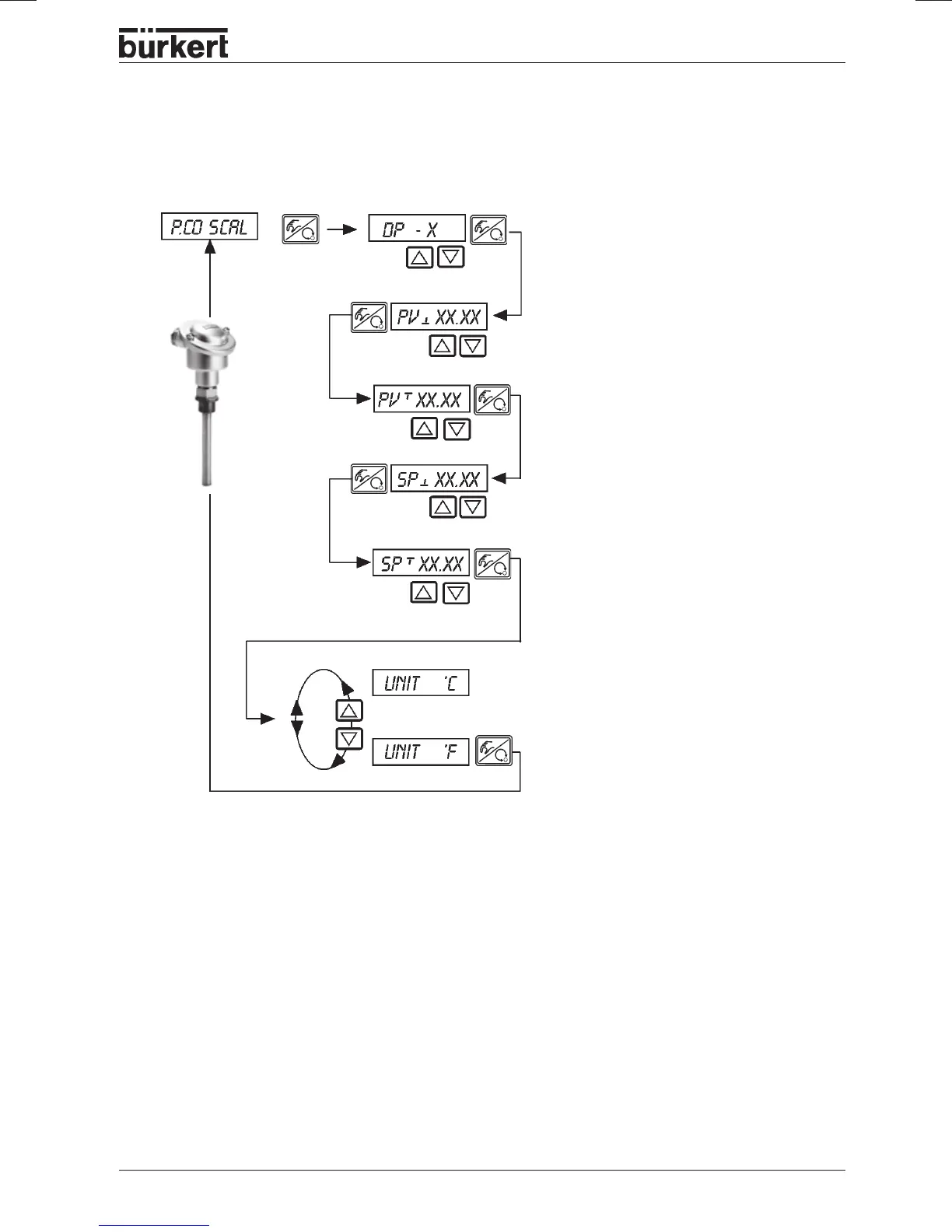

P.CO SCAL
Scaling the process controller on selection of Pt 100 input
(P.CO INP PT100)
Position of the decimal point
(Setting range: 0... 3)
Lower scaling value for external process
setpoint
-
the value is assigned to the
minimum current or voltage value of the
standard signal.
(**)
Upper scaling value for process setpoint -
the value is assigned to the maximum current or
voltage value of the standard signal.
(**)
Lower scaling value for process actual value
the value is entered in the unit that is
subeequently selected for the flow rate.
(*)
Upper scaling value for process actual value
-
the value is entered in the unit that is
subsequently selected for the flow rate.
(*)
Setting the desired unit of temperature
(**)
This setting is only active when
P.CO SETP / SETP EXT
is selected.
(*)
This setting determines the reference span for the dead-band of the process controller and the
analog feedback of the process actual value (option).
Unit °F
Unit °C
