Burkert 8630 - Page 69

8630 - 67
OPERATION AND CONTROLLER FUNCTIONS
Inputsignal
(INP)

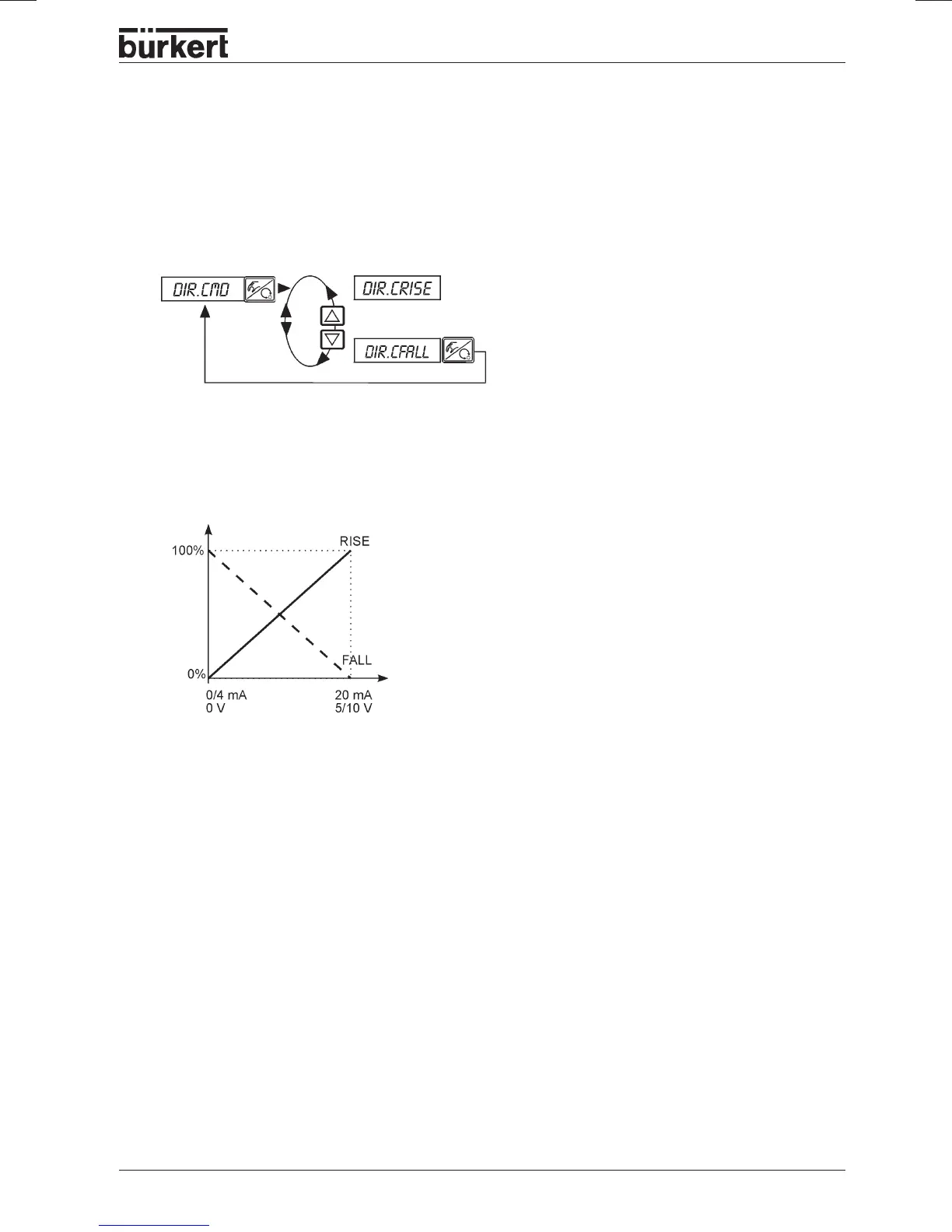

DIR.CMD
Sense of action or direction of the positioner setpoint
Factory setting: DIR.CRISE
With this supplementary function, you can set the sense of action between the input signal (INP) and
the setpoint position (CMD) of the actuator.
Direct sense of action
(e.g. 4 mA or 0 V
➔➔
➔➔
➔ 0 %,
20 mA or 5/10 V
➔➔
➔➔
➔ 100%)
Inverse sense of action
(e.g. 4 mA or 0 V
➔➔
➔➔
➔ 100%,
20 mA or 5/10 V
➔➔
➔➔
➔ 0%)
Setpoint
position
(CMD)
