OPERATION AND CONTROLLER FUNCTIONS

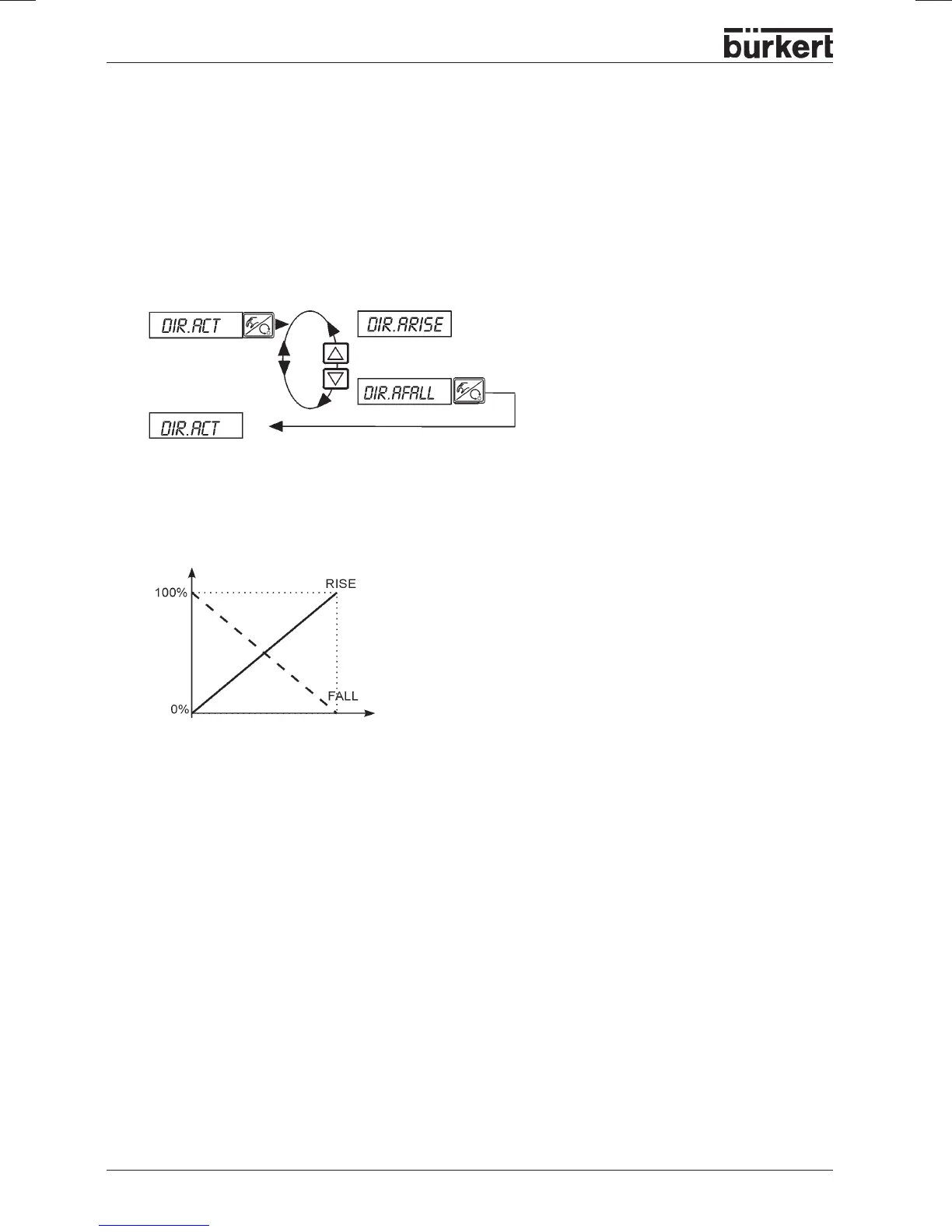

DIR.ACT
Sense of action or direction of the actuator
Factory setting: DIR.ARISE
With this supplementary function, you can set the sense of action between the state of pressurization of
the actuator and the actual position (POS).
Direct sense of action
(exhausted
➔➔
➔➔
➔ 0 %; pressurized
➔➔
➔➔
➔ 100 %)
Inverse Wirkungsrichtung
(entlüftet
➔➔
➔➔
➔ 100 %; belüftet
➔➔
➔➔
➔ 0 %)
State of
pressurization
Pressurized
Exhausted
Actual
position
(POS)
