Burkert 8630 - Page 82

80 - 8630
OPERATION AND CONTROLLER FUNCTIONS

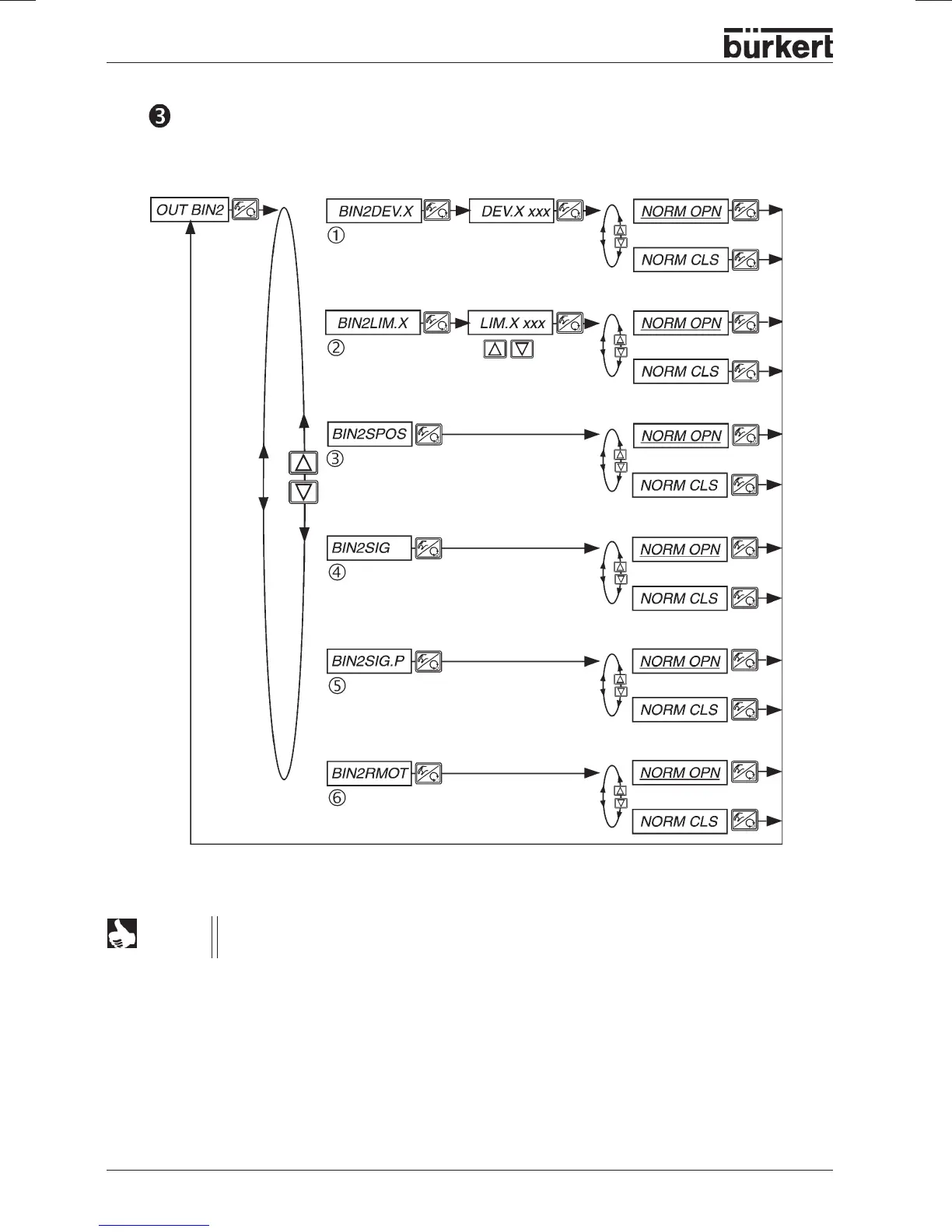

OUT BIN2 - Configuring binary output 2
Permissible actuating signal *
Limit position
NOTE
NORM CLS (NC) "Normally Closed" output, in switched state low (≅ 0 V)
NORM OPN (NO) "Normally Open" output, in switched state high (≅ 24 V)
