8630 - 79
OPERATION AND CONTROLLER FUNCTIONS
➀➀
➀➀
➀
BIN1 DEV.X
Selection: alarm output for too great an actuation signal from the positioner
*
The permissible actuating signal
DEV.X XXX
shall not be smaller than dead band.
➁➁
➁➁
➁
BIN1 LIM.X
Selection: binary position output
LIM.X XXX
- limit position
➂➂
➂➂
➂
BIN1 SPOS
Selection: actuator in safety position
④④
④④
④
BIN1 SIG
Selection: error message setpoint signal
⑤⑤
⑤⑤
⑤
BIN1 SIG.P
Selection: error message process value signal
⑥⑥
⑥⑥
⑥
BIN1 RMOT
Selection: operating mode AUTOMATIC and EXTERNAL
Setpoint
activated

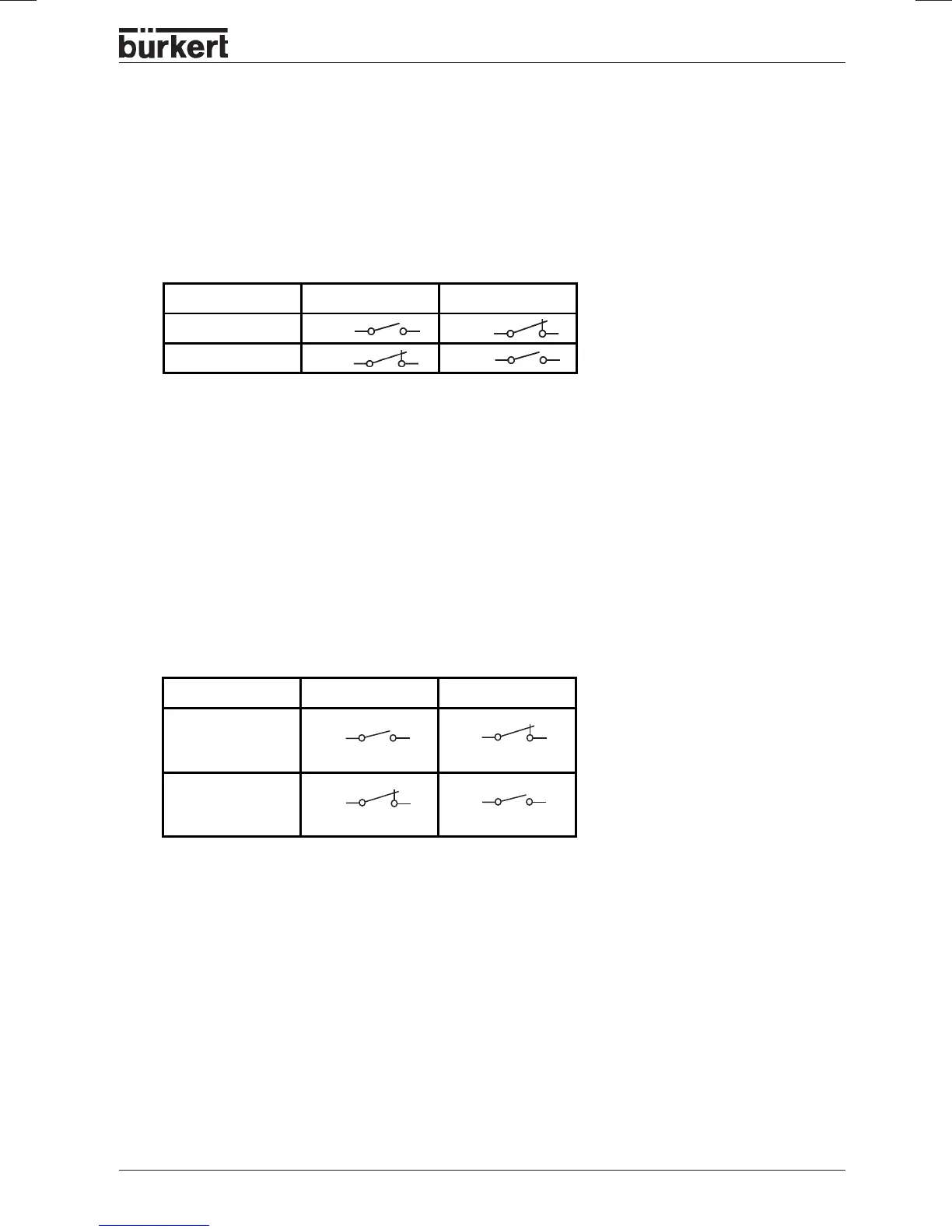

OUT BIN1 NORM OPN NORM CLS
POS > LIM 0 V 24 V
POS < LIM 24 V 0 V
OUT BIN1 NORM OPN NORM CLS
Operating mode
AUTO +
External set-value
0 V 24 V
Operating mode
MANUAL or
internal set-value
24 V 0 V
