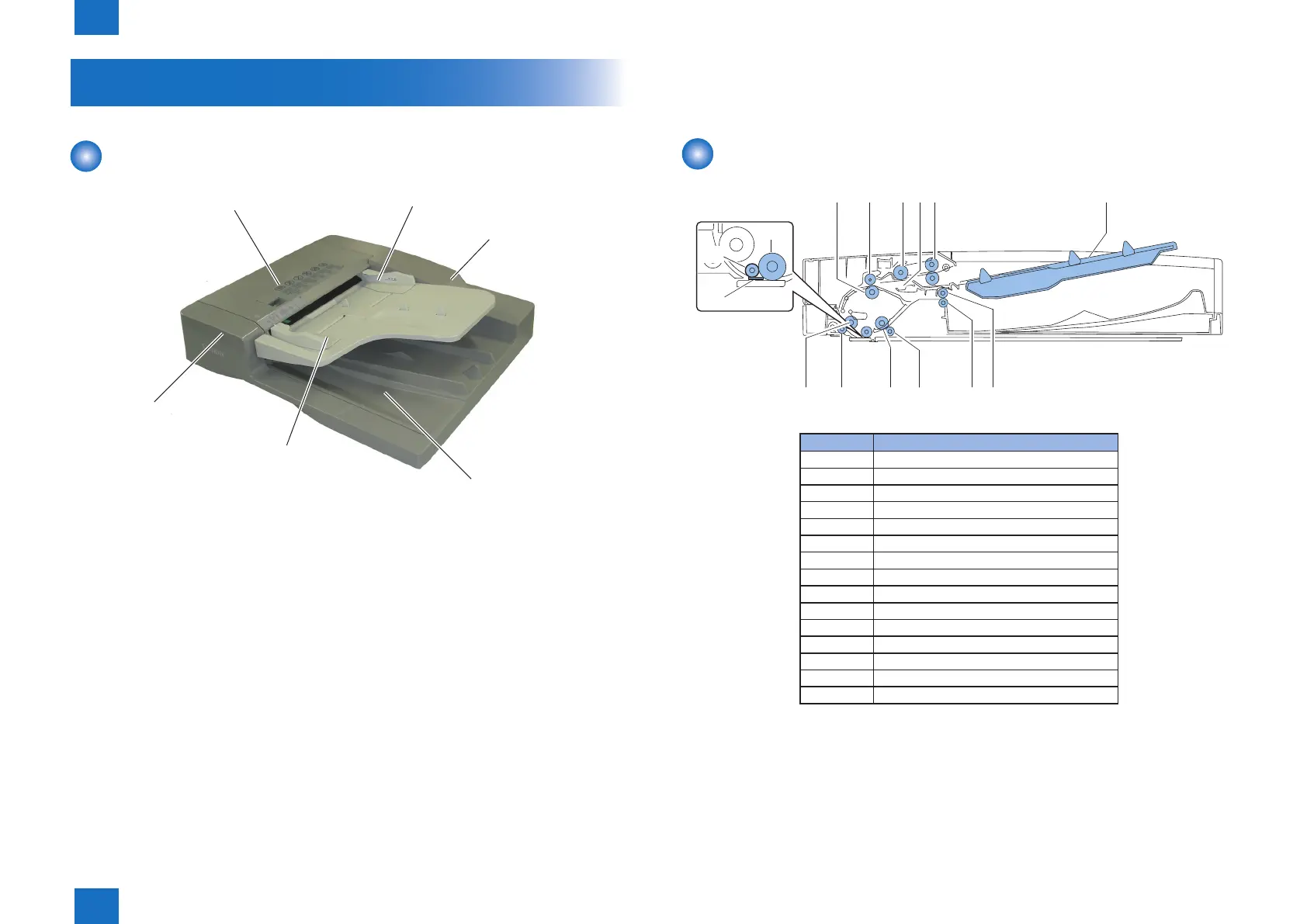

Names of Parts (DADF)
External View
Feeder Cover
Front Cover
Rear Cover
Document supply tray
Document delivery tray
Slide guide
F-1-6
Cross Section
[13]
[12]
[3] [5][4] [6]
[7][8][9][10][15] [14]
[1] [2]
[11]
No. Part name
[1] Lower registration roller
[2] Upper registration roller
[3] Feed roller
[4] Separation pad unit
[5] Pickup roller
[6] Document supply tray
[7] Upper delivery reversal roller
[8] Lower delivery reversal roller
[9] Read roller 2 (lower)
[10] Read roller 2 (upper)
[11] Platen roller
[12] White sheet
[13] Read roller
[14] Read roller 1 (lower)
[15] Read roller 1 (upper)
F-1-7
T-1-5
