Parts Replacement and Cleaning Procedure > List of Parts(DADF) > List of Sensors
Parts Replacement and Cleaning Procedure > List of Parts(DADF) > List of Sensors

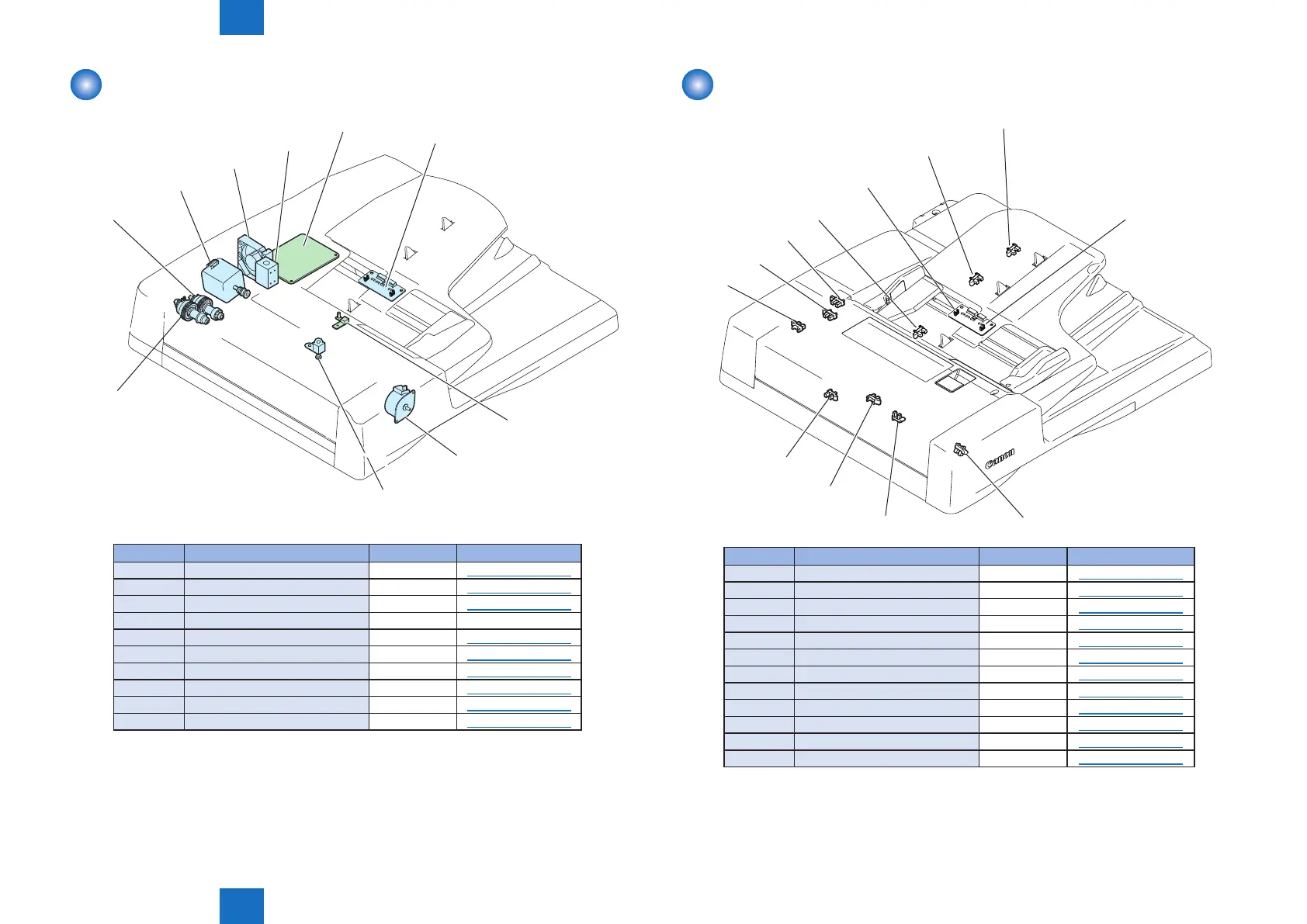

List of Clutchs, Solenoids, Motors, Fans, PCBs
M1
M2
CL1
CL2
SL2
FM1
SL1
PCB1
PCB3
PCB2
No. Part name Part number Reference
M1 ADF motor - Refer to page 4-19
M2 Release motor -
Refer to page 4-19
SL1 Pressurization solenoid -
Refer to page 4-20
SL2 Stamp solenoid - -
CL1 Pickup clutch -
Refer to page 4-20
CL2 Registration clutch -
Refer to page 4-20
PCB1 ADF driver PCB -
Refer to page 4-21
PCB2 TRAY PCB -
Refer to page 4-29
PCB3 LED PCB -
Refer to page 4-22
FM1 Fan -
Refer to page 4-22
F-4-21
T-4-8
List of Sensors
SR7
SR9
SR8
PS1(PCB2)
PS2(PCB2)
SR1
SR11
SR2
SR3
SR4
SR5
SR6
No. Part name Part number Reference
SR1 Registration sensor - Refer to page 4-23
SR2 Read sensor -
Refer to page 4-23
SR3 Delivery reversal sensor -
Refer to page 4-23
SR4 Timing sensor -
Refer to page 4-27
SR5 Document set sensor -
Refer to page 4-27
SR6 Cover open/closed sensor -
Refer to page 4-27
SR7 Last document detection sensor -
Refer to page 4-27
SR8 Document length sensor 2 -
Refer to page 4-28
SR9 Document length sensor 1 -
Refer to page 4-28
SR11 Release motor HP sensor -
Refer to page 4-28
PS1 Document width sensor 2 -
Refer to page 4-29
PS2 Document width sensor 1 -
Refer to page 4-29
F-4-22
T-4-9
