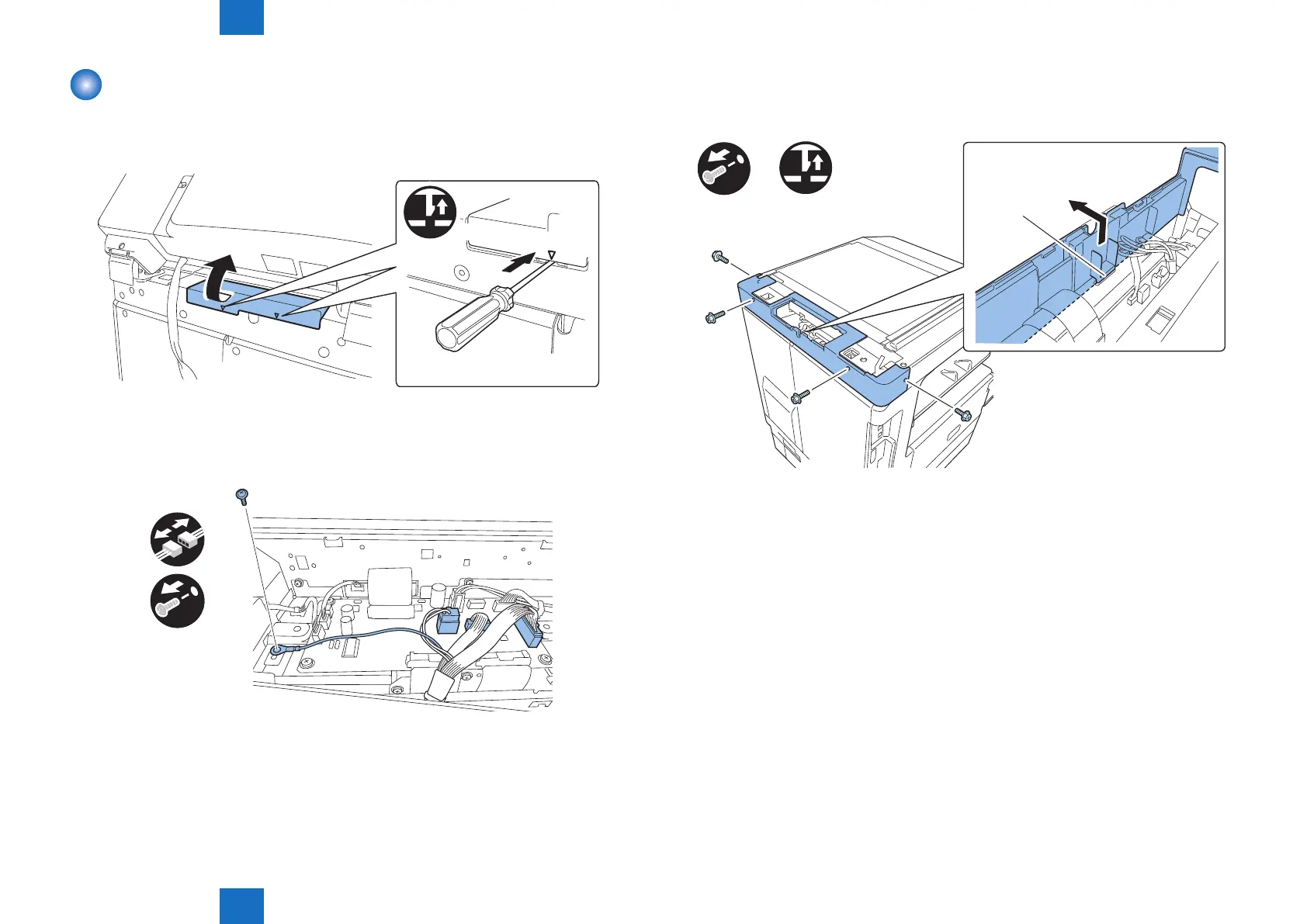

Removing the Reader Rear Cover
1) Open the platen cover (ADF/platen board cover).
2) Remove the reader rear (small) cover.
• 2 claws
x2
3) Remove the ADF power cable.
• 3 connectors
• 1 screw (RS tightening; M3)
x3
x1
F-4-6
F-4-7
4) Remove the reader rear cover.
• 4 screws (RS tightening; M3)
• 1 claw
x4
Claw
F-4-8
