Canon D1 - Removing the Pressurization Solenoid(SL1); Pickup Clutch;Registration Clutch(CL1;CL2)

4
4
4-20
4-20
Parts Replacement and Cleaning Procedure > Clutch Solenoid Motor Fan PCB (DADF) > Pickup Clutch/Registration Clutch(CL1/CL2)
Parts Replacement and Cleaning Procedure > Clutch Solenoid Motor Fan PCB (DADF) > Pickup Clutch/Registration Clutch(CL1/CL2)

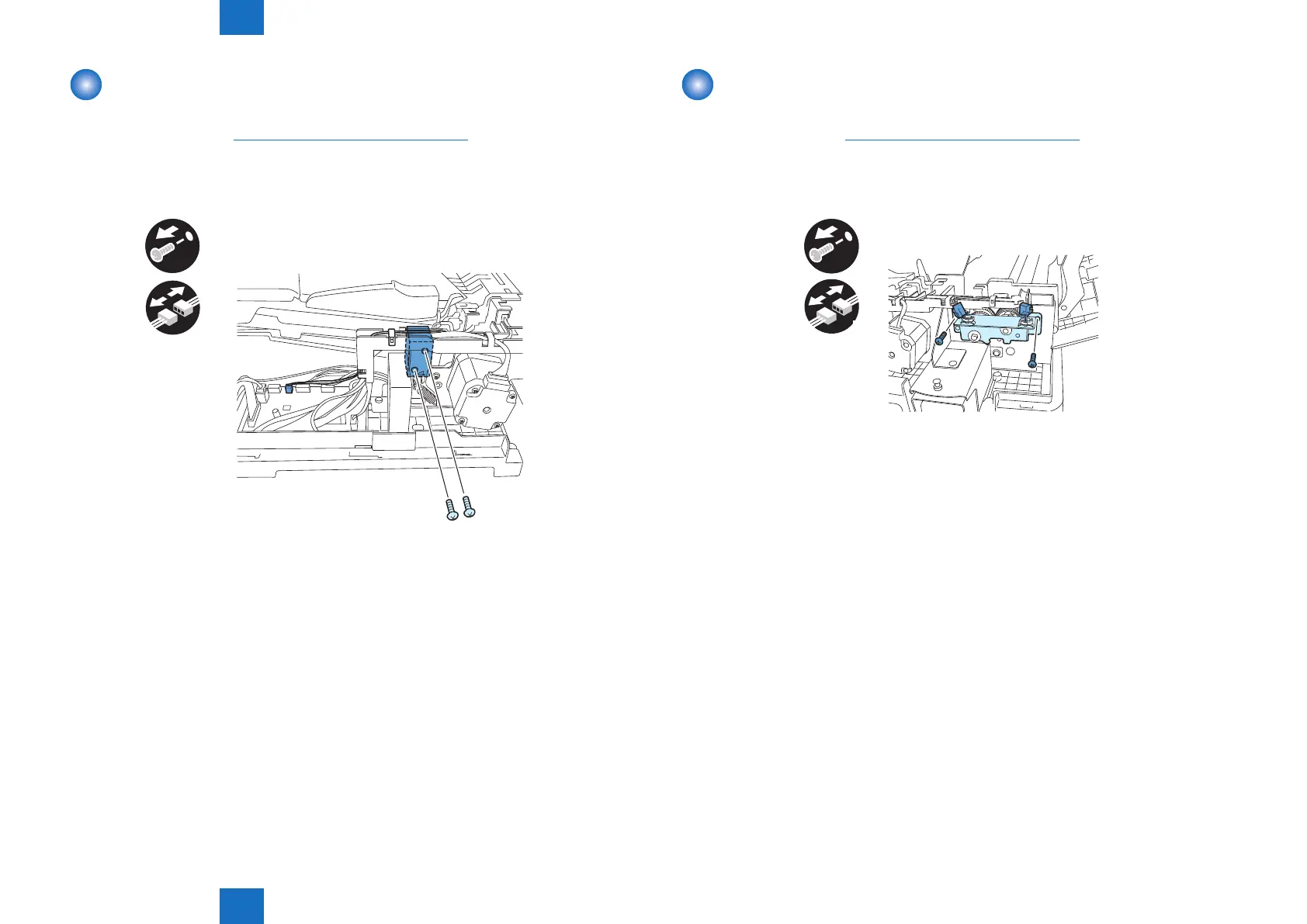

Removing the Pressurization Solenoid(SL1)
1) Open the feeder cover.
2) Remove the rear cover.("Removing the Rear Cover"(page 4-13).)
3) Remove the pressurization solenoid
- Connector 1 pc.
- Screw 2 pcs.
x2
x1
F-4-41
Pickup Clutch
/
Registration Clutch(CL1
/
CL2)
1) Open the feeder cover.
2) Remove the rear cover.("Removing the Rear Cover"(page 4-13).)
3) Remove the clutch support plate
- Connector 2 pcs.
- Screw 2 pcs.
x2
x2
F-4-42
