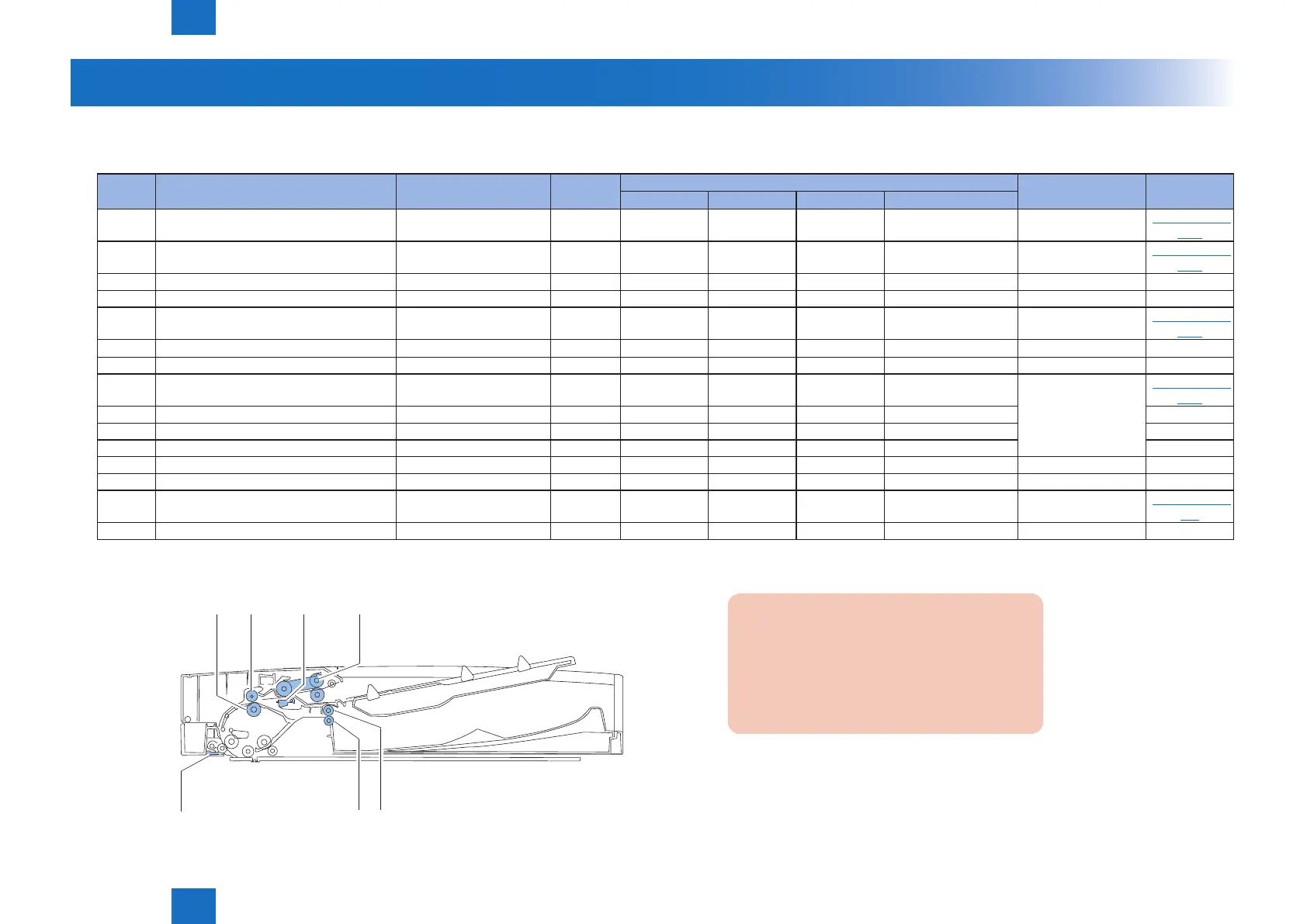

List of Work for Scheduled Servicing (DADF)
As for the user maintenance point as well, clean it at the time of the periodic maintenance.
PR:Replacement (Periodically replaced parts) CR:Replacement (consumable parts) CL:Cleaning LU:Lubrication AD:Adjustment CH:Maintenance
As of June 2009
No. Part name Part number Qty Work interval Remarks Reference
40,000 sheets 80,000 sheets Timely Other
[1] Pickup roller unit
(Pickup roller, Separation roller)
FM3-6892 1 CL CR Refer to page
4-16
[2] Separation pad FL3-5538 1 CL CR
Refer to page
4-17
[3] Upper registration roller 1 CL -
[4] Lower registration roller 1 CL -
[5] Feed guide (dust collection tape) FL3-2942 1 CR
Refer to page
4-18
[6] Upper delivery reversal roller 1 CL -
[7] Lower delivery reversal roller 1 CL -
Stamp FB5-9410 1 CR (7,000 times) User Maintenance
Refer to page
4-17
White plate (pressure plate) 1 CL -
Platen roller 1 CL -
White sheet 1 CL -
Various rollers/driven rollers - - CL -
Various scrapers - - CL -
DADF height adjustment - - AD
Refer to page
5-3
Stream reading glass (reader unit) LU Apply silicon oil.
• The number of document sheets that have been used for the DADF actually can be checked in the service mode of the host machine.
COPIER>COUNTER>FEEDER>FEED
[1][2]
[6][7]
[4] [3]
[5]
Caution:
Use only the specied solvents and oil.Black
streaks can appear due to the paper dust and
other foreign particles on the rollers, scrapers,
and other part. Clean these parts with care.
T-3-5
F-3-3
