Parts Replacement and Cleaning Procedure > List of Parts(DADF) > Consumable Parts Requiring Periodic Replacement and Cleaning Points
Parts Replacement and Cleaning Procedure > List of Parts(DADF) > Consumable Parts Requiring Periodic Replacement and Cleaning Points

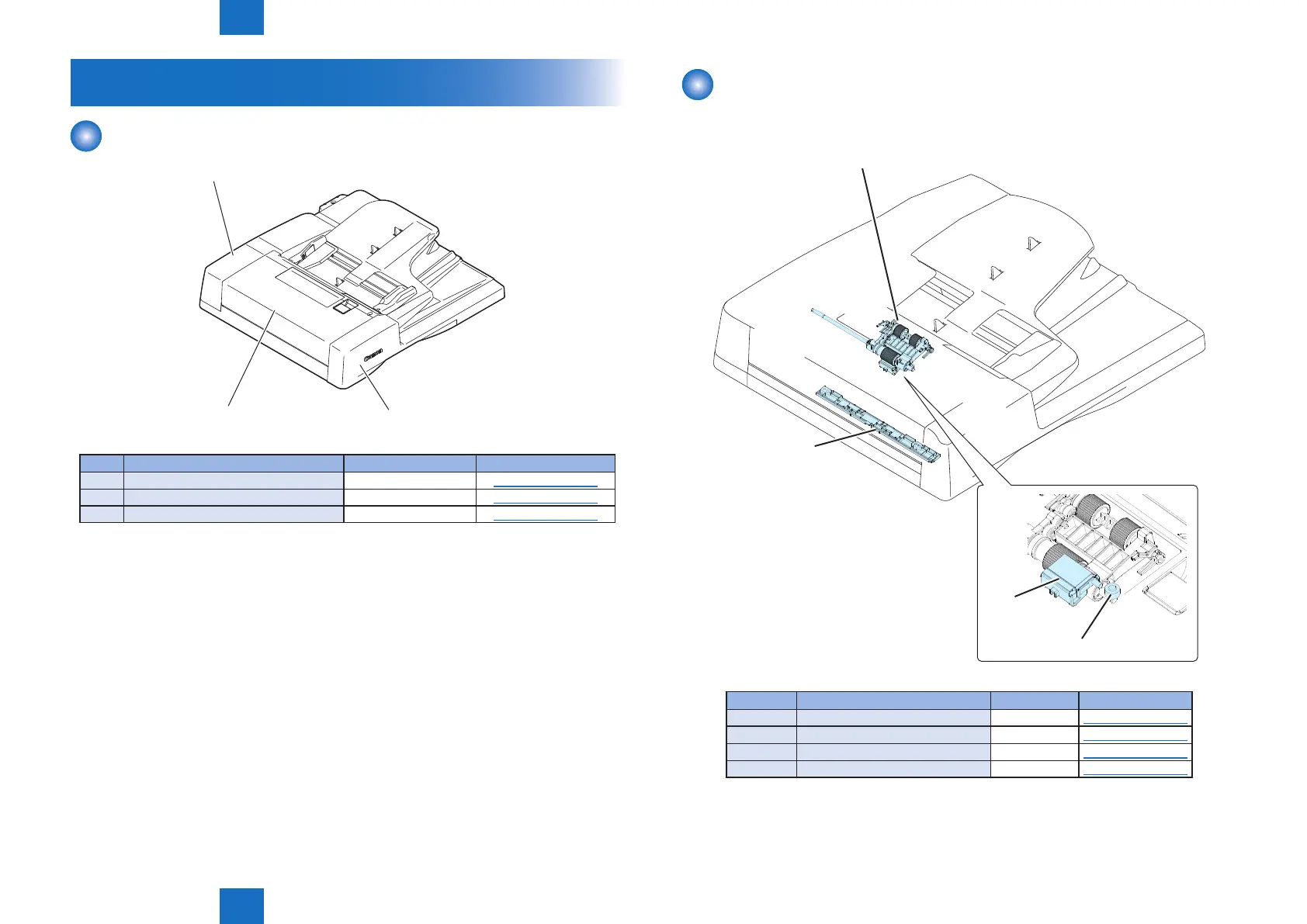

List of Parts(DADF)
External Covers
Rear cover
Front cover
Feeder cover
No. Part name Part number Reference
1 Front cover - Refer to page 4-13
2 Rear cover -
Refer to page 4-13
3 Feeder cover -
Refer to page 4-14
F-4-19
T-4-6
Consumable Parts Requiring Periodic Replacement
and Cleaning Points
[4]
[1]
[3]
[2]
No. Part name Part number Reference
1 Pickup roller unit FM3-6892 Refer to page 4-16
2 Separation pad FL3-5538
Refer to page 4-17
3 Stamp FB5-9410
Refer to page 4-17
4 Feed guide (dust collection tape) FL3-2942
Refer to page 4-18
F-4-20
T-4-7
