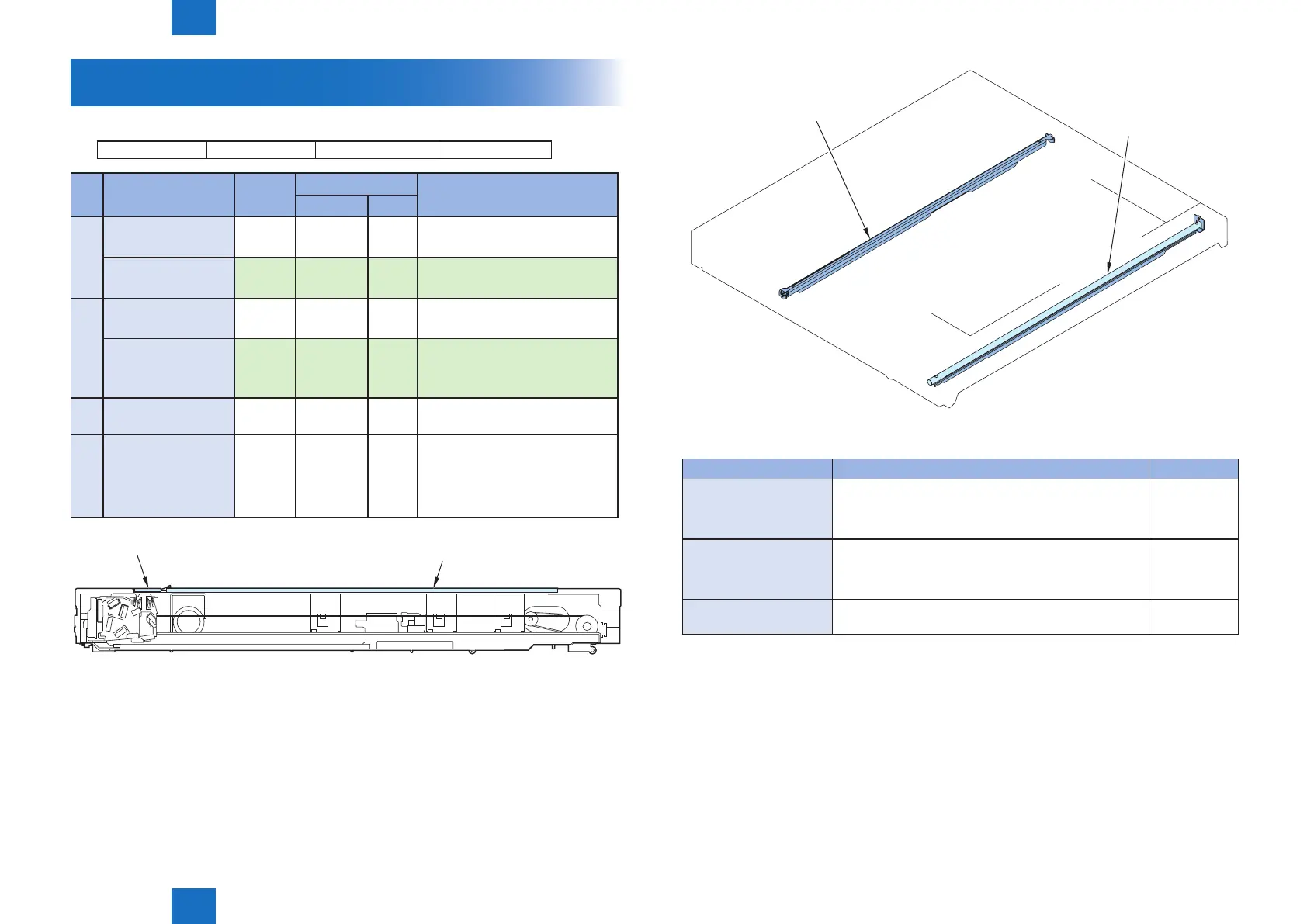

Periodic Servicing > Work of Service (Reader)
Periodic Servicing > Work of Service (Reader)
Work of Service (Reader)
■
List of Work for Scheduled Servicing
CL: Cleaning LU: Lubricate AD: Adjustment CH: Inspection
No. Parts name Number
Work Interval
Remarks
Installation timely
1
Copyboard glass
(Surface)
1 CL Item performed by user.
Copyboard glass
(Surface/Back)
1 CL Including the white plate
positioning of the glass surface.
2
Stream reading
glass (Surface)
1 CL Item performed by user.
Stream reading
glass
(Surface/Back)
1 CL Including the white plate
positioning of the glass surface.
3
Scanner rail / shaft
- CL, LU MOLYKOTE EM-50L Grease
Tool No:HY9-0007
4
Mirror in the CCD
unit
5 CL Open the CCD upper cover.
• 4 Screws
Creaning tool for No.5 Mirror is in
the Reader Unit.
Part No:FL3-3207
Stream reading glass
Copyboard glass
T-3-1
F-3-1
Scanner shaftScanner shaft
Scanner railScanner rail
■
Action to take when replacing parts
Part name Action Reference
CCD unit
• The values input of P-PRINT (Service mode)
• Platen board cover white level automatic adjustment
• ADF white level adjustment (This action is applicable
only when the DFDA is installed in the host machine.)
Copyboard glass
• White plate data adjustment
• Platen board cover white level automatic adjustment
• ADF white level adjustment (This action is applicable
only when the DFDA is installed in the host machine.)
Stream reading glass
• Platen board cover white level automatic adjustment
• ADF white level adjustment
■
Consumables
None.
■
Service precautions
None.
F-3-2
T-3-2
