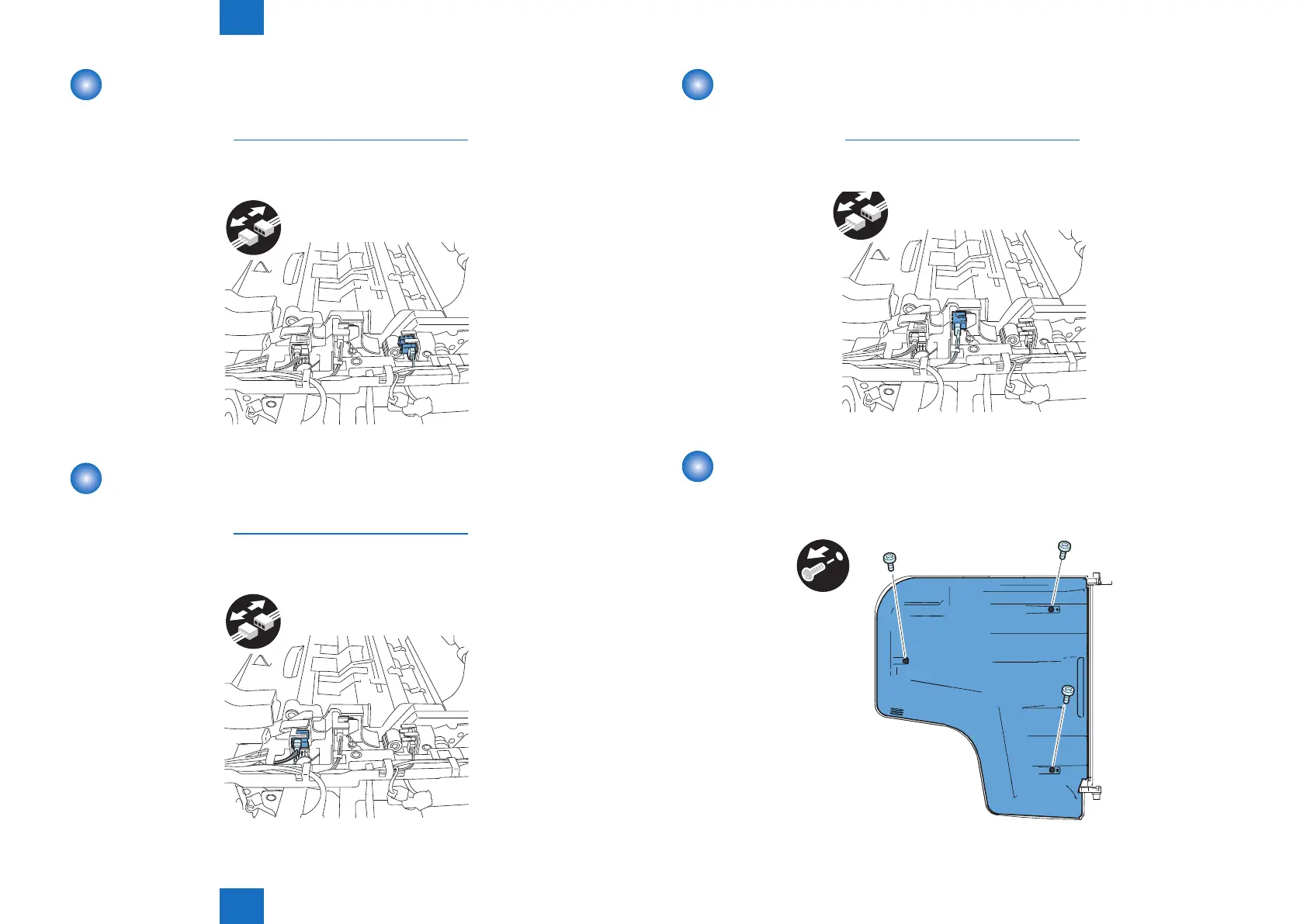

Removing the Timing Sensor(SR4)
1) Open the feeder cover.
2) Remove the rear cover.("Removing the Rear Cover"(page 4-13).)
3) Remove the timing sensor.
- Connector 1 pc.
x1
Removing the Document Set Sensor(SR5)
1) Open the feeder cover.
2) Remove the rear cover.("Removing the Rear Cover"(page 4-13).)
3) Remove the document set sensor
- Connector 1 pc.
x1
F-4-61
F-4-62
Removing the Cover Open/Closed Sensor(SR6)
1) Open the feeder cover.
2) Remove the rear cover.("Removing the Rear Cover"(page 4-13).)
3) Remove the cover open/closed sensor
- Connector 1 pc.
x1
Removing the Last Document Detection Sensor(SR7)
1) Detach the cover on the reverse side of the document tray.
- Screw 3 pcs.
x3
F-4-63
F-4-64
