Consumable Parts Requiring Periodic Replacement
and Cleaning Points (DADF)
Removing the Pickup Roller Unit

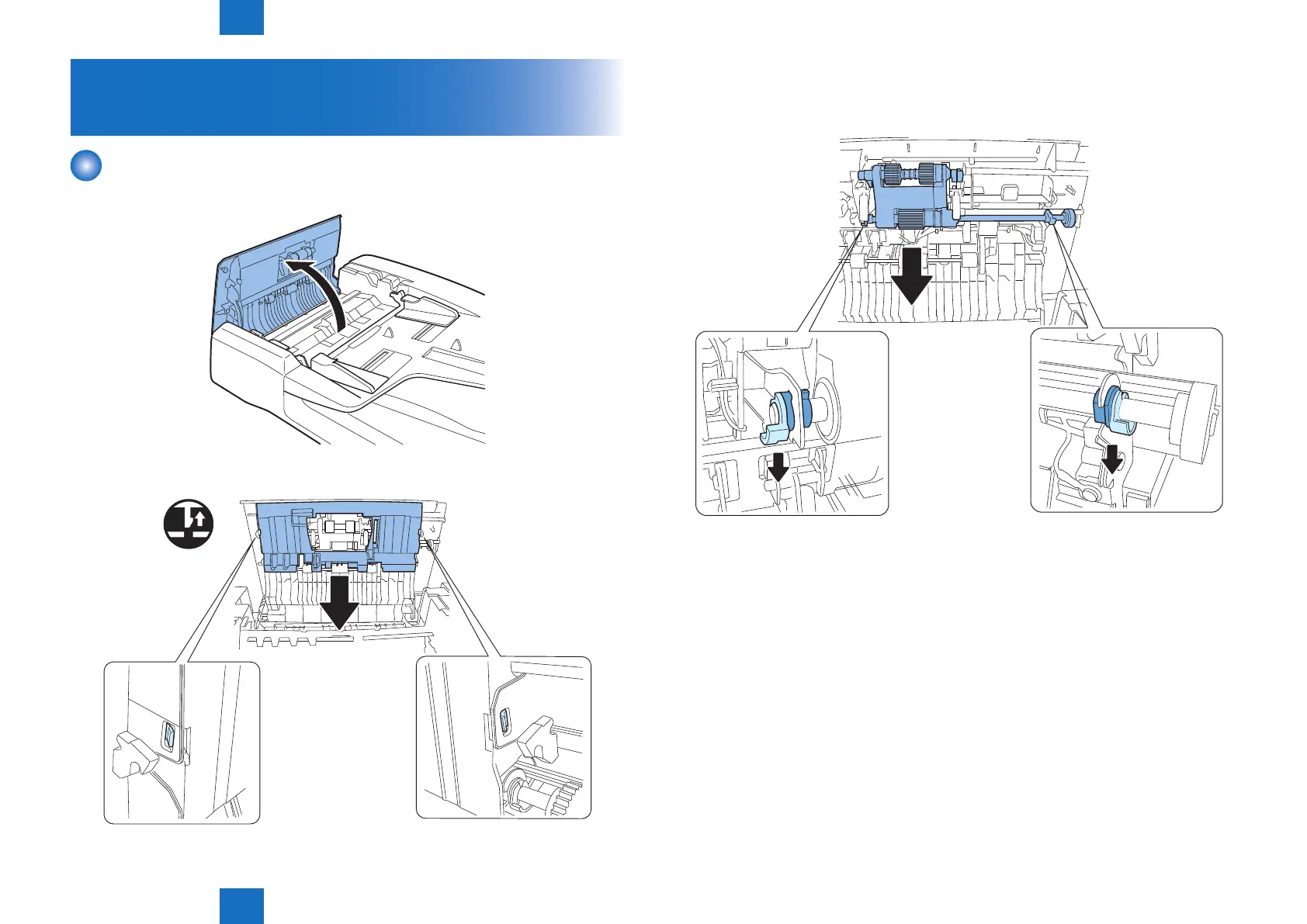

1)Open the feeder cover.
2)Remove the inner cover from the feeder cover.( Hook 2 pcs.)
x2
F-4-31
F-4-32
3)Remove the pickup roller unit .
- Resin ring , 2 pcs.
- Bearing , 2 pcs.
F-4-33
