Canon D1 - Sensor Layout; Drive Configuration

2
2
2-14
2-14
Technology > Basic Conguration (DADF) > Drive Conguration
Technology > Basic Conguration (DADF) > Drive Conguration
■

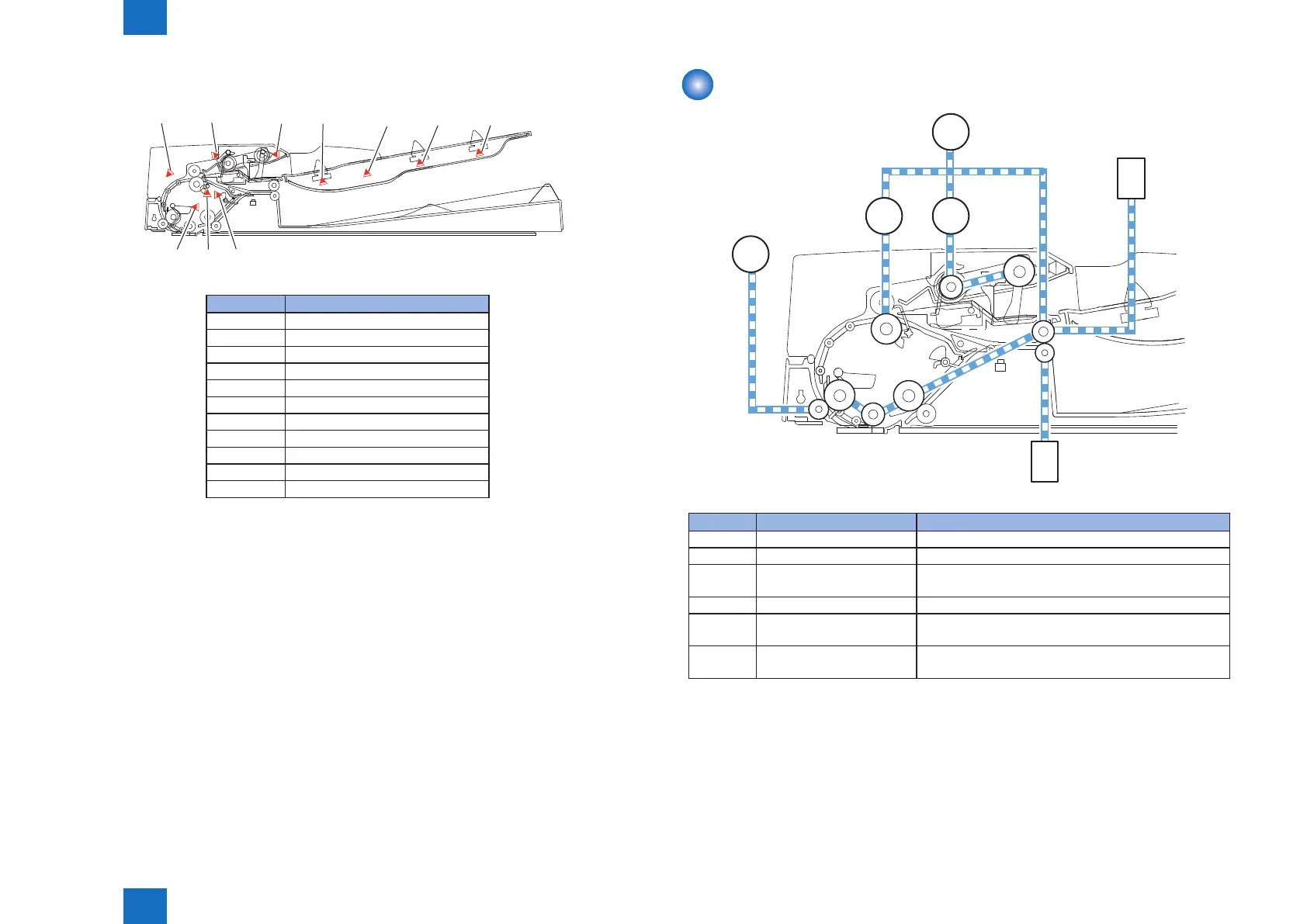

Sensor Layout
SR11
SR2 SR1
SR4
SR3
SR5 SR7 PS1/PS2 SR8 SR9
No. Sensor name
SR1 Registration sensor
SR2 Read sensor
SR3 Delivery reversal sensor
SR4 Timing sensor
SR5 Document set sensor
SR7 Last document detection sensor
SR8 Document length sensor 2
SR9 Document length sensor 1
SR11 Release motor HP sensor
PS1 Document width sensor2
PS2 Document width sensor1
F-2-26
T-2-4
Drive Conguration
CL2 CL1
M1
SL1
SL2
M2
No. Part name Content
M1 ADF motor Feeds documents..
M2 Release motor Prevents a document from swaying.
SL1 Pressurization solenoid Shifts the delivery lower roller after reversal of the dual-
sided document, etc.
SL2 Stamp solenoid Drives the stamp mechanism.
CL1 Pickup clutch Drives the pickup clutch to transmit the power of the
pickup/feed motor to the pickup roller unit.
CL2 Registration clutch Drives the registration clutch to transmit the power of
the pickup/feed motor to the registration roller.
F-2-27
T-2-5
