Technology > Basic Conguration (DADF) > Outline of Operation Modes > Forward Pickup/Reverse Delivery Operation
Technology > Basic Conguration (DADF) > Outline of Operation Modes > Forward Pickup/Reverse Delivery Operation
Completion of reading of
first document sheet
Completion of reading of
second document sheet
Completion of delivery of
first document sheet
Completion of delivery of
second document sheet
Start of reading of
second document sheet
End ob job

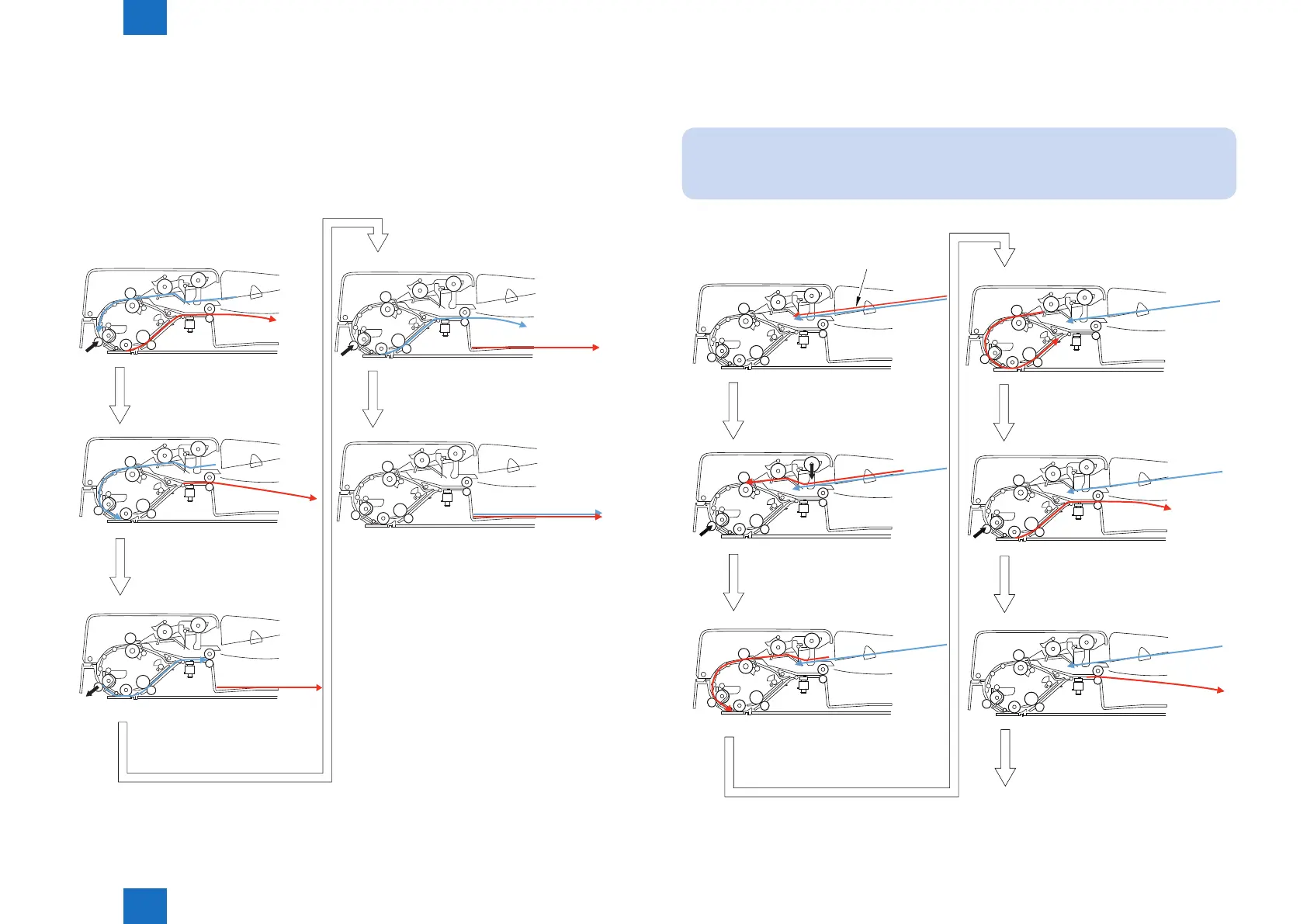

F-2-29
■
Forward Pickup/Reverse Delivery Operation
• Duplex read operation (when two document sheets are placed)
NOTE:
This operation is performed for all double-sided documents irrespective of whether
document widths are the same or different.
Document
To next
Pickup and formation of loop
of first document sheet
Waiting for reading of
the first document
Start of reading of front side
of first document sheet
End of reading of
first document sheet
Stop after feeing the first
document sheet to reversal
position
F-2-30
