Technology > Basic Conguration (DADF) > Outline of Operation Modes > Forward Pickup/Reverse Delivery Operation
Technology > Basic Conguration (DADF) > Outline of Operation Modes > Forward Pickup/Reverse Delivery Operation
To next

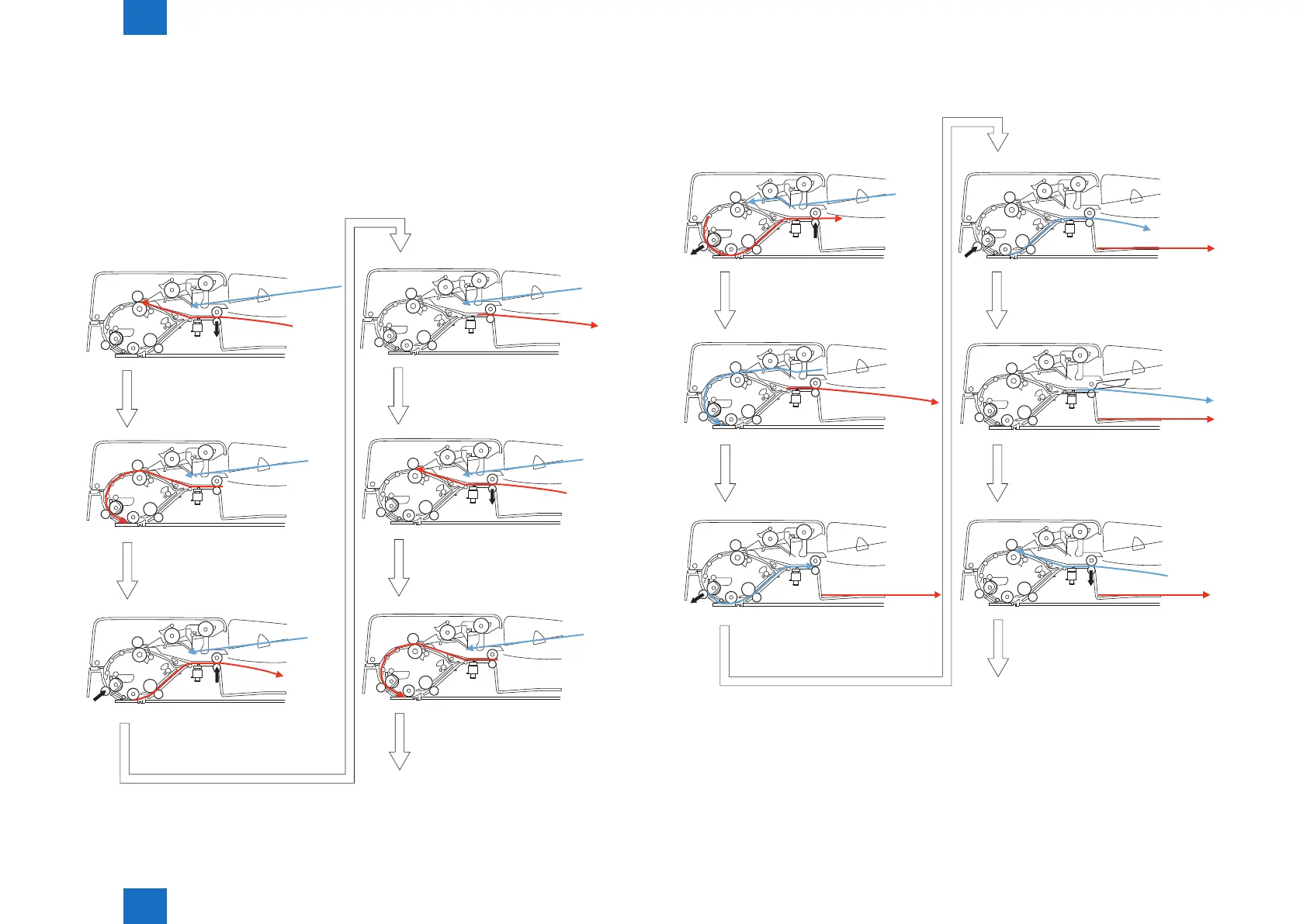

Removal of registration loop of
reverse side of first document
sheet and release of re-pickup
and delivery roller
Feed of first document sheet
and start of reading of reverse
side
Stop after feeding the first
document sheet to reversal
position
Idle feed of first document
sheet
Removal of idle registration
loop of first document sheet
and release of re-pickup and
delivery roller
End of reading of reverse side
of first document sheet and
pressurization of delivery roller
F-2-31
To next
Start of separation of second
document sheet and pressurization
of delivery roller
Start of reading of top side
of second document sheet
End of reading of front side
of second document sheet
Stop after feeding the second
document sheet to reversal position
Delivery of first document sheet
Removal of registration loop of
reverse side of second document
sheet and release of re-pickup/
delivery roller
F-2-32
