Canon D1 - Removing the Document Length Sensor(SR8,SR9); Removing the Release Motor HP Sensor(SR11)

4
4
4-28
4-28
Parts Replacement and Cleaning Procedure > Clutch Solenoid Motor Fan PCB (DADF) > Removing the Release Motor HP Sensor(SR11)
Parts Replacement and Cleaning Procedure > Clutch Solenoid Motor Fan PCB (DADF) > Removing the Release Motor HP Sensor(SR11)
2) Remove the last document detection sensor
- Connector 1 pc
SR7
x1

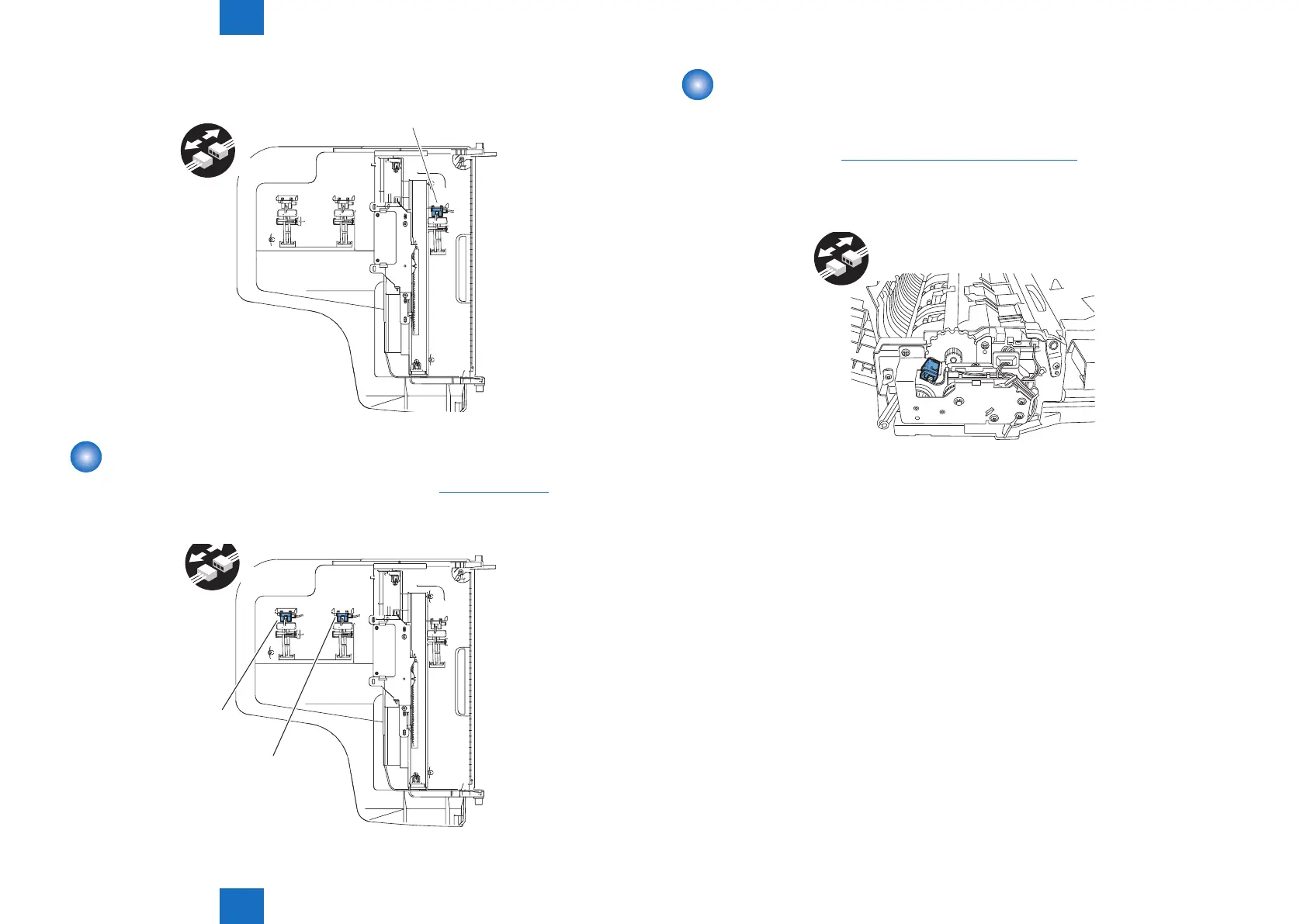

Removing the Document Length Sensor(SR8,SR9)
1) Detach the cover on the reverse side of the document tray.(Refer to page 4-27)
2) Remove the document length sensor
- Connector 1 pc
SR8
SR9
x1
F-4-65
F-4-66
Removing the Release Motor HP Sensor(SR11)
1) Open the feeder cover.
2) Open the DADF.
3) Detach the front cover.("Removing the Front Cover"(page 4-13).)
4) Close the DADF.
5) Remove the release motor HP sensor
- Connector 1 pc
x1
F-4-67
