Adjustment Procedure
(When the front or rear side is oating)
1) Adjust the left hinge height.
2) Adjust the right hinge height.
3) Adjust or check the left hinge height.
(When both sides are oating)
1) Adjust the left hinge height.
2) Adjust the right hinge height.
3) Adjust the left hinge height.
4) Adjust or check the right hinge height.
■
Adjust the height of the left hinge
1) Adjust the height with the left hinge height adjusting screw.
Caution:
Loosen the lock nut before adjustment, and tighten it after adjustment.
• If the front spacer is oating, turn the adjusting screw clockwise to bring the spacer closer
to the glass.
• If only the rear spacer or both front and rear spacers are oating, turn the adjusting screw
counterclockwise to bring the rear spacer closer to the glass.

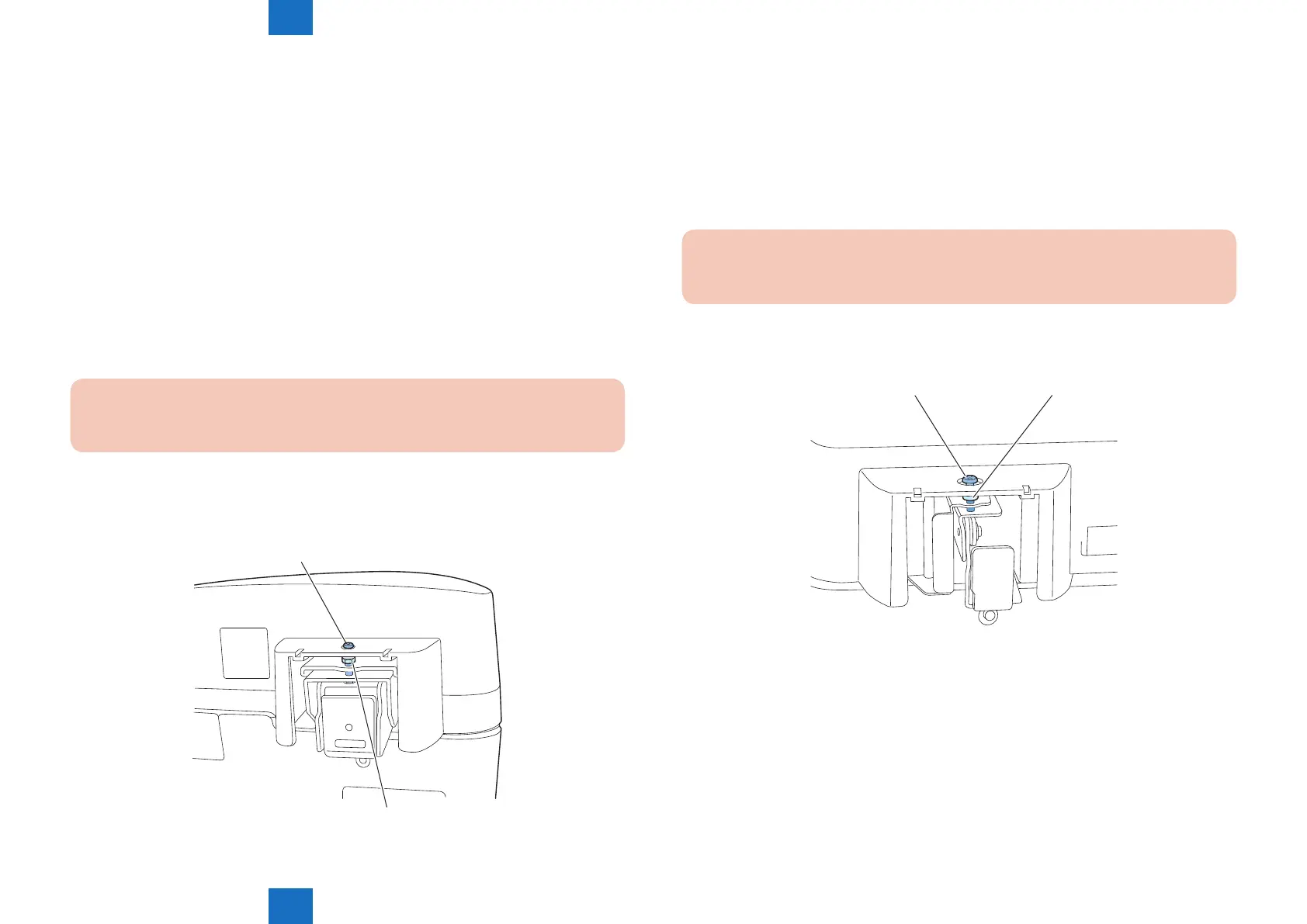

Hinge height adjusting screw
Lock nut
F-5-8
■
Check the height of the right hinge
1) When the DADF is closed, the document hold sheet must be in contact with the
document glass.
■
Adjust the height of the right hinge
1) If the height is improper, adjust it with the right hinge adjusting screw.
Caution:
Loosen the lock nut before adjustment, and tighten it after adjustment.
• Turning the adjusting screw clockwise reduces the front-right side height of the DADF.
• Turning the adjusting screw counter clockwise increases the front-right side height of the
DADF.
Hinge height adjusting screw Lock nut
2) Check the height of the left hinge. If the height is inappropriate, adjust it again.
F-5-9
