Canon D1 - Page 20

2
2
2-5
2-5

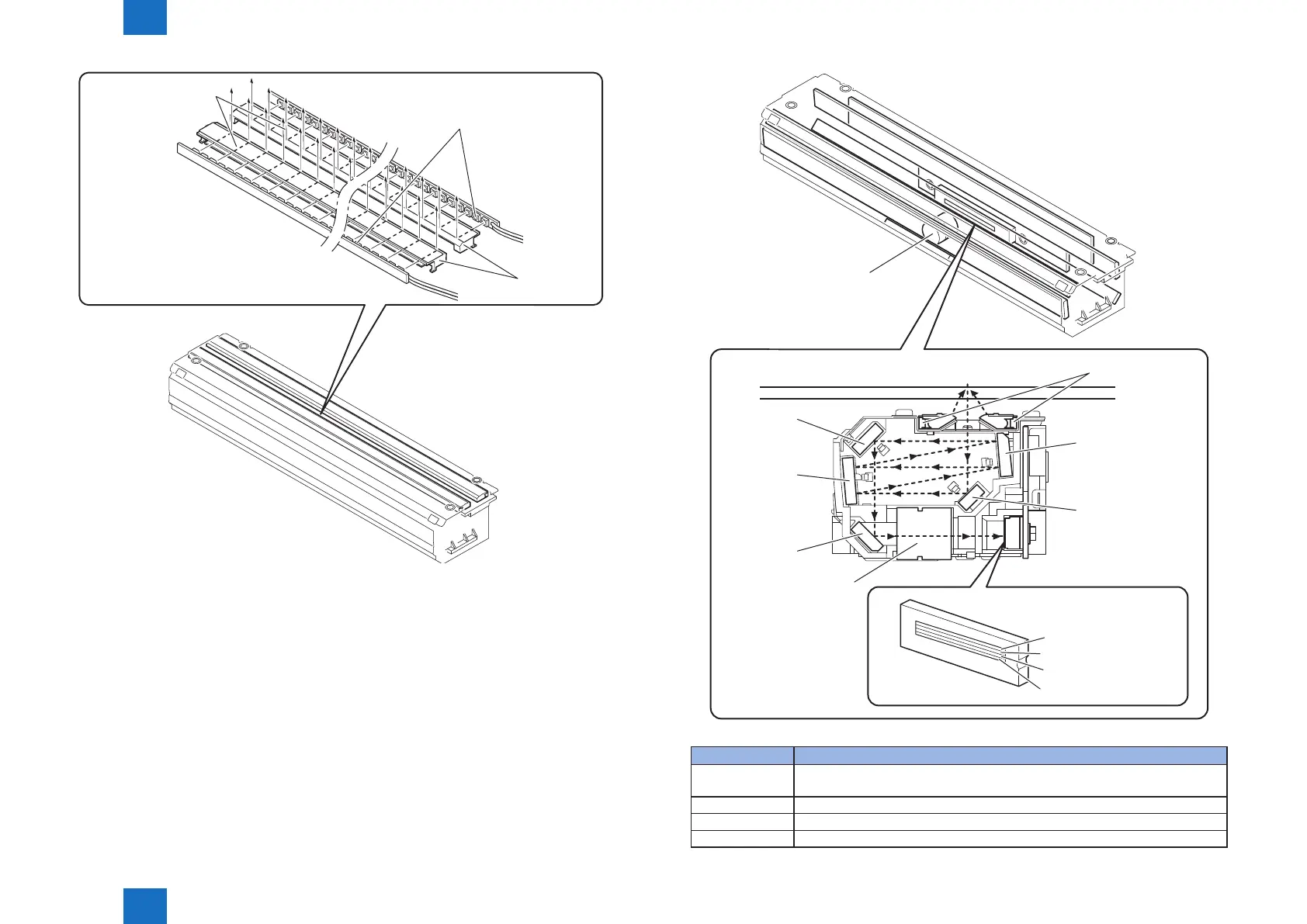

Technology > Controls (Reader)
Technology > Controls (Reader)
LED lens cover
Photoconductive
body
LED (light source)
LED (light source)
Red (R) line
CCD
Lens
mirror
No.4
mirror
No.2
mirror No.3
mirror No.1
mirror
No.5
Lens
Green (G) line
Blue (B) line
Black & White (B/W) line
Items Description
CCD Receives the reected light that has gone through the lens and converts it into
electric signal to output it.
Lens Collects the light reected by an original.
LED(light source) Light source to expose an original to laser
mirror No. 1 - 5 Return the light
F-2-7
F-2-8
T-2-1
