L: Lower Limit Line
Indicates the lower limit of the sufficient amount of ink to print. Refill the ink tank before the amount of
ink is below this line.
M: Ink Tanks
The black ink tank is on the left, and the color ink tanks (cyan, magenta, and yellow) are on the right.
If any ink levels are low, refill the low tanks.
Refilling Ink Tanks
N: Tank Caps
Open to refill ink tanks.

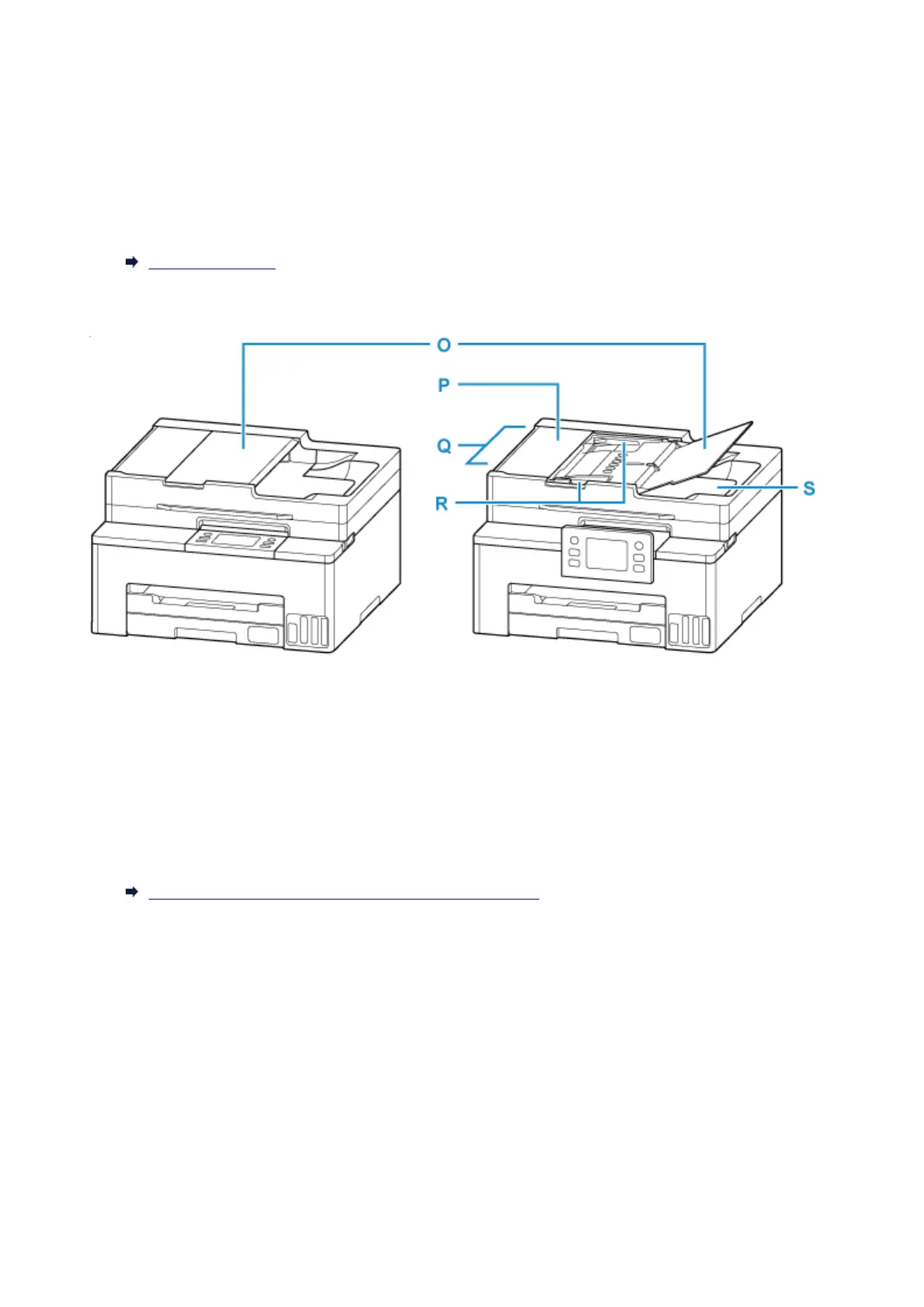

O: Document Tray
Open to load a document in the ADF. You can load two or more sheets of document of the same size
and thickness. Load the document with the side you want to scan facing up.
P: Document Feeder Cover
Open when clearing jammed documents.
Q: ADF (Auto Document Feeder)
Load a document here. The documents loaded in the document tray are scanned automatically one
sheet at a time.
Loading Documents in the ADF (Auto Document Feeder)
R: Document Guide
Adjust this guide to match the width of document in the ADF.
S: Document Output Slot
Documents scanned from the ADF are delivered here.
