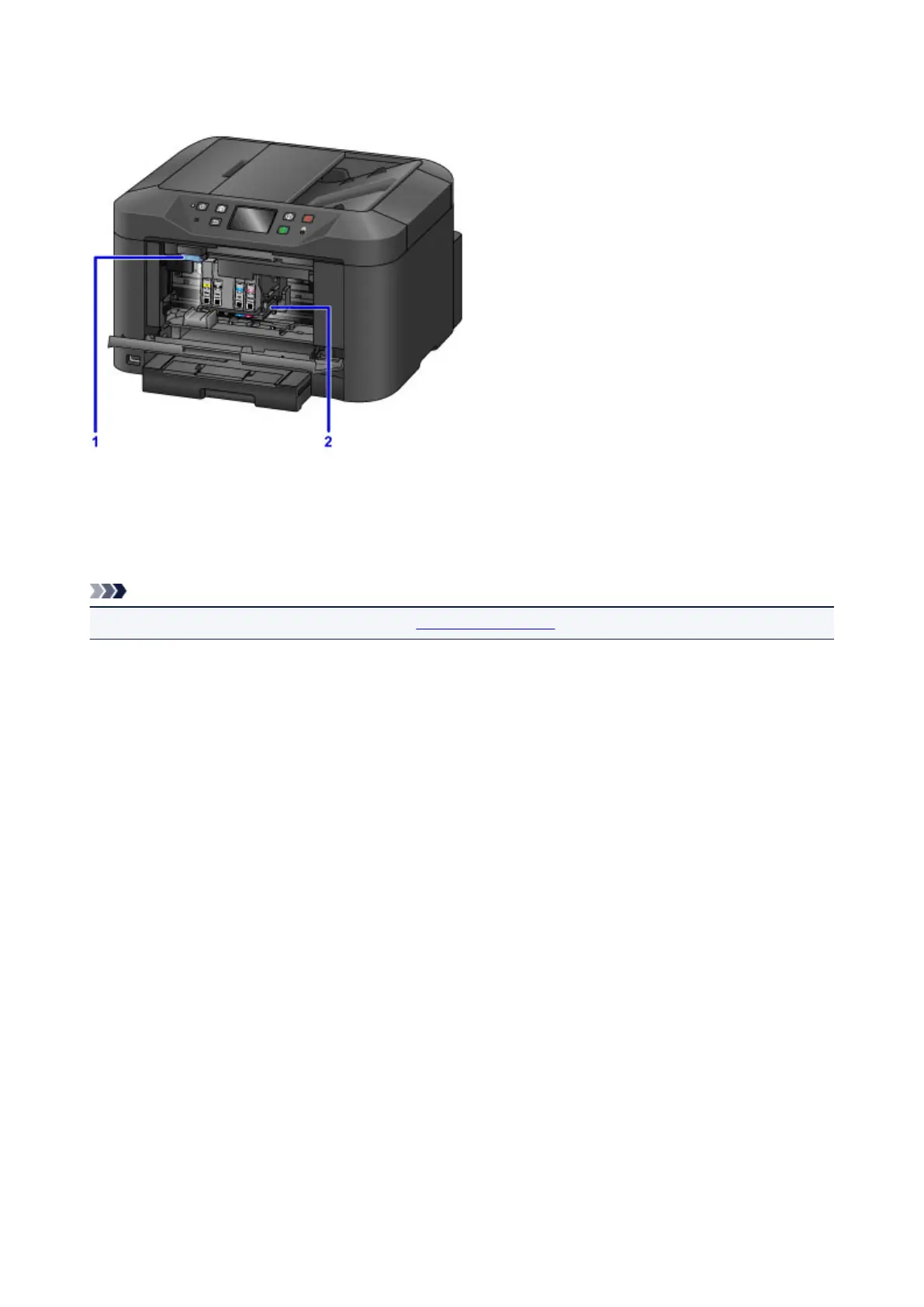

Inside View

(1) ink tank eject lever

Push up to remove ink tanks.

(2) print head holder

The print head is pre-installed.

Note

• For instructions on replacing ink tanks, see Replacing Ink Tanks.
