4-OPERATINGINSTRUCTIONS

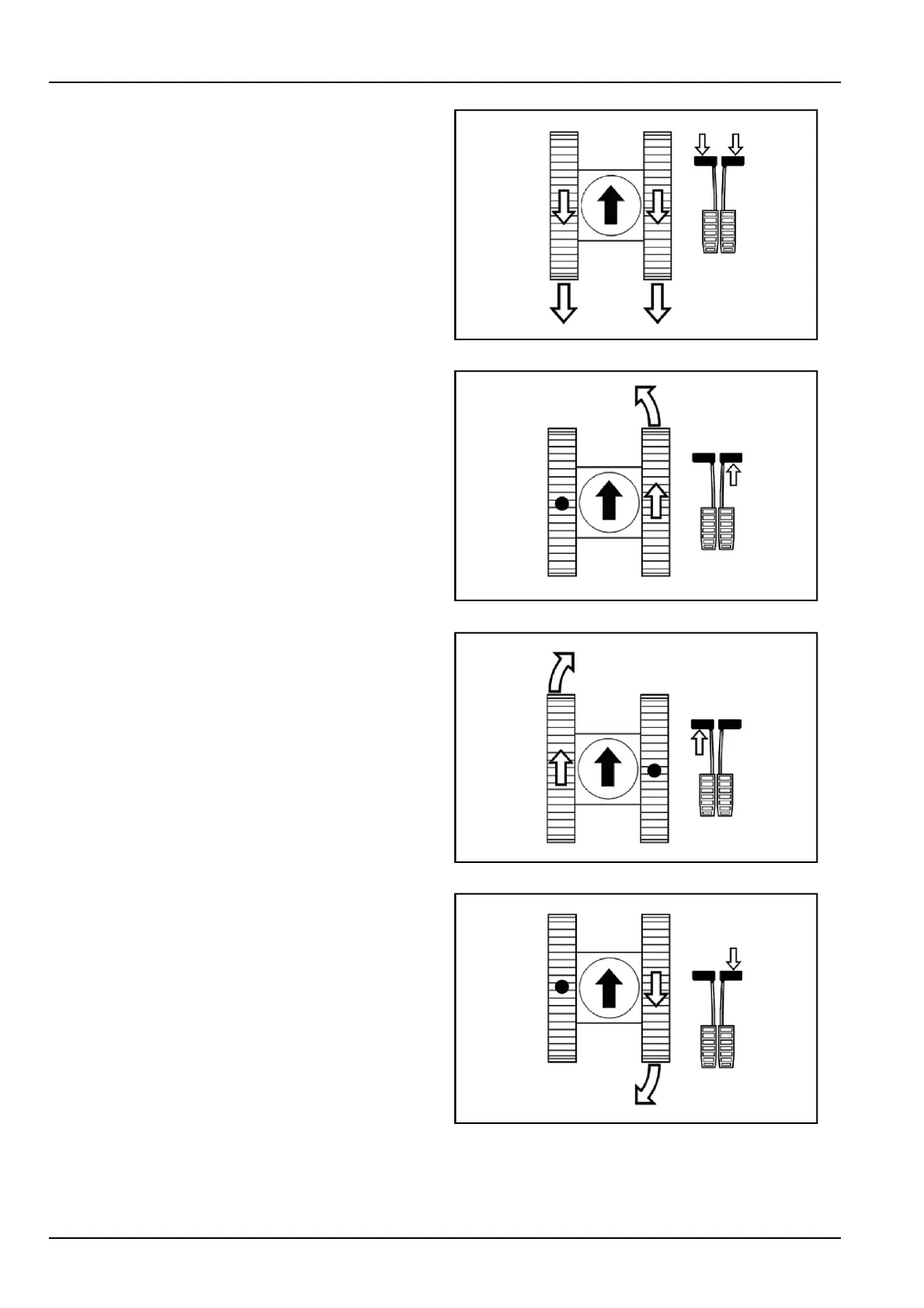

Straightlinetravel(reversetravel)

Pressthetwopedals(orpushthetwolevers)rearwards

atthesametime.

SMIL13CEX2680AB4

Turningtotheleft(forwardtravel)

Simplypresstheright-handpedalortheright-handlever

forwards.

SMIL13CEX2681AB5

Turningtotheright(forwardtravel)

Simplypresstheleft-handpedalortheleft-handleverfor-

wards.

SMIL13CEX2682AB6

Turningtotheleft(reversetravel)

Simplypresstheright-handpedalortheright-handlever

rearwards.

SMIL13CEX2683AB7
