4-OPERATINGINSTRUCTIONS

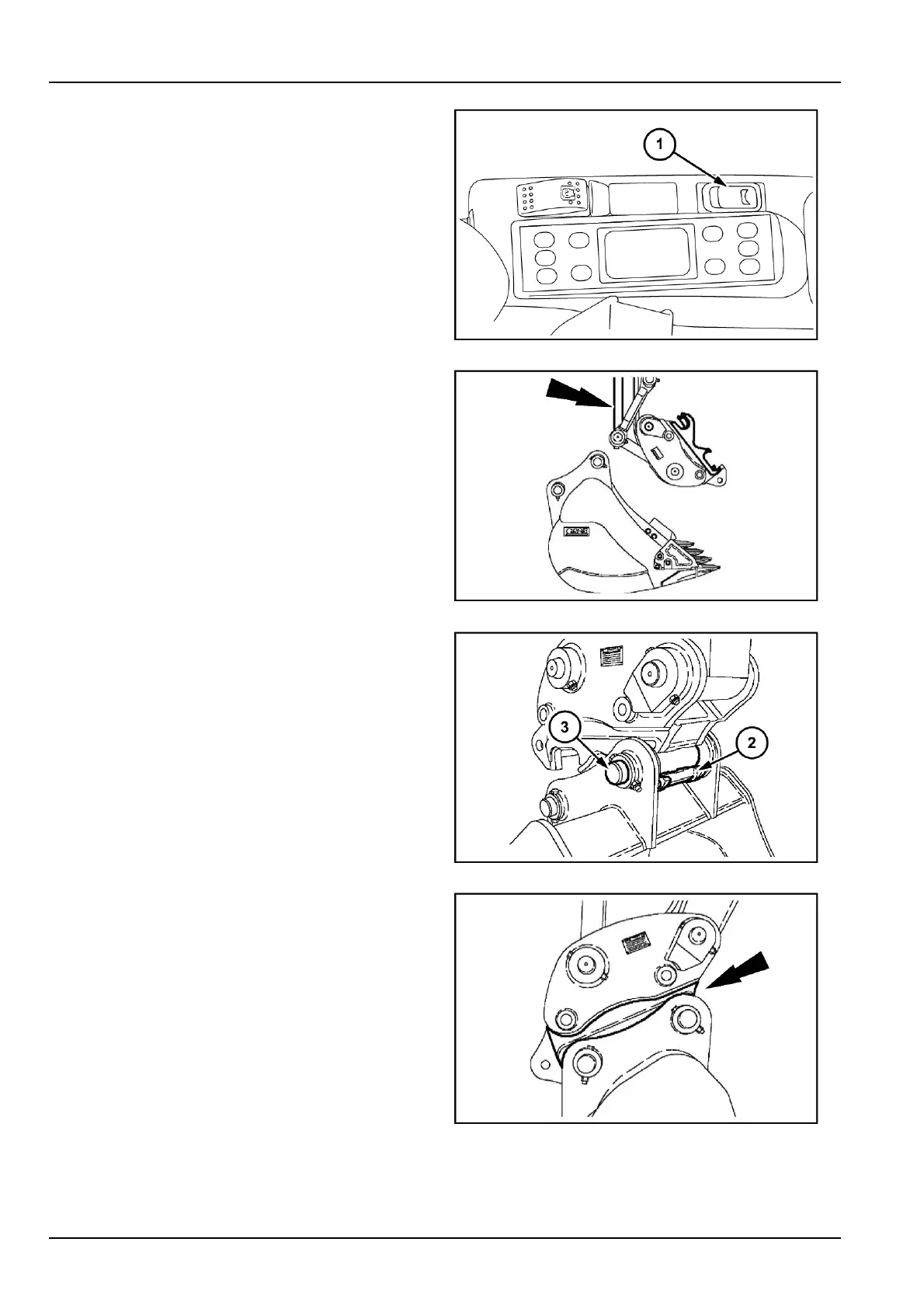

2.Placetheswitch(1)inunlockingposition.Theaudible
alarmdevicewillsound.(Refertopage3-33).
SMIL13CEX2696AB2
3.Operatethearmandbucketcontrolssothatthearmis
practicallyvertical,slopingslightlytowardsthecab,to
releasethesafetydevice.Extendthebucketcylinder
rodcompletelyandmaintainthehydraulicpressureso
thatthelatchinghookretracts.
SMIL13CEX2697AB3
4.Operatethearmcontrolleversoastobringthequick
couplerhook(2)aroundthetoolpin(3).
SMIL13CEX2698AB4
5.Operatethebucketcontrolleversothatthepiniscom-
pletelyengagedinthequickcouplerhook.
SMIL13CEX2699AB5
4-20
