4-OPERATINGINSTRUCTIONS

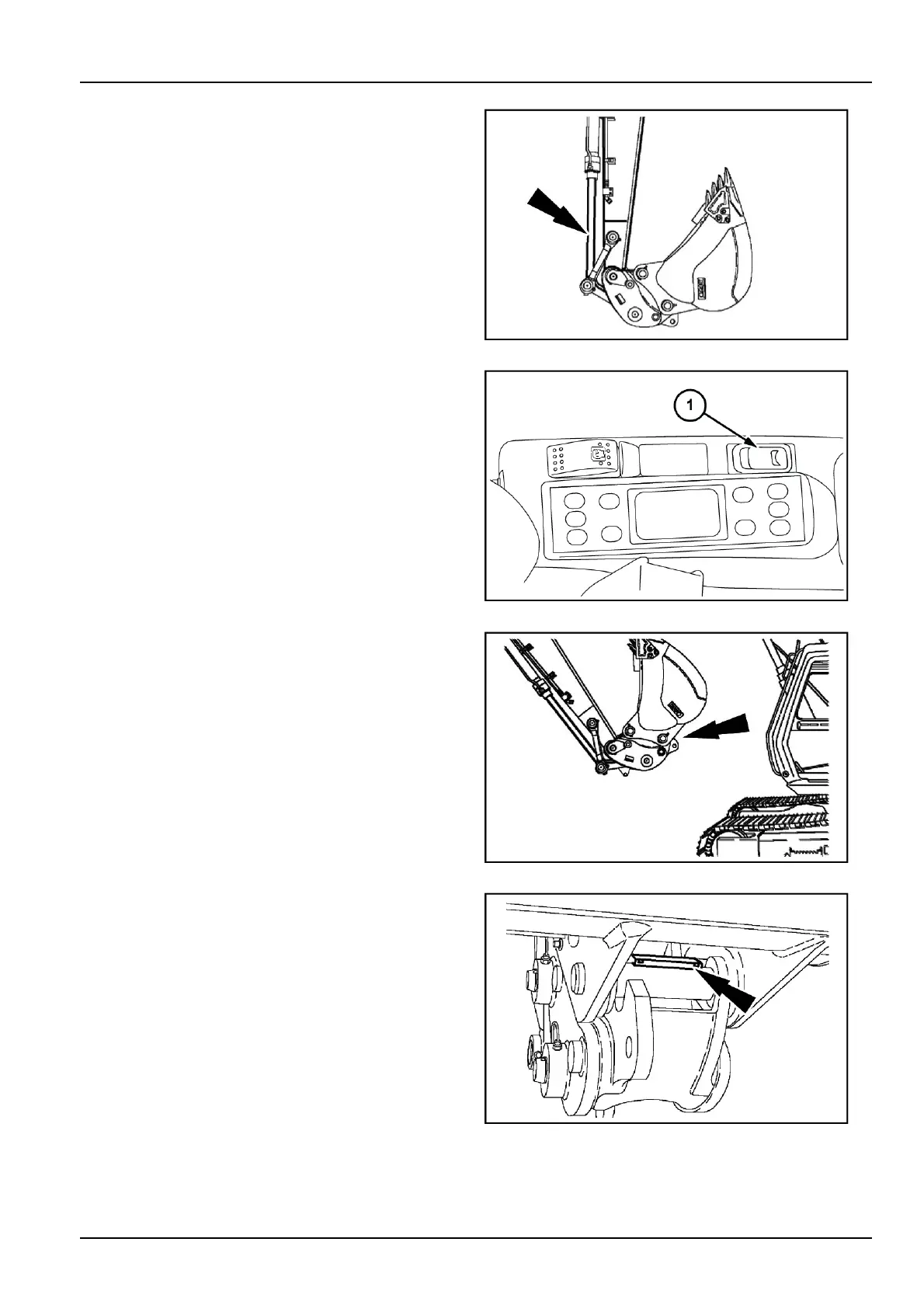

6.Raisethearmandoperatethebucketcontroltoextend
thebucketcylinderrodcompletely.
SMIL13CEX2700AB6
7.Placetheswitch(1)inthelockedposition.Theaudible
alarmdevicewillceasefunctioning.
SMIL13CEX2696AB7
8.Maintainthepressureinthebucketcylindertoallow
thelatchinghooktoclose.Raisetheattachmentso
youcanseethebucketpin.
SMIL13CEX2701AB8
9.Makesureyoucanseethatthebucketpiniscorrectly
engagedinthelatchinghook.
NOTE:ifitisnotpossibletomakeavisualchecksitting
intheoperator'sseat,getdownfromthemachineand
makesurethatthetooliscorrectlyconnectedwiththe
safetydeviceengaged.
SMIL13CEX2702AB9
4-21
