2-SAFETYINFORMATION

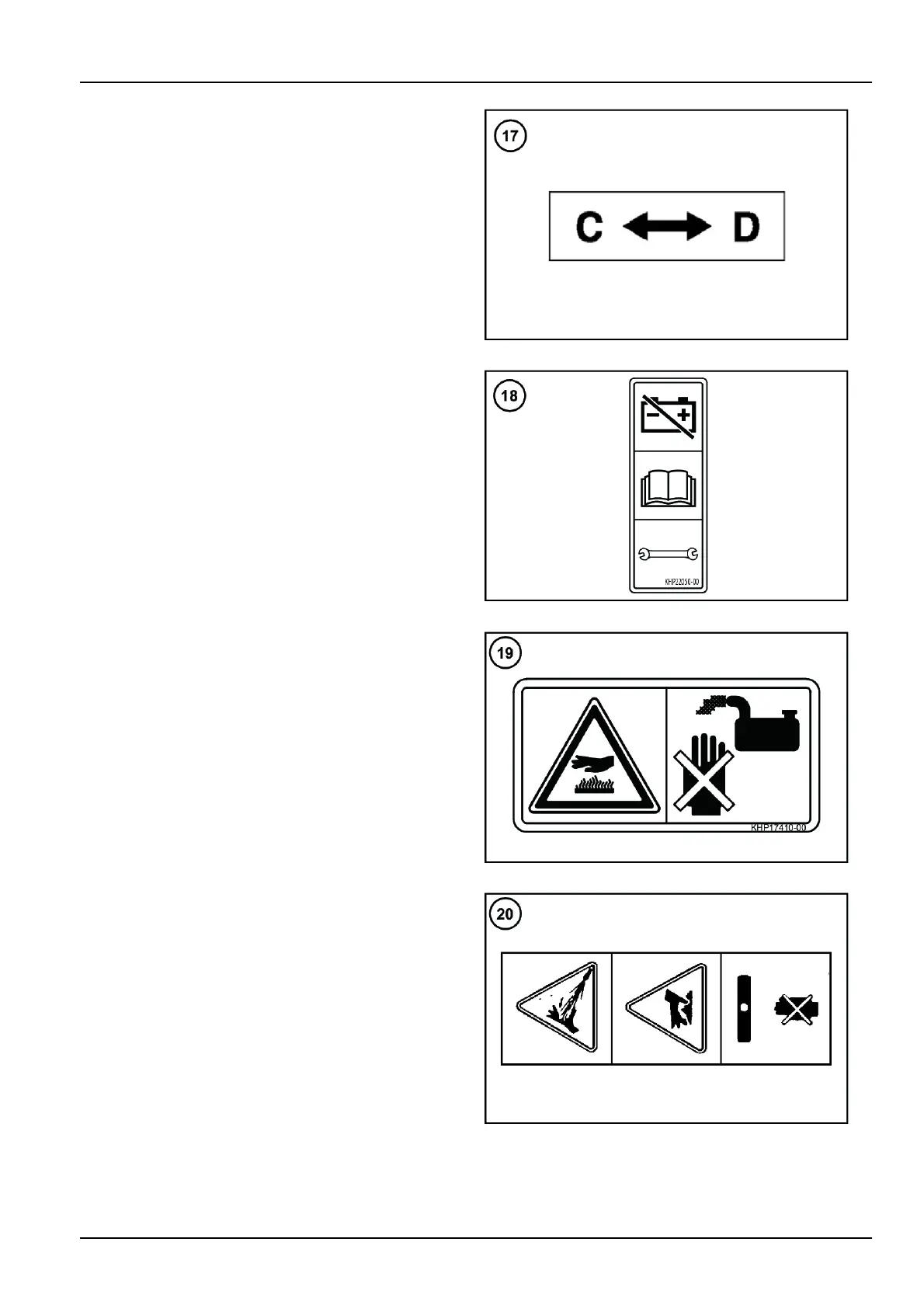

Controlpatternselector(ifequipped)

Partnumber:KHP1757

Thisdecalshowsthepositioninwhichtheselectormust

beplacedaccordingtotheselectedcongurationtypeof

thecontrollevers.See"Controlpatternselection"decal.

SMIL13CEX2851AB31

Batterydisconnectswitch

Partnumber:KHP22050

Readtheoperatormanualwhenhandlingthebatterydis-

connectswitch.Toreplacethebattery,usethetoolscor-

rectly.

SMIL13CEX2541AB32

Mufer

Partnumber:KHP17410

Thisdecalwarnsthatonemustnevertouchthesilencer

whenitisstillhot.

SMIL13CEX2542AB33

Radiator

Partnumber:KHP1326

Thisdecalwarnsthattheradiatormustneverbetouched

andthattheradiatorcapmustneverberemovedwhile

thecoolingsystemisstillhot.Waitforthesystemtocool

downbeforecarryingoutanyoperation.

SMIL13CEX2543AB34

2-25
