3-CONTROLS/INSTRUMENTS

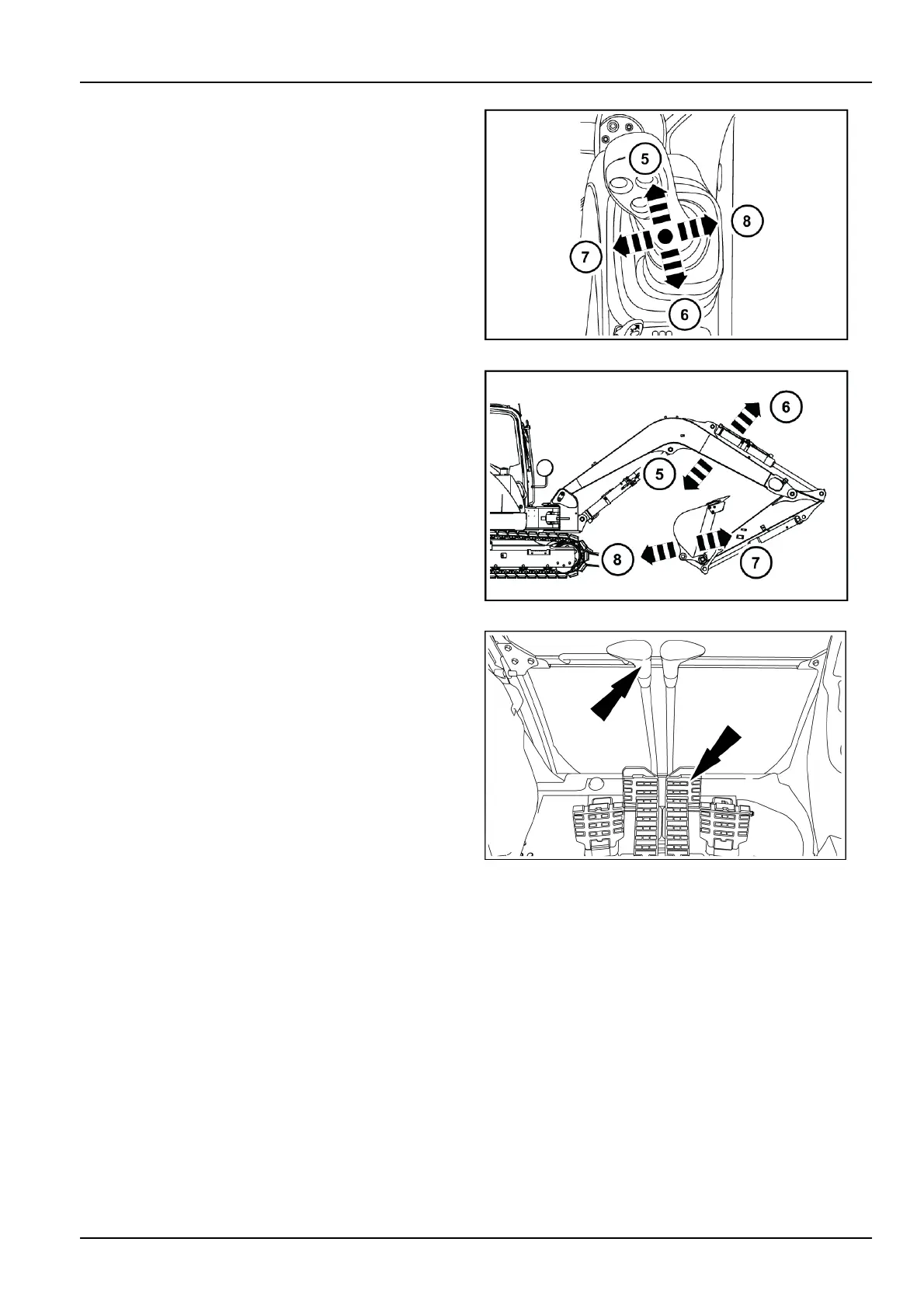

Boomandbucketrightcontrollever

Thespeedofmovementoftheboomorthebucketde-

pendsonthecontrollevertiltangle.Intheintermediate

positiontwomovementscanbeobtainedsimultaneously.

SMIL13CEX2579AB3

(5)Theboomlowers

(6)Theboomraises

(7)Thebucketretracts(lling)

(8)Thebucketextends(dumping)

SMIL13CEX2943AB4

Travelcontrolleversandpedals

Theseleversandpedalsareusedtomovethemachine.

NOTE:travelspeedeitherforwardsorinreversedepends

onthepositionofthetravelspeedswitch.(Refertopage

3-18).

SMIL13CEX2883AB5

3-7
