SECTION 55 - ELECTRICAL SYSTEM 195

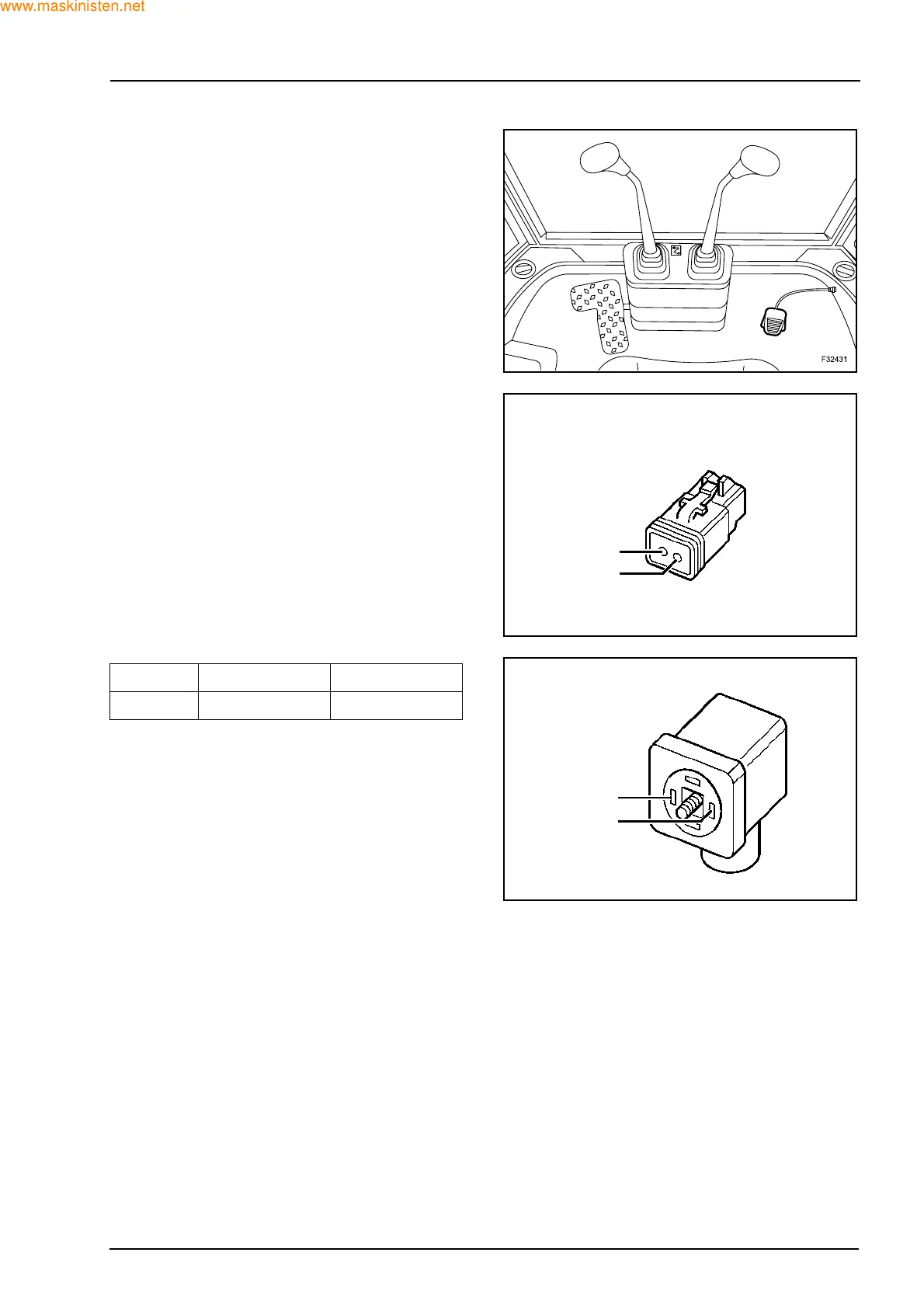

HYDRAULIC HAMMER CONTROL PEDAL
At start-up, the pedal must have 12 V for the opera-
tion of the hammer.
When the switch is operated, there must be 12 V at
pin 2.
Pin No. Solenoid Resistance
112 V 7.5 Ω
F28476
2: R-V
1: R-V:1
F28473
1: R-V:1
2: N:1
