20 SECTION 02 - TECHNICAL SPECIFICATIONS

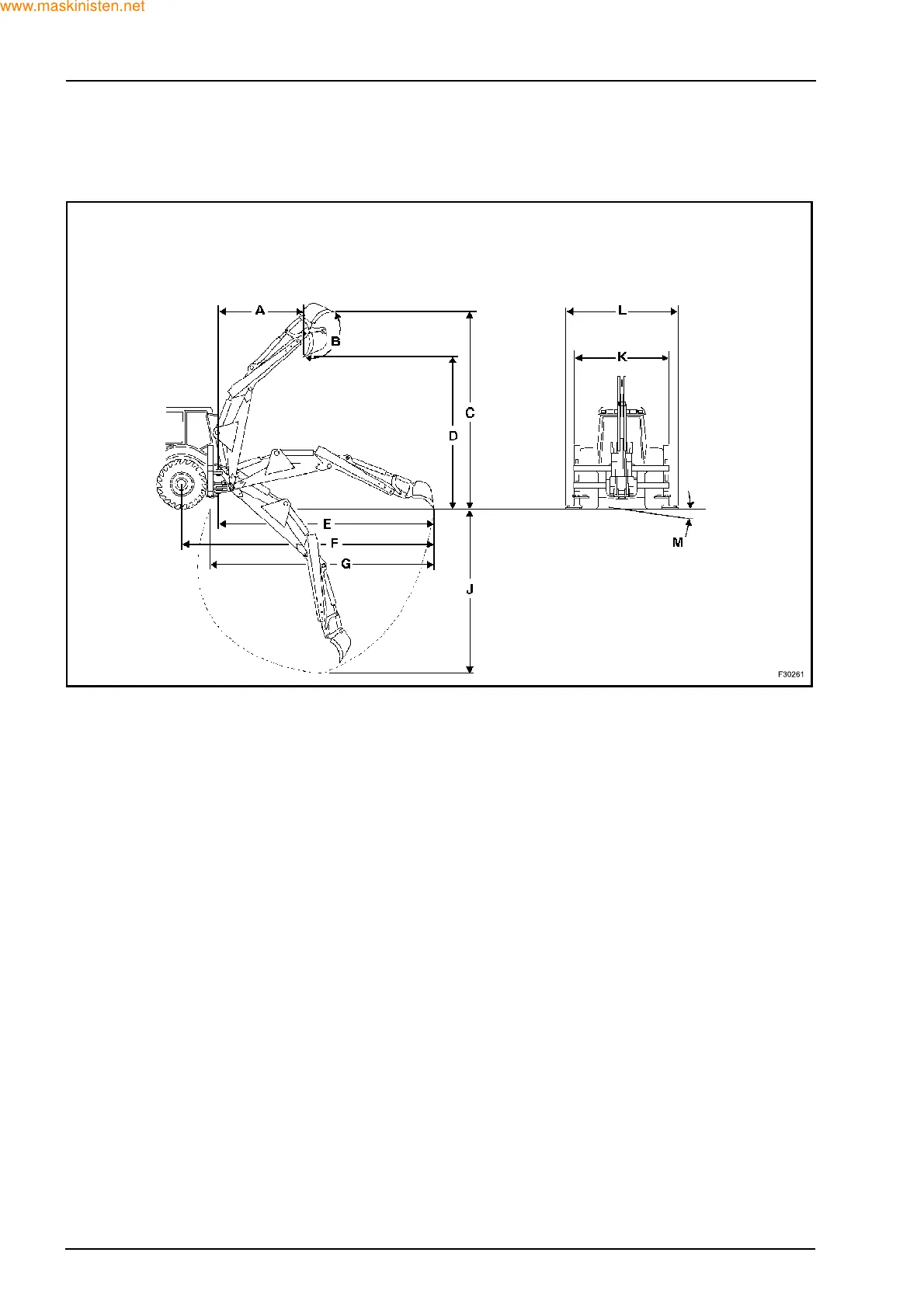

4.3 BACKHOE ATTACHMENT DIMENSIONS AND PERFORMANCE
580SR / 580SR+ / 590SR
A. Maximum reach when loaded
B. Bucket rotation
C. Operating height, fully raised
D. Maximum height at full load
E. Reach from swing post
F. Reach from rear axle centre line
G. Maximum length of surface excavation
H. Maximum digging depth
I. Stabilizer spread - transport
J. Stabilizer spread - working
K. Stabilizer pad levelling angle
