4 SECTION 02 - TECHNICAL SPECIFICATIONS

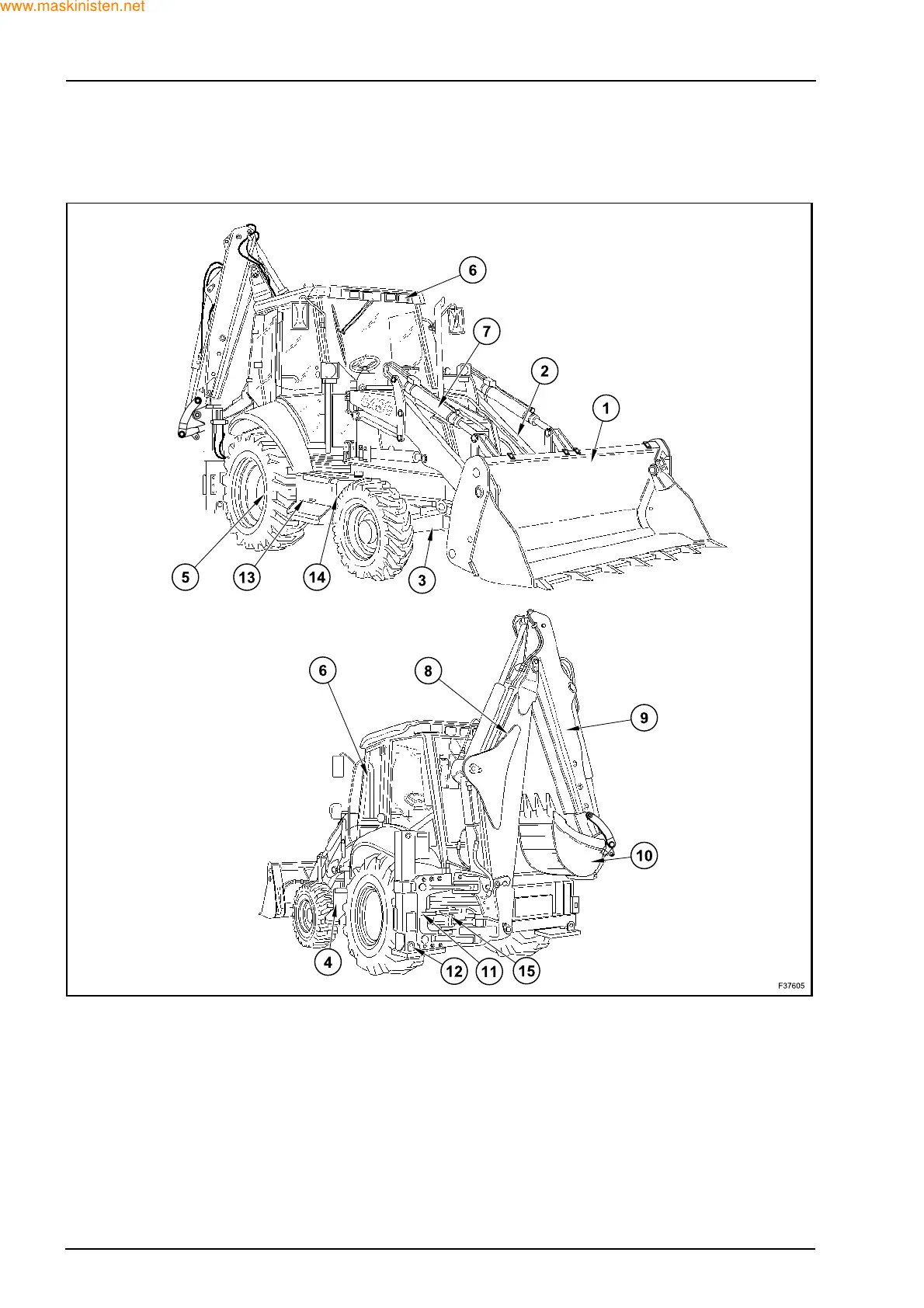

2. IDENTIFICATION OF MAIN COMPONENTS
SIDESHIFT VERSION (590SR for example)
1. Loader bucket
2. Loader arm
3. Front axle
4. Fuel tank
5. Rear axle
6. Operator’s compartment
7. Engine guard
8. Backhoe attachment boom
9. Dipper or telescopic dipper
10. Backhoe bucket
11. Backhoe attachment sideshift carriage
12. Stabilizers
13. Battery box
14. Hydraulic oil tank
15. Swing cylinders
