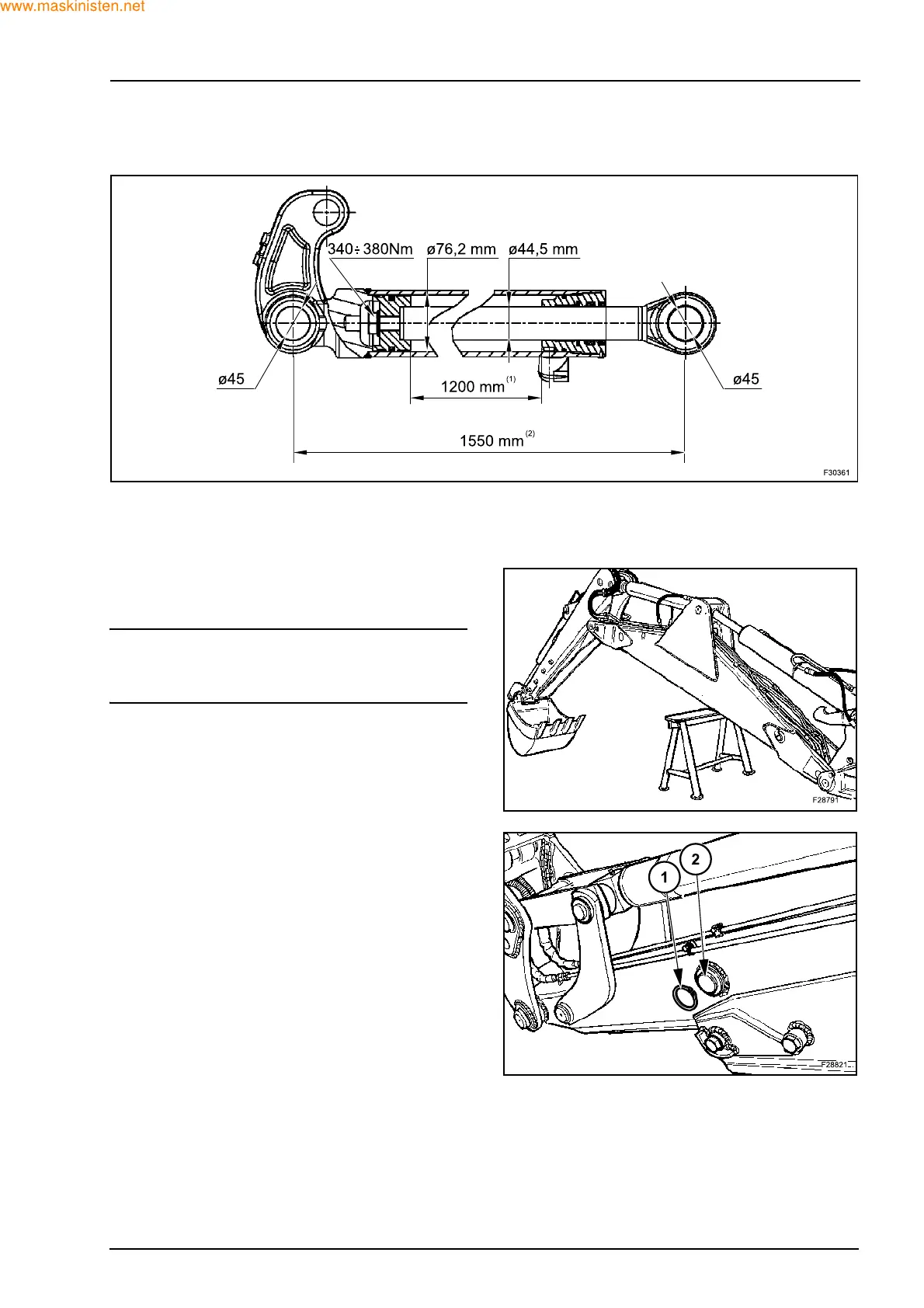

5.7 TELESCOPIC CYLINDER
(1) Stroke
(2) Completely retracted
CYLINDER REMOVAL
Park the machine on a flat surface and position the
backhoe on the ground. Support the backhoe ele-
ments for cylinder removal using a suitable stand.
SWARNING
Always support the structural members so that they
will be stable and safe to work around.
Stop the engine and move the backhoe attachment
control levers through all operating positions to re-
lieve any residual pressures in the system.
Remove the snap ring (1). Hammer to slide out the
pin (2) from the other side.
