SECTION 35 - HYDRAULIC SYSTEM 49

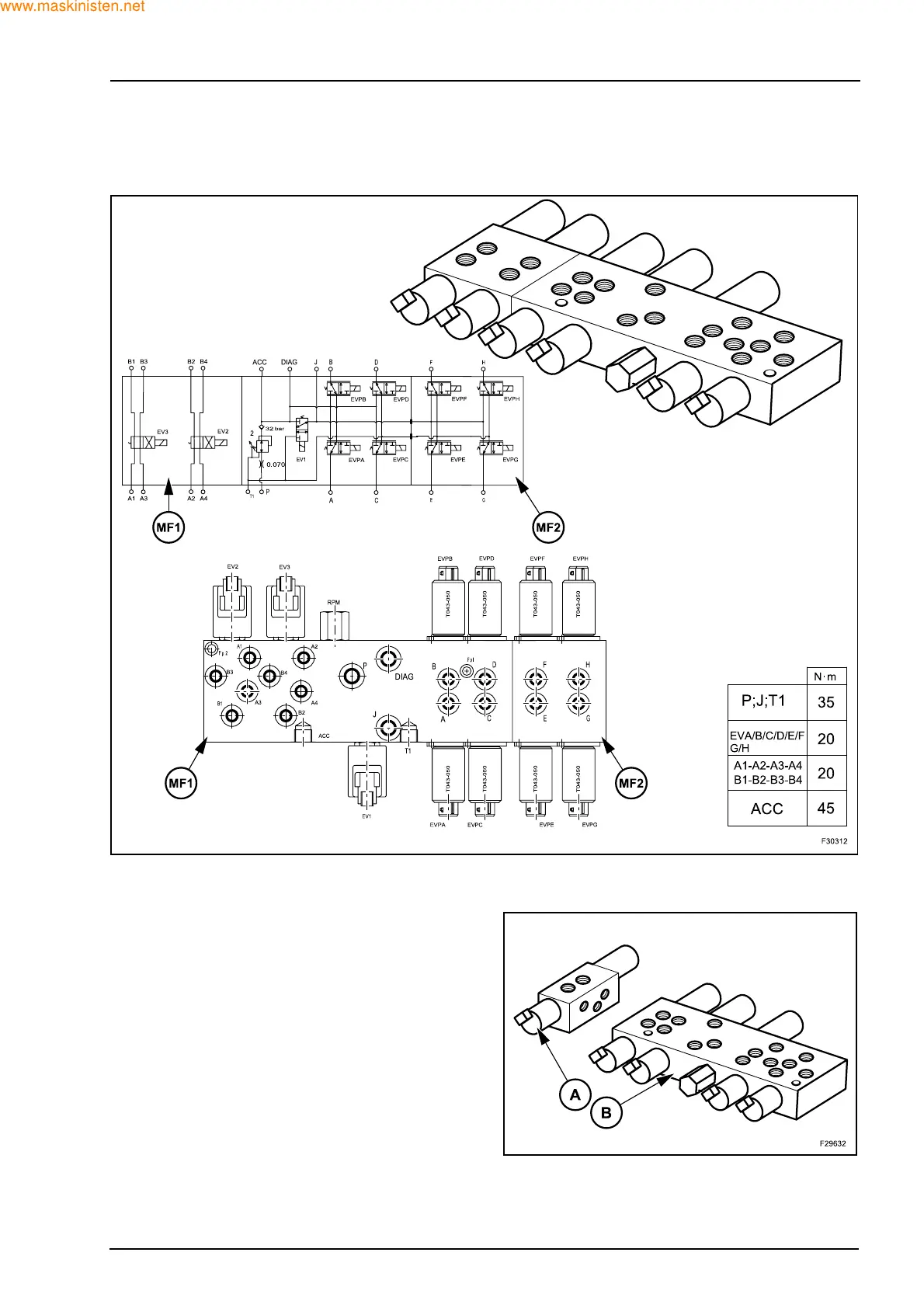

3.3 SOLENOID VALVE FOR PILOTING THE BACKHOE CONTROL VALVE (WITH
HYDRAULIC CONTROL)
Solenoid valve is located under the cab floor and is
installed directly in the lower part of the chassis that
supports the operating levers. The solenoid valve is
installed with the pilot models and has the task to
transform the electrical controls, received from the
hydraulic control levers, in hydraulic controls and to
send them to the backhoe attachment control valve.
The module (A) is installed only on the machines
versions with telescopic dipper. If the machine is not
equipped with telescopic dipper, the solenoid valve
installed is of type (B); while if the telescopic dipper
is installed the solenoid valve can be of type (A) +
(B).
