Case 580SR+ - Hydraulic Cylinders

66 SECTION 35 - HYDRAULIC SYSTEM
5. HYDRAULIC CYLINDERS

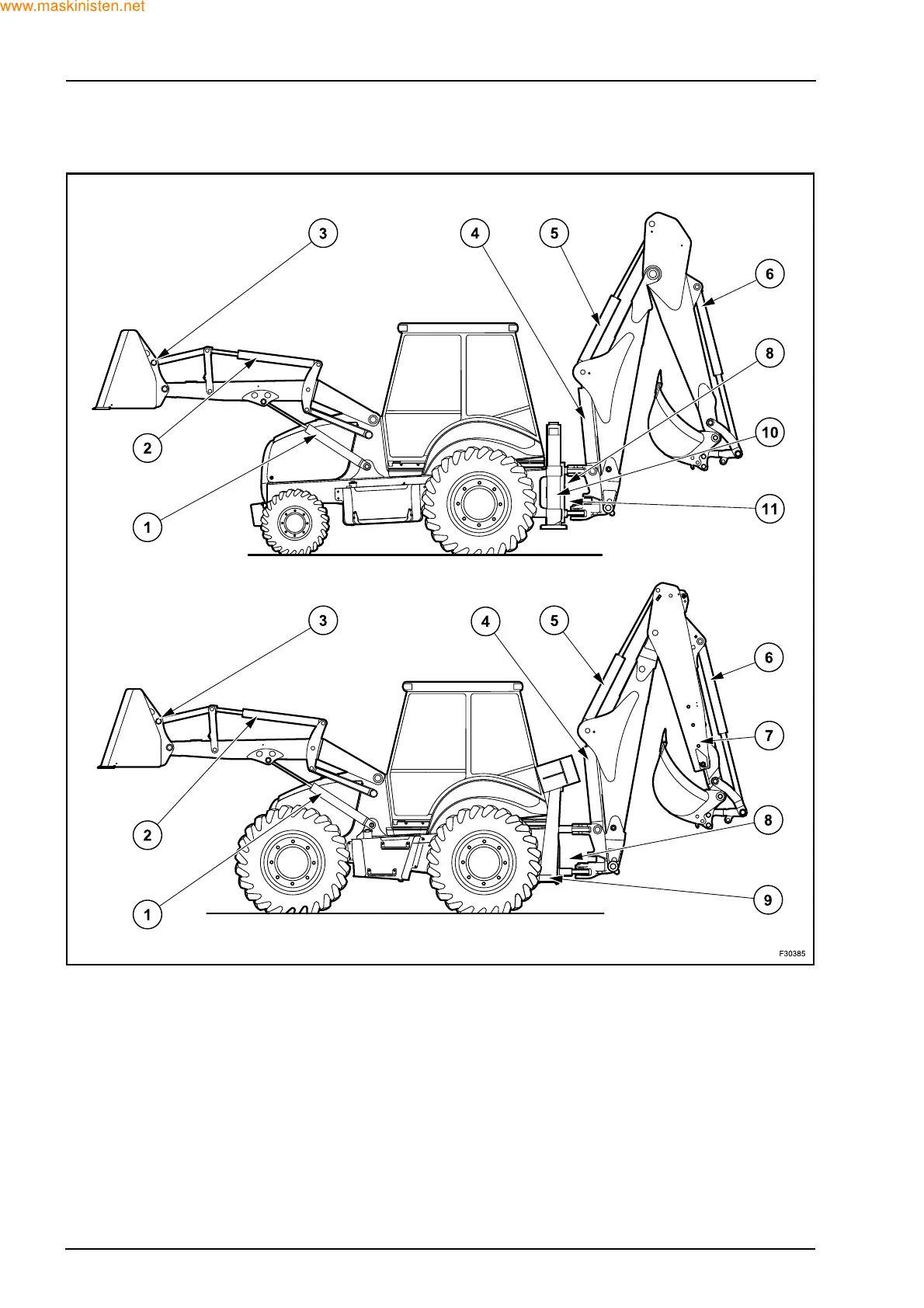

1. Loader attachment boom cylinder
2. Loader bucket cylinder
3. 4x1 loader bucket cylinder
4. Backhoe boom cylinder
5. Backhoe dipper cylinder
6. Backhoe bucket cylinder
7. Telescopic cylinder
8. Swing backhoe cylinder
9. Stabilizer cylinder (center pivot models)
10. Stabilizer cylinder (sideshift models)
11. Backhoe attachment travel lock cylinder (sideshift models)
