116 SECTION 35 - HYDRAULIC SYSTEM

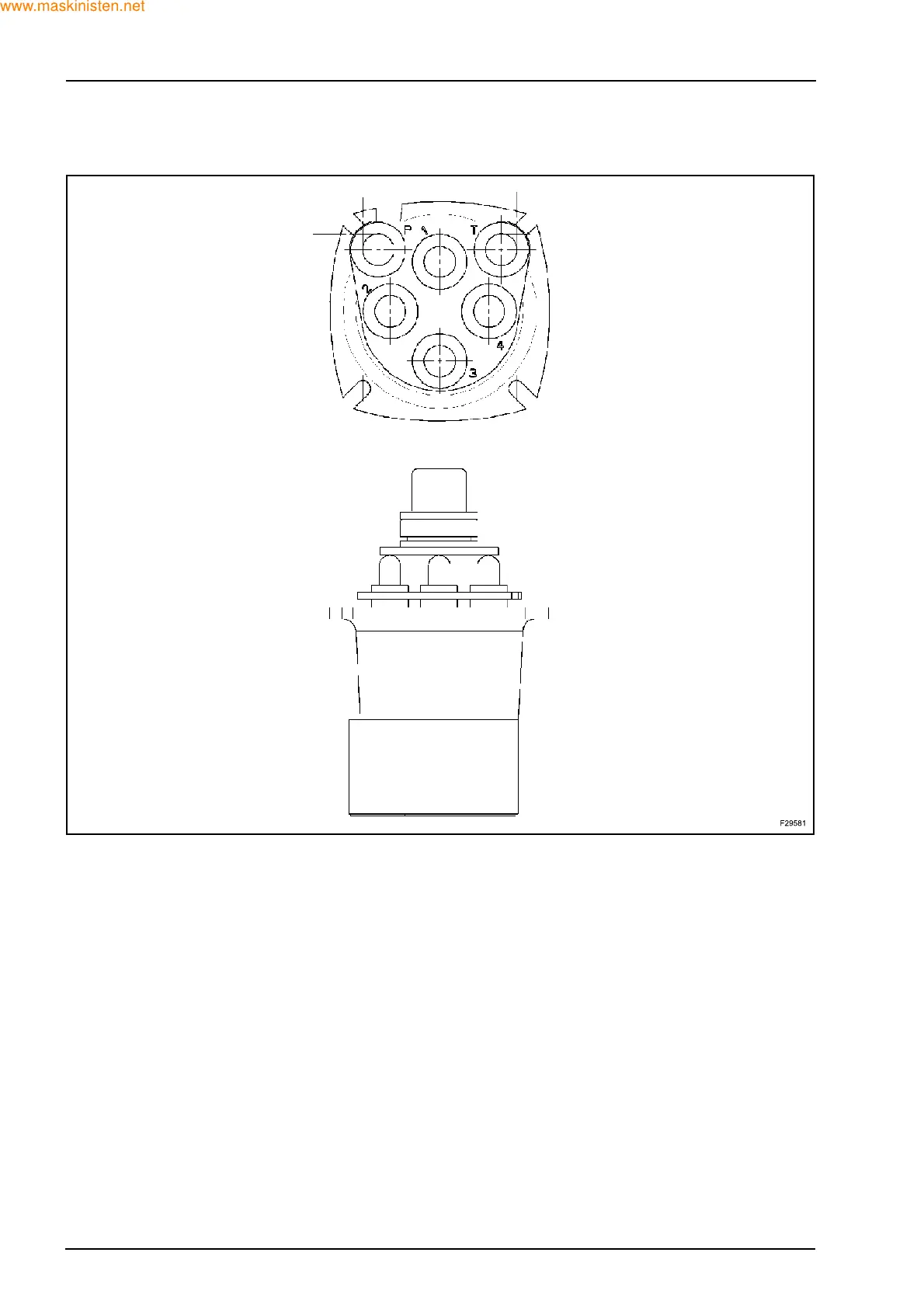

6.4 CONTROL LEVER VALVE
P. Supply
T. Return to tank
Right valve (dipper/bucket)
1. Retracting the dipper
2. Opening the backhoe bucket
3. Extending the dipper
4. Closing the backhoe bucket
Left valve (backhoe/swing)
1. Lifting
2. Right swinging
3. Lowering
4. Left swinging
