SECTION 33 - BRAKES SYSTEM 7
2.1 PARKING BRAKE ADJUSTMENT

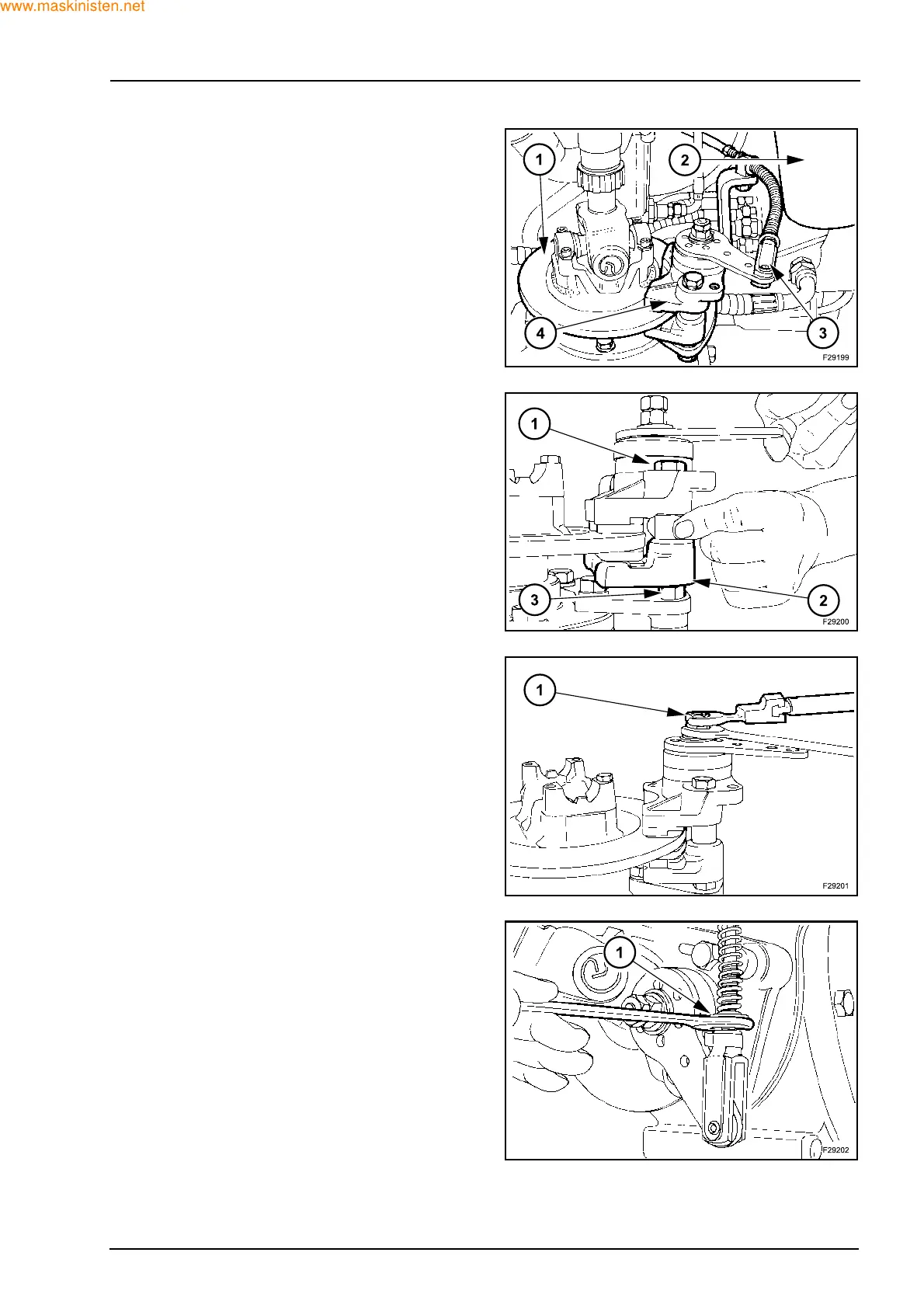

The parking brake is located on the transmission out-
put shaft on the 4x4 transmission and on the rear
axle on the 4x2 transmission.
The 4x2 transmission parking brake is located on the
rear axle brake disc splined to the pinion shaft (1),
hydraulic oil filter (2), parking brake cable (3), park-
ing brake caliper (4).
When refitting the caliper unit (2) insert the two
screws (1) through the caliper. It will be necessary to
apply Loctite 270 to the locknuts (3). Tighten the
screws while holding the locknuts. Once the screws
are tightened, torque the nuts to 150 Nm. Ensure that
the tubes can move.
Adjust the clearance between the brake pads and
disc to 0.5 mm using the nut and locknut (1).
Adjust the cable and lock the nut (1) to get 4-5 clicks
on the parking brake lever.
