SECTION 35 - HYDRAULIC SYSTEM 99

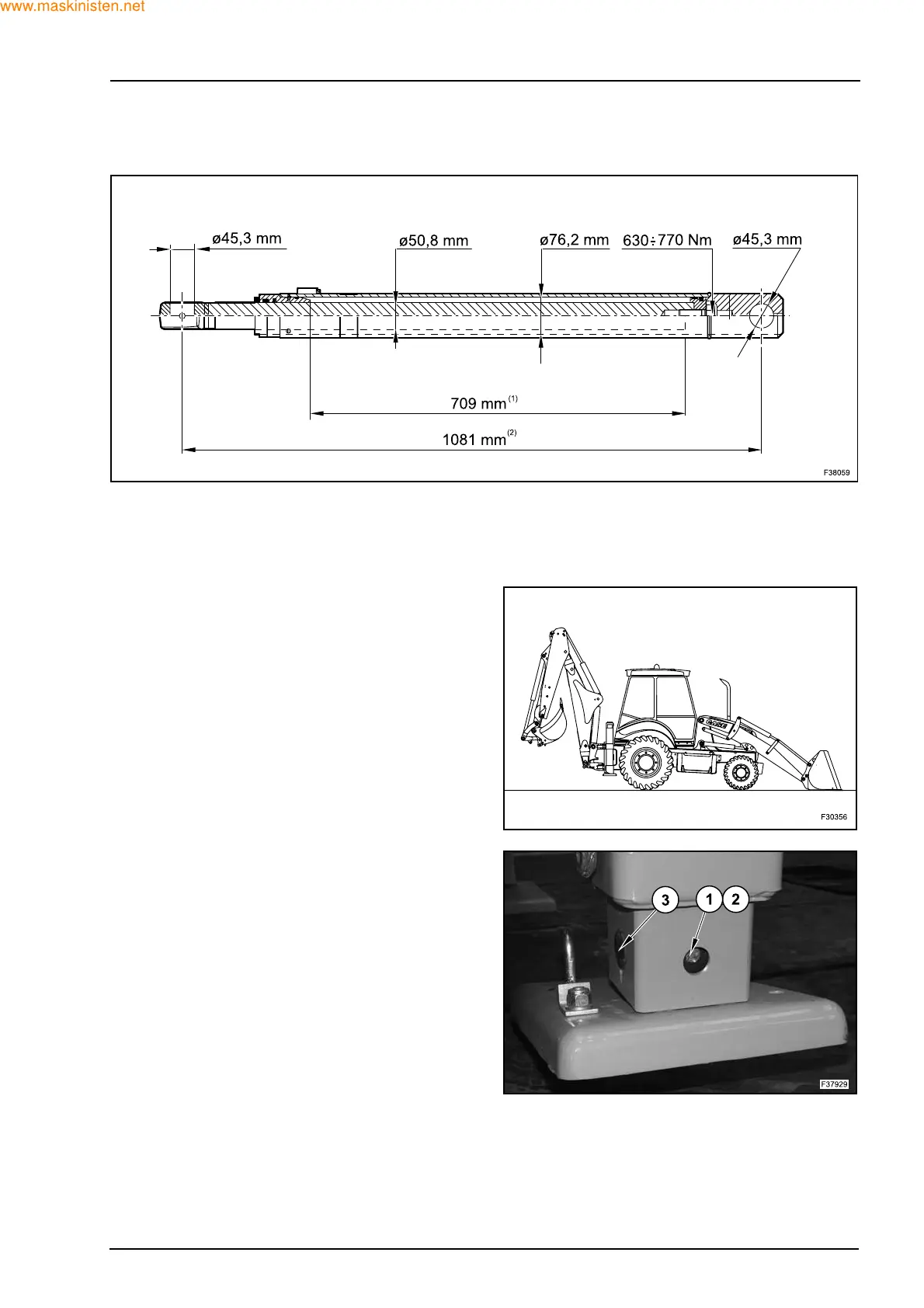

5.9 STABILIZER CYLINDER - SIDESHIFT
(1) Stroke
(2) Completely retracted
CYLINDER REMOVAL
Park the machine on a flat surface and position the
bucket on the ground.
Lower the stabilizers to the ground.
Relieve possible residual pressures in the system by
moving the loader attachment control lever through
all operating positions.
Loosen and remove the screw (1) and the nut (2).
Extract the pin (3) to release the cylinder rod.
