SECTION 35 - HYDRAULIC SYSTEM 87

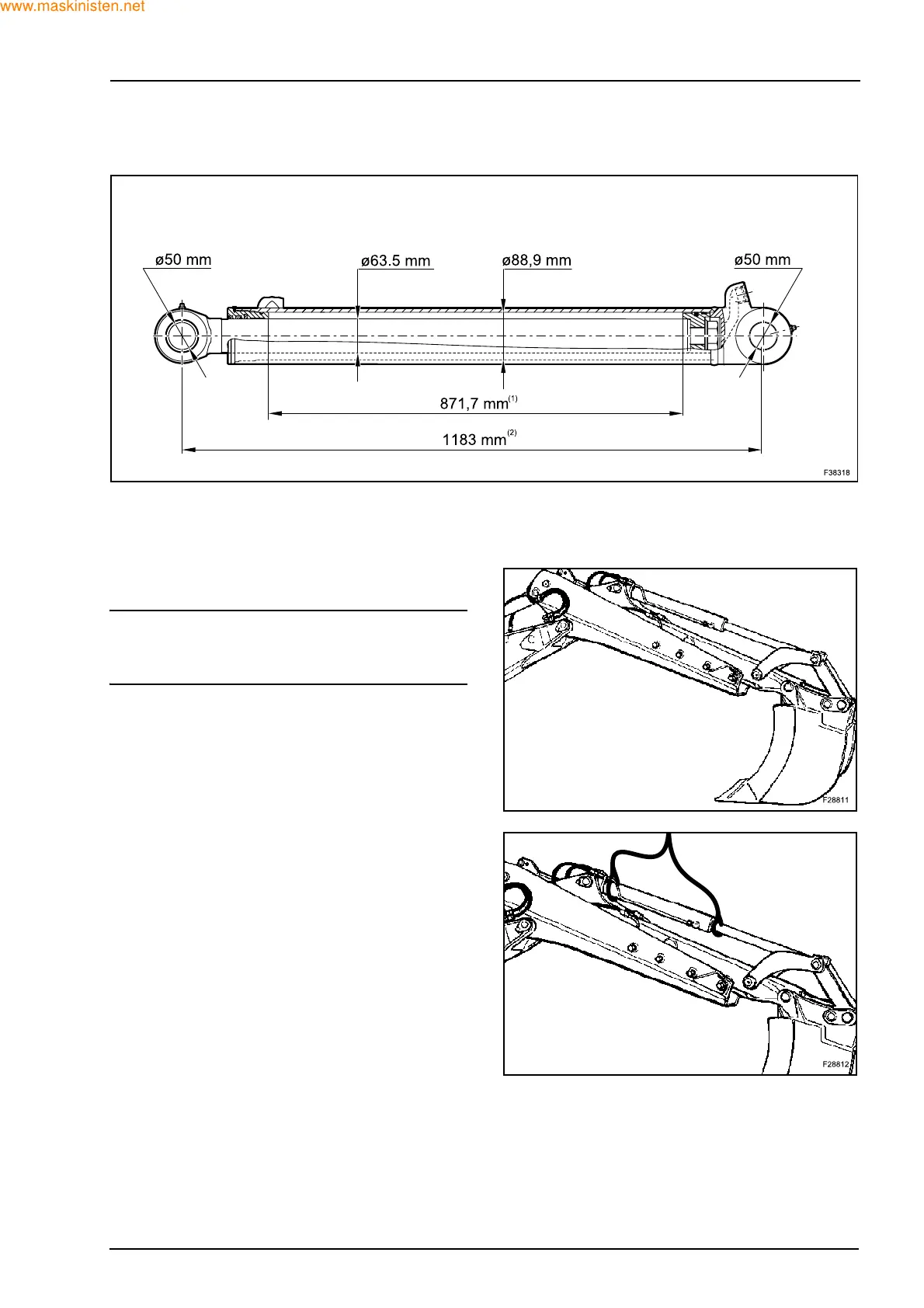

5.6 BACKHOE BUCKET CYLINDER
(1) Stroke
(2) Completely retracted
CYLINDER REMOVAL
Park the machine on a flat surface. Lay the backhoe
bucket firmly on the ground.
SWARNING
Always support the structural members so that they
will be stable and safe to work around.
Stop the engine and move the backhoe attachment
control levers through all operating positions to re-
lieve any residual pressures in the system.
Position a sling or other suitable lifting equipment
around the cylinder.
To Next Page
