Case 580SR+ - Components

SECTION 41 - STEERING SYSTEM 15

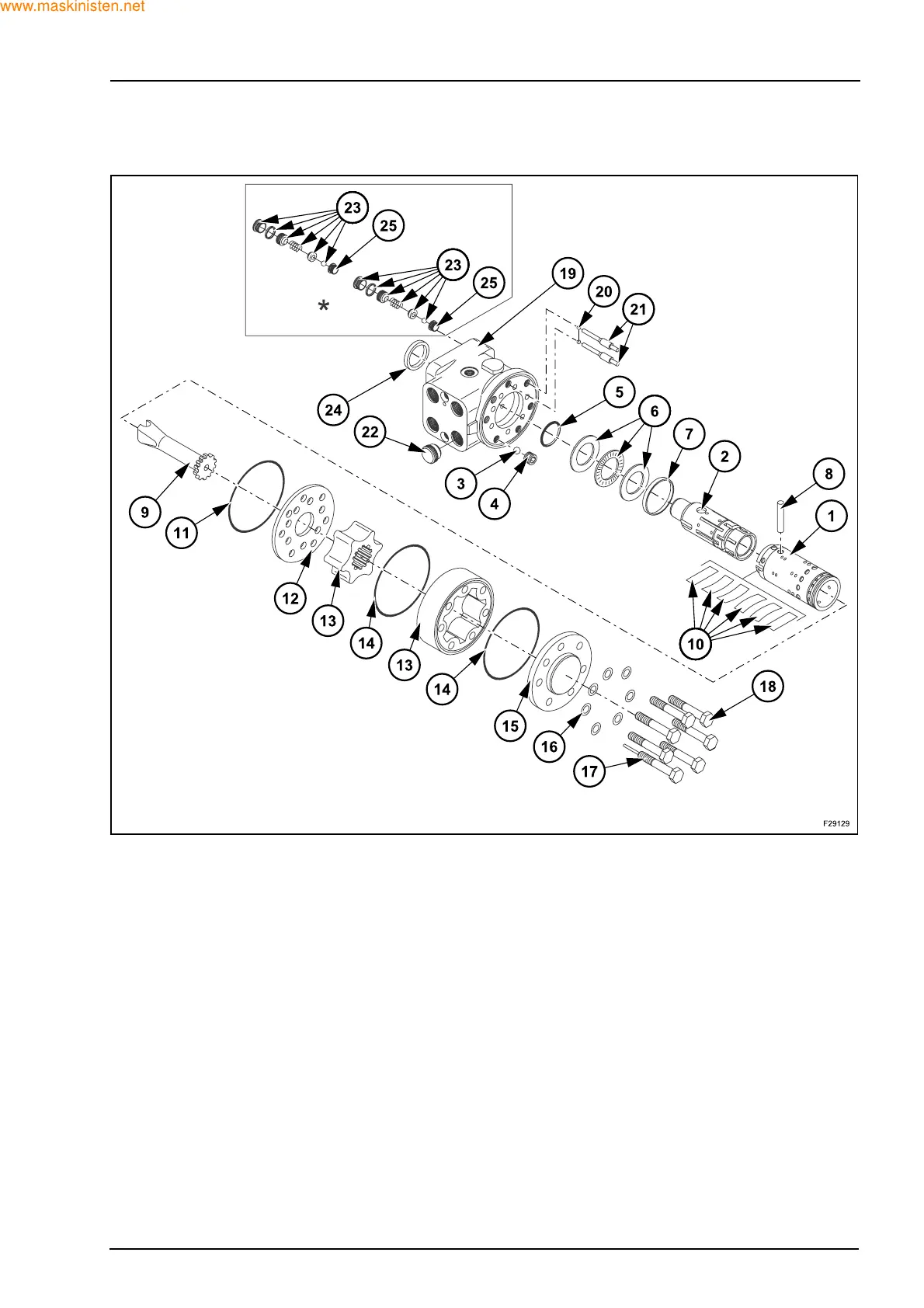

3.2 COMPONENTS
* Only with 4WS models
1. Sleeve
2. Spool
3. Ball
4. Thread bushing
5. O-ring
6. Bearing
7. Ring
8. Cross pin
9. Cardan shaft
10. Set of springs
11. O-ring
12. Distributor plate
13. Rotor/stator gear
14. O-ring
15. End cover
16. Washer
17. Special screw
18. Screw
19. Body
20. Ball
21. Pin
22. Check valve
23. Shock absorbing valve
24. Ring seal
25. Seat
