SECTION 35 - HYDRAULIC SYSTEM 95

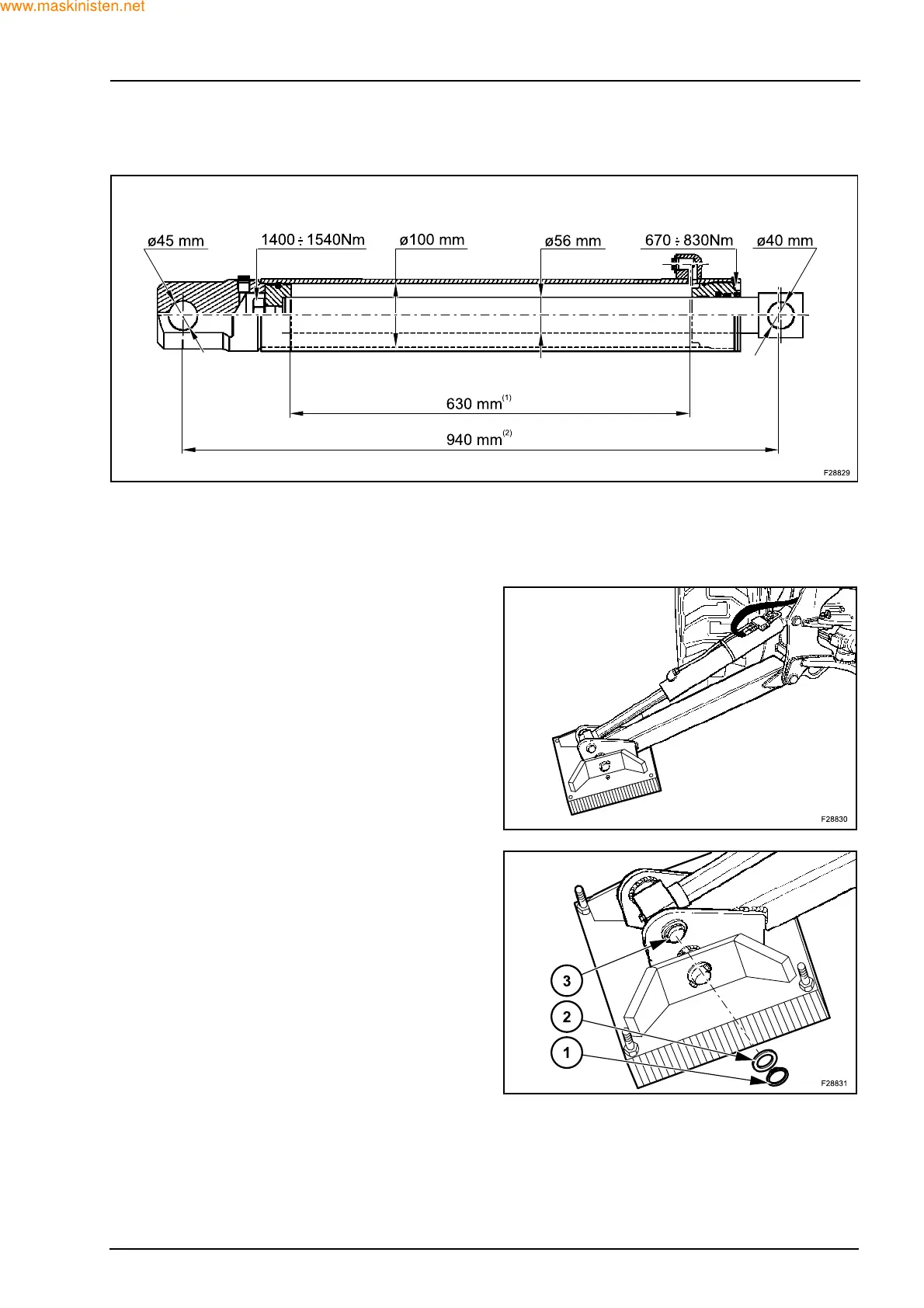

5.8 4WS STABILIZER CYLINDER - CENTER PIVOT
(1) Stroke
(2) Completely retracted
CYLINDER REMOVAL
Make sure that the backhoe loader is locked in the
transfer position or parked in a safety work position.
Lower the stabilizers to the ground.
Support the cylinder safely with suitable belt and
hoist.
Remove the snap ring (1) and the shim (2).
Extract the pin (3) with a hammer. Using the hydrau-
lic power, retract the cylinder very slowly.
